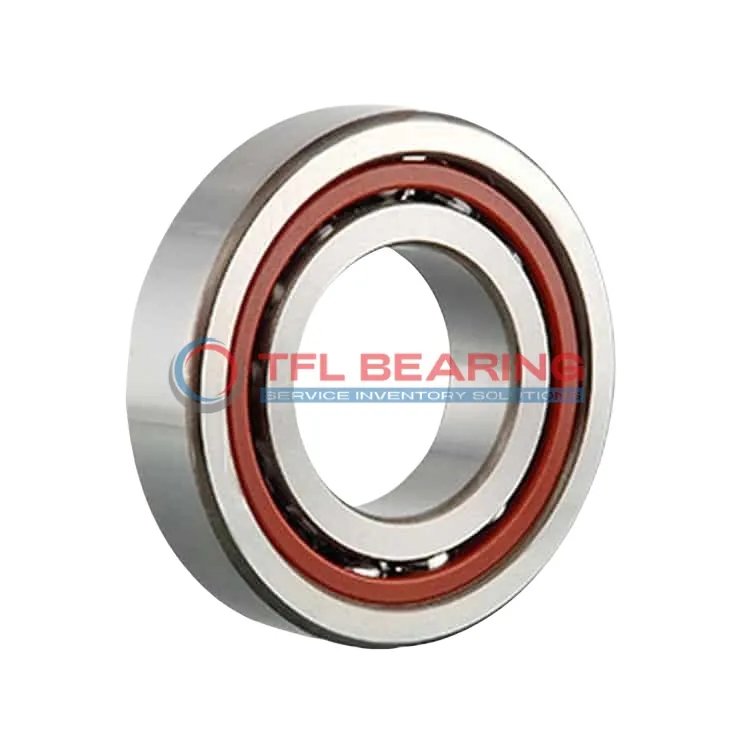

The 709 CD/P4A is a super precision angular contact ball bearing with a compact size of 9mm by 24mm by 7mm, crafted from high-quality chrome steel. It features a 15° contact angle and is designed for angular contact loads, handling up to 806 lbf dynamically.
With a maximum speed of 120,000 RPM, it spins smoothly and efficiently. The open design and phenolic cage ensure durability and easy maintenance, while the P4 tolerance class guarantees high precision.
This bearing is preloaded and interchangeable with SKF models, making it a versatile choice for replacements. Ideal for high-speed applications like spindles or precision tools where accuracy is key.
Weighing just 0.015kg, it’s lightweight yet robust. It operates well in temperatures from -30°C to 110°C, suitable for various industrial environments.
The bearing comes lubricated for immediate use, reducing setup time. Its 10-ball design ensures balanced performance, making it reliable for demanding tasks.
"*" indicates required fields
Performance Features of 709 CD/P4A Bearing
709 CD/P4A Bearing is designed with a 15° contact angle, optimising load distribution for angular contact applications.
Its chrome steel construction ensures durability and smooth operation under dynamic radial loads up to 806 lbf.
The phenolic cage maintains ball alignment, reducing friction and enhancing performance at high speeds.
With a maximum speed of 120,000 rpm, it is suitable for precision tasks requiring rapid rotation.
709 CD/P4A Bearing operates efficiently in temperatures ranging from -30° to 110°C.
Its P4 tolerance class guarantees high precision, making it ideal for demanding industrial applications.
The open design allows for easy lubrication, ensuring consistent performance over time.
This bearing’s compact size (9 mm×24 mm×7 mm) makes it versatile for various machinery setups.
Practical Applications of 709 CD/P4A Bearing
In industrial settings, 709 CD/P4A Bearing is commonly used in high-speed spindles and precision machine tools, where its 15° contact angle ensures accurate radial and axial load handling. The open design and phenolic cage make it suitable for environments requiring minimal friction.
Where Is 709 CD/P4A Bearing Used?
You’ll often find 709 CD/P4A Bearing in automotive applications like electric motors and transmissions, where its high-speed capability and P4 tolerance class enhance performance. Its compact size also makes it ideal for space-constrained designs.
Optimized for Performance: 709 CD/P4A Bearing
For medical imaging devices, 709 CD/P4A Bearing offers reliable operation thanks to its chrome steel construction and precise tolerances. The lubricated design ensures smooth rotation, critical for sensitive diagnostic equipment.
Automotive vs Aerospace: Applications of 709 CD/P4A Bearing
In automotive systems, 709 CD/P4A Bearing handles high-speed rotations in gearboxes, while in aerospace, its precision supports navigation instruments. The lightweight design and high RPM rating make it versatile across both fields.
Perfect Fit for Automation: 709 CD/P4A Bearing
Robotic arms and 3D printers benefit from 709 CD/P4A Bearing’s low friction and high-speed performance. The phenolic cage reduces wear, ensuring longevity in continuous operation scenarios.
