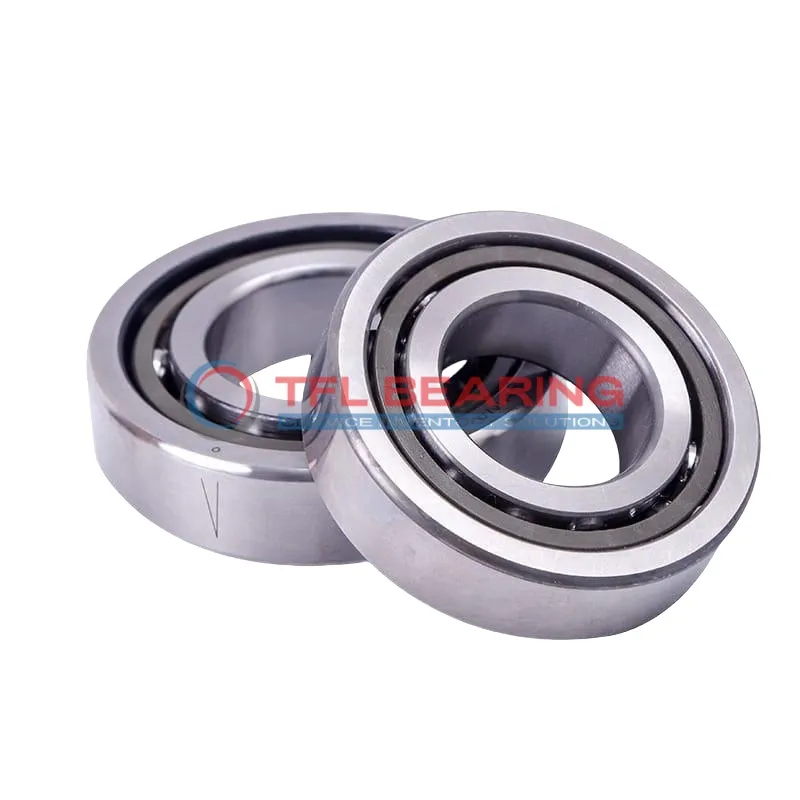

The 7016 FEGA/P4A is a super precision angular contact ball bearing with an 80mm bore and 125mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 7605 lbf and operates smoothly at speeds up to 28,000 RPM.
Its 18° contact angle and extra-light preload ensure precise performance, while the phenolic cage offers quiet operation. The open design allows for easy lubrication and maintenance.
This bearing is ideal for high-speed applications like machine tool spindles or precision instruments. It can be arranged in back-to-back, face-to-face, or tandem configurations for versatile use.
Weighing 0.86kg, it meets P4A tolerance standards for exceptional accuracy. Compliant with temperatures from -30°C to 110°C, it’s a reliable choice for demanding environments.
"*" indicates required fields
Performance Features of 7016 FEGA/P4A Bearing
7016 FEGA/P4A Bearing is designed with a precise 18° contact angle, ensuring optimal performance in angular contact applications.
The chrome steel rings and balls provide strong resistance to radial loads, with a dynamic capacity of 7605 lbf.
Its phenolic cage maintains ball alignment, reducing friction and wear during high-speed operation.
With a maximum speed of 28,000 rpm, it delivers reliable performance in demanding conditions.
The extra light preload (Class A) ensures smooth operation, making it suitable for precision tasks.
7016 FEGA/P4A Bearing operates efficiently within a temperature range of -30°C to 110°C.
Key Fields for 7016 FEGA/P4A Bearing
7016 FEGA/P4A Bearing is widely used in high-speed machine tools, where its precision and angular contact design ensure accurate spindle rotation. The open seal type allows for efficient lubrication, extending service life in demanding conditions.
In robotics, 7016 FEGA/P4A Bearing supports articulated arms, providing smooth movement and low friction. Its phenolic cage material reduces weight while maintaining strength, ideal for repetitive motions.
For aerospace applications, 7016 FEGA/P4A Bearing handles radial and axial loads in components like landing gear systems. The P4A tolerance class guarantees consistent performance under extreme temperatures and pressures.
In medical imaging devices, 7016 FEGA/P4A Bearing’s chrome steel construction ensures reliability during high-speed rotations. The extra light preload minimises vibration, crucial for clear diagnostic results.
Automotive testing equipment benefits from 7016 FEGA/P4A Bearing’s dynamic load capacity, particularly in dynamometers. Its universal matching capability allows flexible configurations for different testing scenarios.
