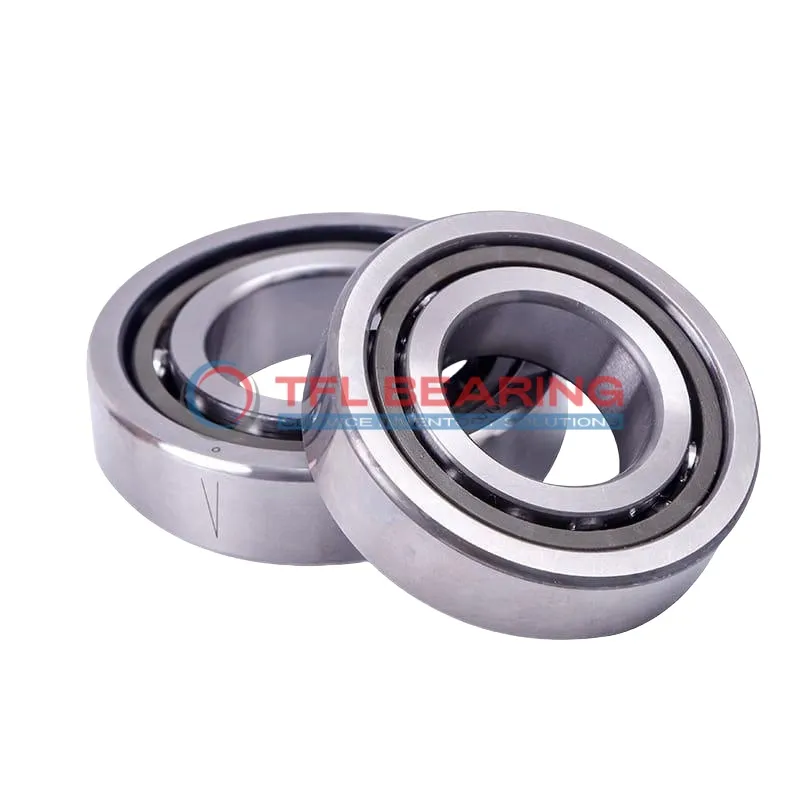

The 7016 CE/P4AQBCA is a super precision angular contact ball bearing with an 80mm bore and 125mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 20340 lbf and spins smoothly at speeds up to 28000 RPM.
Its 15° contact angle and matched set of four bearings provide excellent stability for high-precision applications. The phenolic cage ensures quiet operation and long service life.
This bearing is lubricated for easy maintenance and operates in temperatures from -30°C to 110°C. It meets the P4A tolerance class for exceptional accuracy.
Ideal for machine tools or spindle drives where precision and reliability are key. The set of four bearings works together to manage complex loads efficiently.
Weighing 3.42kg, it’s robust yet designed for high-speed performance. Interchangeable with SKF bearings for convenient replacements.
"*" indicates required fields
Performance Features of 7016 CE/P4AQBCA Bearing
7016 CE/P4AQBCA Bearing is designed with a 15° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and balls ensure durability and resistance to wear under high dynamic radial loads of 20340 lbf.
The phenolic cage maintains ball alignment, reducing friction and enhancing smooth operation at speeds up to 28,000 rpm.
With a precision tolerance class of P4A, it delivers consistent performance in demanding conditions.
7016 CE/P4AQBCA Bearing operates efficiently within a temperature range of -30°C to 110°C, suitable for various environments.
Its matched arrangement of four bearings ensures stability and reliability in complex applications.
The extra light preload (Class A) minimises vibration, making it ideal for high-precision machinery.
Lubrication is pre-applied, simplifying initial setup and reducing maintenance needs.
Industrial Uses of 7016 CE/P4AQBCA Bearing
7016 CE/P4AQBCA Bearing is commonly used in high-speed machine spindles, where its precision and angular contact design ensure smooth rotation. The phenolic cage reduces friction, making it ideal for applications requiring minimal heat generation.
In automotive systems, 7016 CE/P4AQBCA Bearing supports components like wheel hubs and transmissions, handling both radial and axial loads efficiently. Its extra light preload helps maintain performance under varying driving conditions.
For automation equipment, 7016 CE/P4AQBCA Bearing’s matched arrangement of four bearings provides stability in robotic arms and CNC machines. The P4A tolerance class ensures consistent accuracy in repetitive tasks.
Medical imaging devices benefit from 7016 CE/P4AQBCA Bearing’s low vibration and high-speed capabilities. The chrome steel construction offers durability in critical diagnostic equipment.
In consumer electronics, 7016 CE/P4AQBCA Bearing can be found in high-performance fans and printers, where its quiet operation and reliability are valued. The lubricated design ensures long service life even with frequent use.
