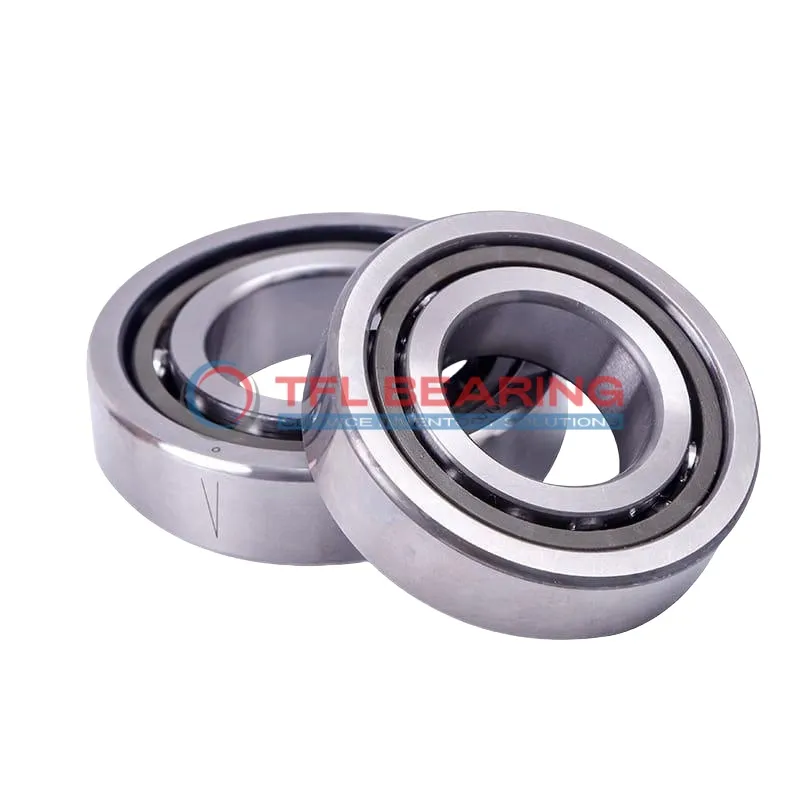

The 7016 CE/P4ADGA is a super precision angular contact ball bearing with an 80mm bore and 125mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 12442 lbf and operates smoothly at high speeds up to 28000 RPM.
Its 15° contact angle and universal matching design allow flexible arrangements like back-to-back or face-to-face mounting. The phenolic cage ensures quiet operation and long service life.
This bearing is ideal for precision applications like machine tool spindles or high-speed robotics. It works reliably in temperatures from -30°C to 110°C and comes pre-lubricated for easy installation.
Weighing 1.71kg, it’s robust yet manageable for its size. Compliant with P4A tolerance standards, it’s interchangeable with SKF bearings for seamless replacements.
"*" indicates required fields
Performance Features of 7016 CE/P4ADGA Bearing
7016 CE/P4ADGA Bearing is designed with a 15° contact angle, ideal for handling combined radial and axial loads.
Its chrome steel rings and balls ensure durability and precision in high-speed applications.
The phenolic cage in 7016 CE/P4ADGA Bearing reduces friction and noise, enhancing operational smoothness.
With a maximum speed of 28,000 rpm, it excels in demanding environments.
7016 CE/P4ADGA Bearing’s universal matching allows flexible arrangement options like back-to-back or face-to-face.
This feature provides versatility for various mounting requirements.
The extra light preload in 7016 CE/P4ADGA Bearing ensures minimal friction and optimal performance.
Its P4A tolerance class guarantees high precision and reliability.
7016 CE/P4ADGA Bearing operates efficiently within a temperature range of -30°C to 110°C.
This makes it suitable for diverse industrial applications.
Industrial Uses of 7016 CE/P4ADGA Bearing
7016 CE/P4ADGA Bearing is commonly used in high-precision machine tools, where its 15° contact angle ensures accurate radial and axial load handling. The universal matching design allows flexible arrangements like back-to-back or face-to-face setups.
In automotive applications, 7016 CE/P4ADGA Bearing supports high-speed spindle systems in electric motors and transmissions. Its phenolic cage reduces friction, making it suitable for demanding driving conditions.
For robotics, 7016 CE/P4ADGA Bearing’s P4A tolerance class provides the precision needed for smooth motion in robotic arms. The chrome steel construction ensures durability even in continuous operation.
Medical imaging devices benefit from 7016 CE/P4ADGA Bearing’s low vibration and high-speed capabilities. The lubricated design maintains performance in sensitive environments like MRI machines.
In aerospace, 7016 CE/P4ADGA Bearing handles both radial and thrust loads in avionics systems. Its lightweight phenolic cage contributes to fuel efficiency without compromising strength.
