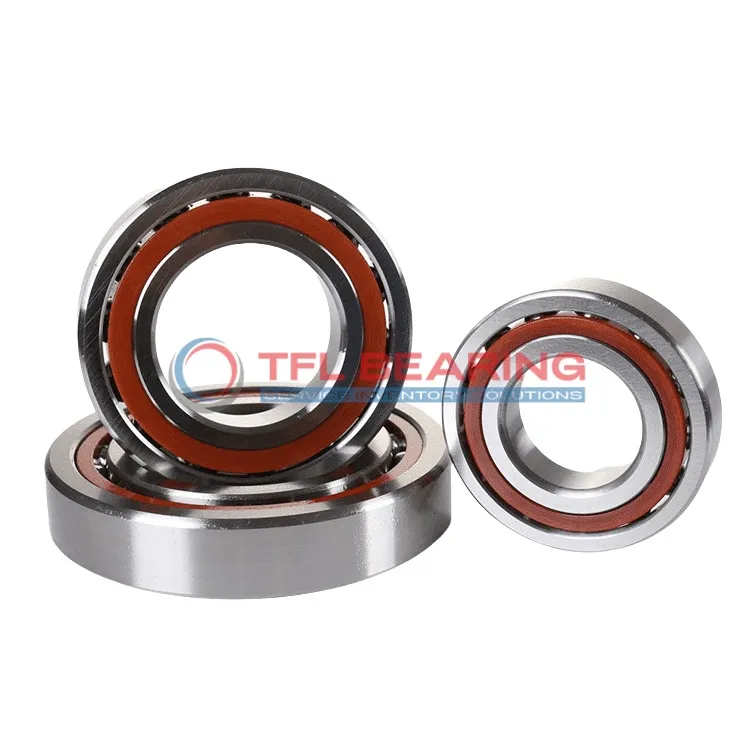

The 7016 CE/P4A is a super precision angular contact ball bearing with an 80mm bore and 125mm outer diameter, crafted from high-quality chrome steel. It supports radial loads up to 7605 lbf and operates smoothly at speeds up to 24,000 RPM.
Its 15° contact angle and phenolic cage ensure stable performance under angular loads, while the open design allows for easy lubrication. The bearing works reliably in temperatures ranging from -30°C to 110°C.
This model meets the P4 tolerance class (ABEC-7), making it suitable for high-precision applications like machine tools or spindle drives. Weighing 0.86kg, it balances durability with manageable size.
Interchangeable with SKF bearings, it’s a practical choice for replacements or upgrades in demanding industrial settings.
"*" indicates required fields
Performance Features of 7016 CE/P4A Bearing
7016 CE/P4A Bearing is crafted with a 15° contact angle, optimising load distribution for angular contact applications.
Its chrome steel construction ensures durability and resistance to wear under high dynamic radial loads of 7605 lbf.
The phenolic cage in 7016 CE/P4A Bearing maintains ball alignment, reducing friction and enhancing operational smoothness.
With a maximum speed of 24,000 rpm, it delivers reliable performance in high-speed scenarios.
7016 CE/P4A Bearing operates efficiently within a temperature range of -30° to 110°C, suitable for varied environments.
Its precision P4 tolerance class ensures consistent performance in demanding applications.
The open design of 7016 CE/P4A Bearing allows for easy lubrication, extending maintenance intervals.
Weighing just 0.86 kg, it offers a balance of strength and lightweight construction.
Key Fields for 7016 CE/P4A Bearing
7016 CE/P4A Bearing is commonly used in high-precision machine tools, where its angular contact design ensures accurate spindle rotation. The open seal type allows for efficient lubrication, extending service life in demanding conditions.
In robotics, 7016 CE/P4A Bearing provides smooth motion control for articulated arms, thanks to its phenolic cage reducing friction. Its 15° contact angle makes it suitable for combined radial and axial loads.
For medical imaging devices, 7016 CE/P4A Bearing’s P4 tolerance class delivers the quiet operation needed for sensitive diagnostics. The chrome steel construction maintains performance even with frequent sterilisation cycles.
Automotive testing equipment benefits from 7016 CE/P4A Bearing’s ability to handle high rotational speeds up to 24,000 rpm. The preload availability helps maintain precision during extended operation periods.
