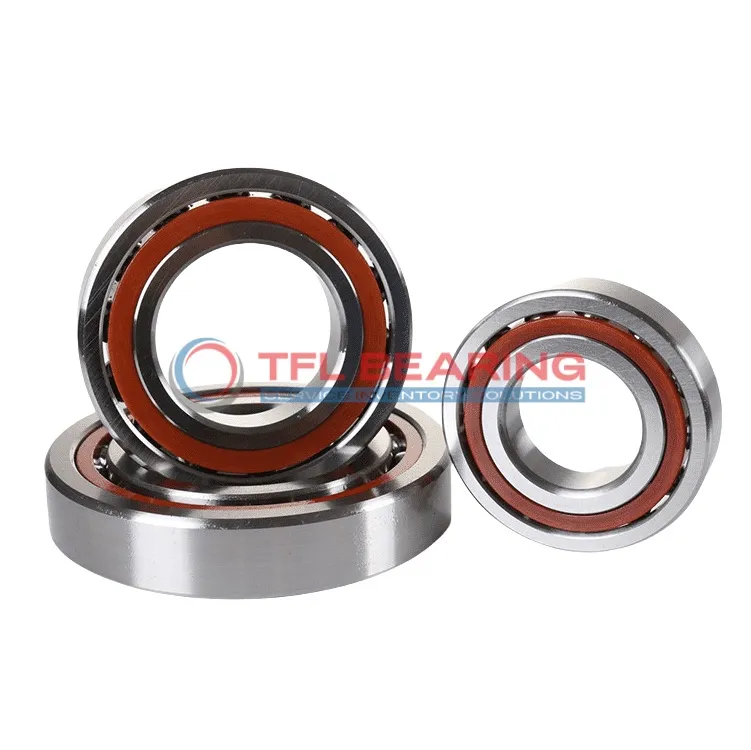

The 7016 CDGD/P4A is a super precision angular contact ball bearing with an 80mm bore and 125mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 14625 lbf and operates smoothly at speeds up to 17000 RPM.
Its 15° contact angle and heavy preload (Class D) ensure stable performance under angular loads. The open design and phenolic cage make it easy to maintain while offering long service life.
This bearing is ideal for high-precision applications like machine tool spindles or industrial pumps. It works in temperatures from -30°C to 110°C and comes lubricated for immediate use.
Weighing 0.85kg, it’s robust yet manageable. Compatible with SKF bearings and available in matched sets for back-to-back, face-to-face, or tandem arrangements.
"*" indicates required fields
Performance Features of 7016 CDGD/P4A Bearing
7016 CDGD/P4A Bearing is designed with a 15° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and balls ensure durability, while the phenolic cage reduces friction and wear.
With a dynamic radial load capacity of 14625 lbf, it handles demanding conditions reliably.
The P4A tolerance class guarantees high precision, making it suitable for critical applications.
Industrial Uses of 7016 CDGD/P4A Bearing
7016 CDGD/P4A Bearing is commonly used in high-precision machine tools, where its angular contact design ensures accurate spindle rotation. The heavy preload and P4A tolerance class make it suitable for applications demanding minimal deflection.
In automotive systems, 7016 CDGD/P4A Bearing supports high-speed components like turbochargers and electric motors. Its chrome steel construction and phenolic cage provide durability and stability under heavy radial loads.
For automation equipment, 7016 CDGD/P4A Bearing excels in robotic arms and CNC machinery, thanks to its ability to handle combined loads. The open design allows for easy lubrication, extending service life in continuous operation.
Medical imaging devices benefit from 7016 CDGD/P4A Bearing’s precision and smooth operation. The temperature stability ensures reliable performance in sensitive diagnostic equipment.
In aerospace applications, 7016 CDGD/P4A Bearing is valued for its high-speed capabilities and consistent performance. The universal matching option simplifies installation in complex assemblies.
