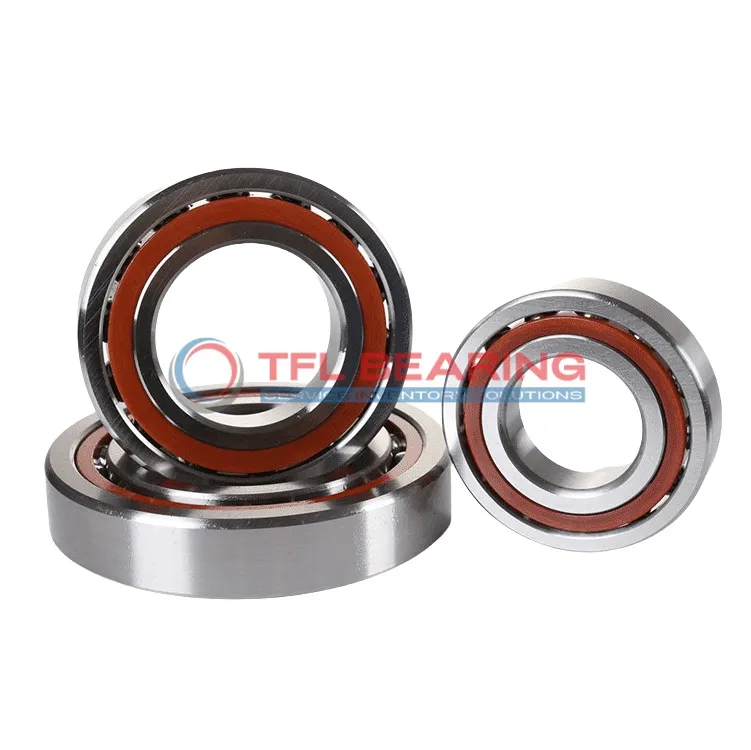

The 7016 CD/P4ADT is a super precision angular contact ball bearing with an 80mm bore and 125mm outer diameter, crafted from high-quality chrome steel. It handles radial loads up to 23850 lbf and operates smoothly at speeds up to 28000 RPM.
Its 15° contact angle and matched pair design (DT arrangement) provide excellent stability under angular loads. The phenolic cage ensures quiet operation and durability, even at high speeds.
Preloaded for precision, this bearing is ideal for applications like machine tool spindles or high-speed robotics. It performs reliably in temperatures from -30°C to 110°C.
Weighing 1.71kg, this SKF-interchangeable model meets P4A tolerance standards for demanding industrial use. The open design allows for easy lubrication maintenance.
"*" indicates required fields
How Is 7016 CD/P4ADT Bearing Engineered for Reliability?
7016 CD/P4ADT Bearing features a 15° contact angle, optimised for handling combined radial and axial loads.
The chrome steel rings and balls ensure durability, while the phenolic cage reduces friction and wear.
With a dynamic radial load capacity of 23850 lbf, it performs reliably in high-stress applications.
Its P4A tolerance class guarantees precision, making it suitable for demanding machinery.
The matched arrangement of two bearings enhances stability and load distribution.
Lubrication is pre-applied, ensuring smooth operation right from installation.
Operating temperatures range from -30°C to 110°C, accommodating various environments.
A maximum speed of 28,000 rpm allows for efficient high-speed performance.
Industrial Uses of 7016 CD/P4ADT Bearing
This bearing is commonly used in high-precision machine tools, where its angular contact design ensures accurate spindle rotation. The matched arrangement of two bearings provides stability in demanding industrial environments.
What Makes 7016 CD/P4ADT Bearing a Preferred Choice?
Its phenolic cage and chrome steel construction make it suitable for high-speed applications like CNC machinery. The P4A tolerance class ensures consistent performance under heavy radial loads.
Built for Heavy-Duty Use: 7016 CD/P4ADT Bearing
In automotive applications, this bearing supports gearbox systems, handling both radial and axial loads efficiently. The lubricated design reduces friction, extending service life in high-performance vehicles.
Medical vs Industrial: Where 7016 CD/P4ADT Bearing Excels
While it performs well in industrial settings, its precision also benefits medical imaging devices. The open seal type allows for easy maintenance in sensitive equipment.
Automation & Robotics Applications of 7016 CD/P4ADT Bearing
This bearing is ideal for robotic arms, providing smooth movement and high load capacity. The 15° contact angle ensures optimal performance in dynamic automation systems.
