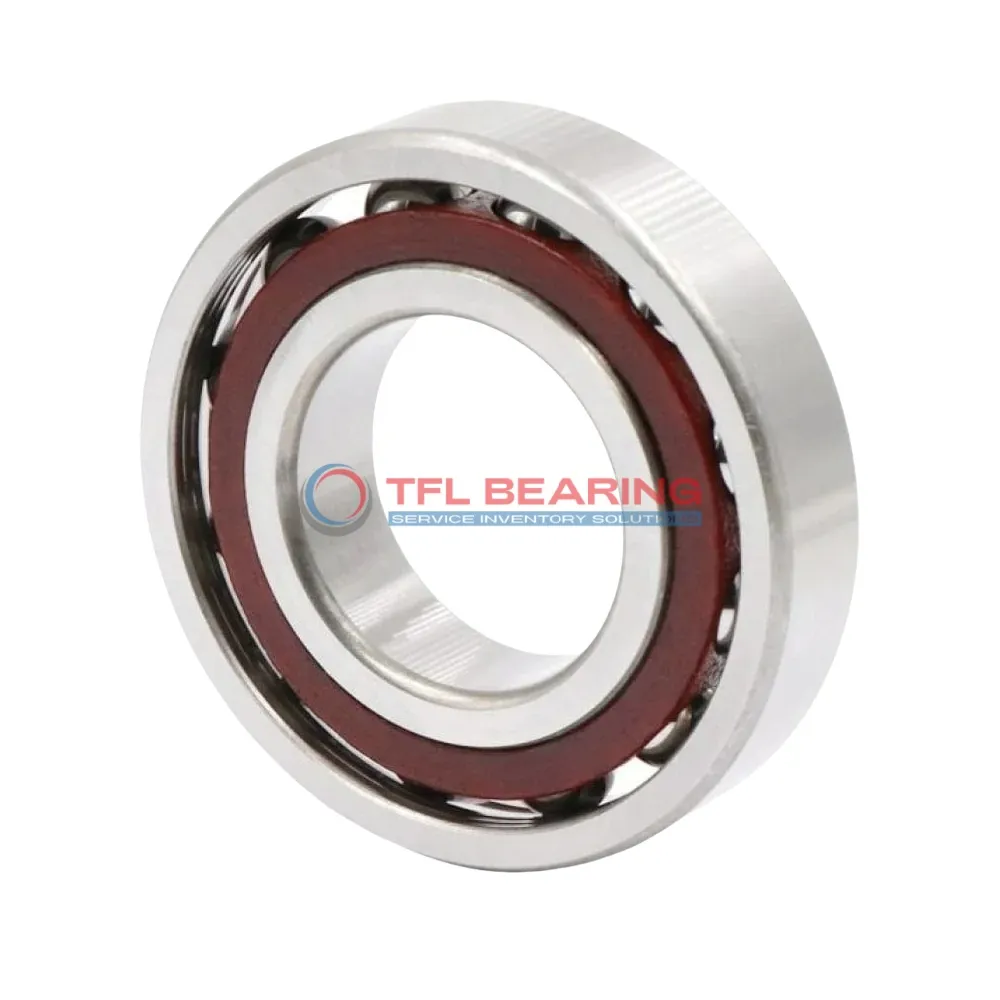

The 7016 ACD/HCP4AQBCB is a super precision angular contact ball bearing with an 80mm bore and 125mm outer diameter, crafted from durable chrome steel. It features a 25° contact angle and comes in a matched set of four bearings for balanced performance.
With a dynamic radial load capacity of 37125 lbf and a max speed of 28000 RPM, it handles high-speed applications smoothly. The ceramic balls and phenolic cage reduce friction, enhancing longevity.
Its open design allows easy lubrication, while the P4A tolerance class ensures precise operation. Ideal for machine tools or spindles where accuracy and speed are crucial.
The set weighs 2.84kg and operates in temperatures from -30°C to 110°C. Interchangeable with SKF bearings, it’s a reliable choice for precision engineering needs.
"*" indicates required fields
How Does 7016 ACD/HCP4AQBCB Bearing Achieve High-Speed Performance?
7016 ACD/HCP4AQBCB Bearing features ceramic balls, reducing friction and enabling smooth operation at high speeds.
Its phenolic cage ensures stability, even under dynamic radial loads up to 37125 lbf.
With a maximum speed of 28,000 rpm, this bearing is ideal for precision applications.
The chrome steel rings enhance durability, while the 25° contact angle optimises load distribution.
7016 ACD/HCP4AQBCB Bearing operates efficiently within a temperature range of -30°C to 110°C.
Its matched arrangement of four bearings ensures consistent performance in demanding conditions.
Industrial Uses of 7016 ACD/HCP4AQBCB Bearing
This bearing is commonly used in high-speed machine spindles, where its ceramic balls and phenolic cage reduce friction and heat buildup. The P4A tolerance ensures precise alignment for demanding industrial applications.
In robotics, 7016 ACD/HCP4AQBCB Bearing provides smooth motion control in articulated arms, thanks to its angular contact design. The light preload setting helps maintain accuracy during repetitive movements.
For aerospace components, 7016 ACD/HCP4AQBCB Bearing handles both radial and axial loads in turbine systems. Its matched set configuration offers consistent performance across multiple bearing positions.
Medical imaging devices benefit from 7016 ACD/HCP4AQBCB Bearing’s quiet operation and minimal vibration. The chrome steel rings provide durability while maintaining precision in sensitive equipment.
Automotive testing equipment relies on 7016 ACD/HCP4AQBCB Bearing for its high-speed capabilities and temperature stability. The lubricated design ensures long service life even under continuous use.
