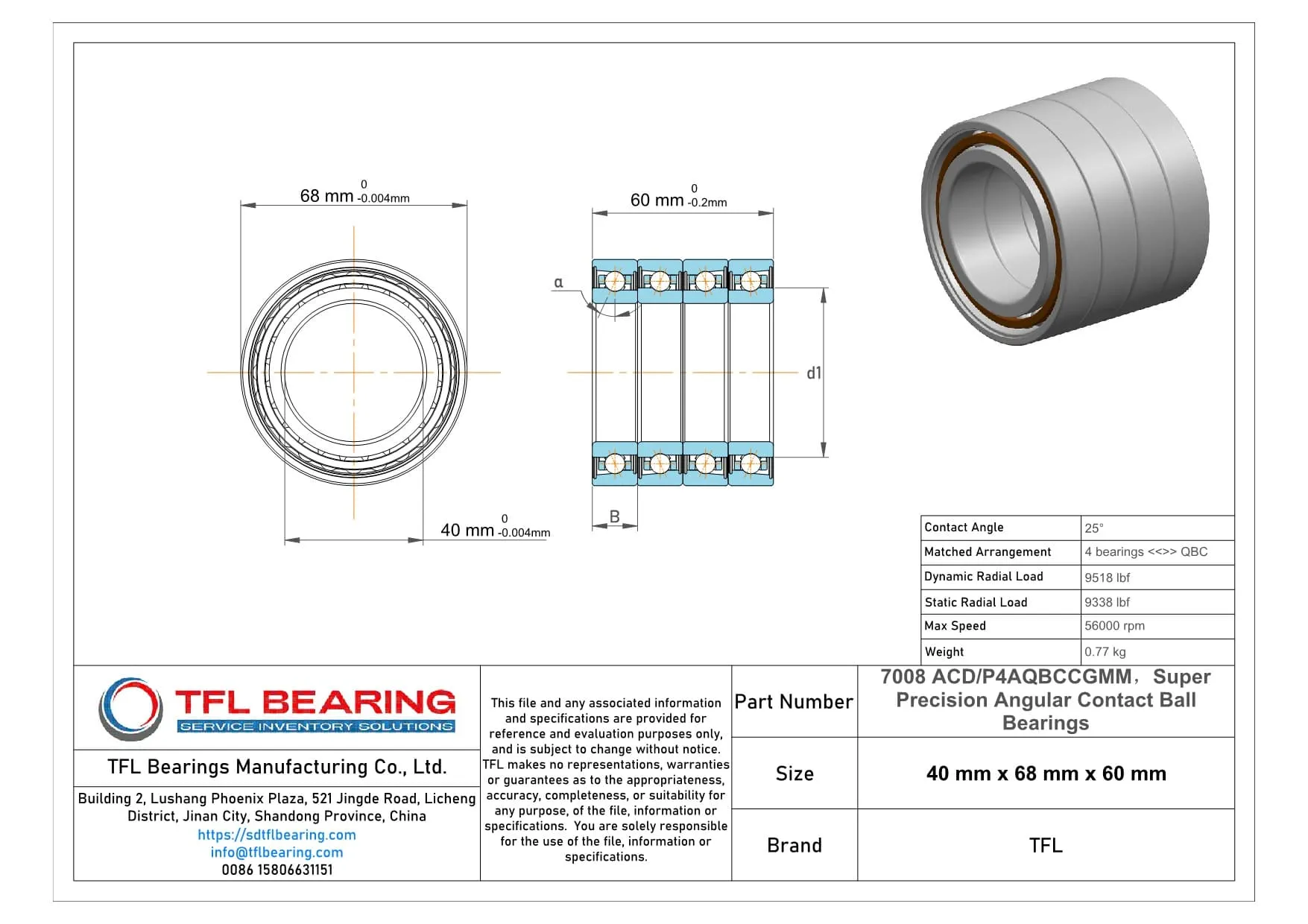

The 7008 ACD/P4AQBCCGMM is a super precision angular contact ball bearing with a 40mm bore and 68mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 9518 lbf and operates smoothly at high speeds up to 56,000 RPM.
With a 25° contact angle and moderate preload, it offers excellent stability for angular loads. The phenolic cage ensures quiet operation and long service life, even in demanding conditions.
This bearing comes in a matched set of four, arranged for balanced performance. Ideal for precision machinery like spindles or CNC equipment where accuracy is key.
It works well in temperatures from -30°C to 110°C and is lubricated with grease for easy maintenance. Weighing 0.77kg, it’s a reliable choice for high-performance applications.
"*" indicates required fields
Performance Features of 7008 ACD/P4AQBCCGMM Bearing
7008 ACD/P4AQBCCGMM Bearing is designed with a 25° contact angle, optimising load distribution for precision applications.
Its chrome steel rings and balls ensure durability and smooth operation under high radial loads.
The phenolic cage maintains ball alignment, reducing friction and wear during high-speed rotation.
With a maximum speed of 56,000 rpm, it delivers reliable performance in demanding conditions.
7008 ACD/P4AQBCCGMM Bearing’s moderate preload (Class C) enhances stability and reduces vibration.
Its matched arrangement of four bearings ensures consistent performance in angular contact applications.
The grease lubrication system simplifies maintenance while extending service life.
Operating between -30°C to 110°C, it adapts to various environmental conditions.
Industrial Uses of 7008 ACD/P4AQBCCGMM Bearing
7008 ACD/P4AQBCCGMM Bearing is commonly used in high-precision machine tools, where its moderate preload and angular contact design ensure accurate spindle performance. The phenolic cage reduces friction, making it suitable for continuous operation in demanding environments.
In robotics, 7008 ACD/P4AQBCCGMM Bearing supports articulated arms, providing smooth motion and reliability. Its matched arrangement of four bearings enhances stability, which is crucial for repetitive tasks.
For automotive applications, 7008 ACD/P4AQBCCGMM Bearing fits well in gearboxes and differential systems, handling both radial and axial loads efficiently. The chrome steel construction offers durability under high-speed conditions.
Medical imaging devices benefit from 7008 ACD/P4AQBCCGMM Bearing’s precision, ensuring minimal vibration during scans. The open design allows for easy lubrication, maintaining performance over time.
In automation systems, 7008 ACD/P4AQBCCGMM Bearing is ideal for conveyor belts and rotary tables, where its P4A tolerance class guarantees consistent operation. The grease lubrication further extends its service life in dusty environments.
