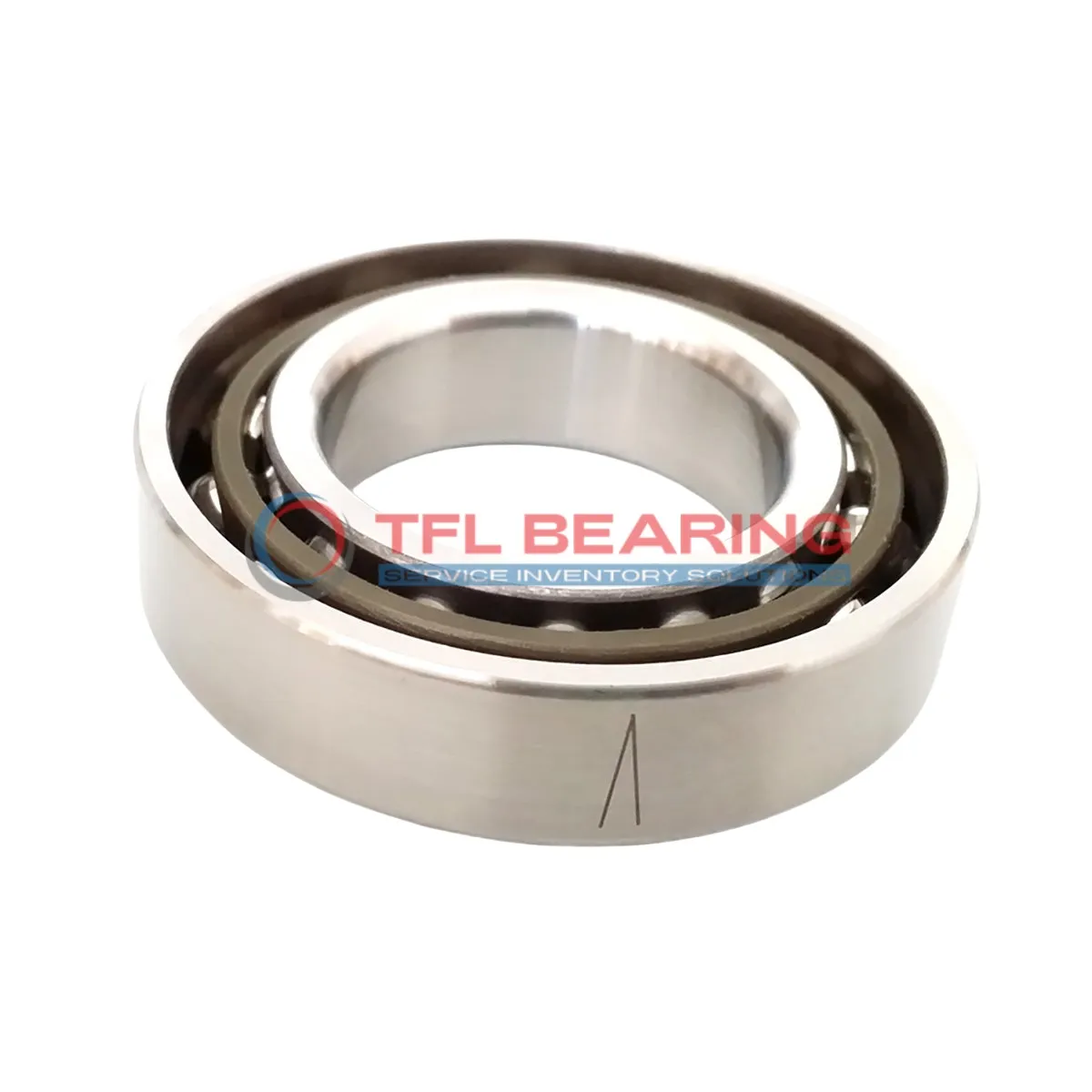

The 7007 CE/P4ATBTB is a super precision angular contact ball bearing with a 35mm bore and 62mm outer diameter, crafted from durable chrome steel. It features a 15° contact angle and comes in a matched set of three bearings for balanced performance.
This bearing handles radial loads up to 5558 lbf and operates smoothly at speeds up to 56,000 RPM. Its phenolic cage ensures quiet running and long service life, even under light preload conditions.
The open design allows for easy lubrication, making maintenance straightforward. It performs reliably in temperatures ranging from -30°C to 110°C.
Ideal for high-precision applications like machine tool spindles or high-speed motors, where accuracy and stability are key. Weighing 0.45kg, it offers a robust yet lightweight solution. Compliant with P4A tolerance standards for exceptional precision.
"*" indicates required fields
Performance Features of 7007 CE/P4ATBTB Bearing
7007 CE/P4ATBTB Bearing is designed with a 15° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and balls enhance durability, supporting dynamic radial loads up to 5558 lbf.
The phenolic cage ensures smooth operation at high speeds, reaching up to 56,000 rpm.
This bearing set includes three matched units, providing balanced performance in demanding conditions.
7007 CE/P4ATBTB Bearing operates efficiently within a temperature range of -30°C to 110°C.
Its precision P4A tolerance class guarantees reliable performance in high-accuracy applications.
With 17 balls of 7.144 mm diameter, it ensures even load distribution and reduced friction.
The open design allows for easy lubrication, maintaining optimal performance over time.
Industrial Uses of 7007 CE/P4ATBTB Bearing
7007 CE/P4ATBTB Bearing is commonly used in high-precision machine tools, where its angular contact design ensures accurate spindle rotation. The matched set arrangement of three bearings provides added stability for demanding industrial applications.
How Does 7007 CE/P4ATBTB Bearing Improve Performance?
In automotive systems, 7007 CE/P4ATBTB Bearing enhances gearbox efficiency by handling combined radial and axial loads smoothly. Its phenolic cage reduces friction, making it ideal for high-speed operations.
Built for Heavy-Duty Use: 7007 CE/P4ATBTB Bearing
For robotics and automation, 7007 CE/P4ATBTB Bearing offers reliable performance in robotic arms and CNC machines. The P4A tolerance class ensures consistent precision even under heavy loads.
Medical vs Industrial: Where 7007 CE/P4ATBTB Bearing Excels
In medical imaging devices, 7007 CE/P4ATBTB Bearing’s chrome steel construction ensures durability and smooth operation. Meanwhile, in industrial settings, its light preload and high-speed capability make it a versatile choice.
Practical Applications of 7007 CE/P4ATBTB Bearing
7007 CE/P4ATBTB Bearing is a go-to for 3D printers, where its precision and low friction contribute to high-quality prints. The open design allows for easy lubrication, extending its service life in continuous use.
