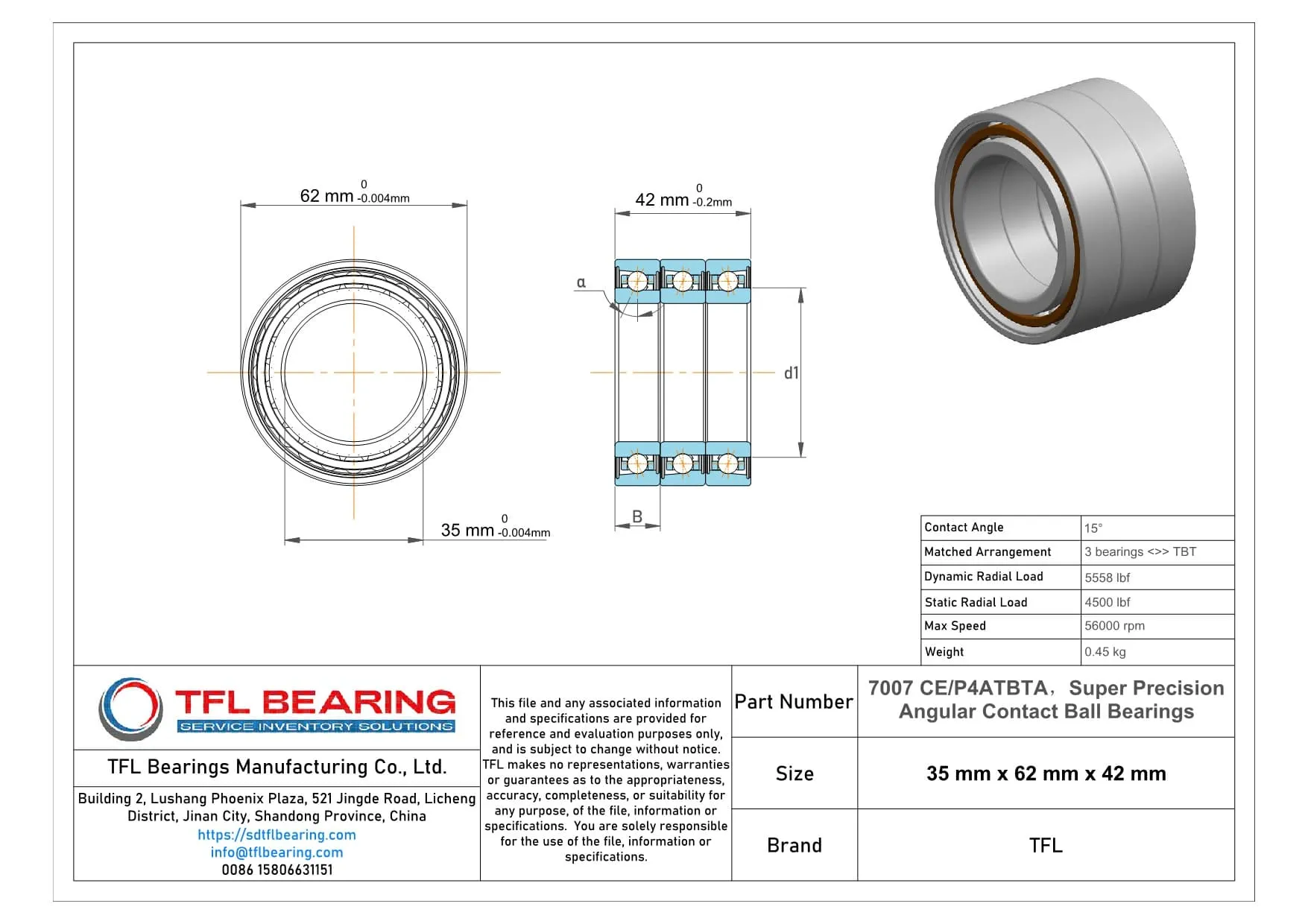

The 7007 CE/P4ATBTA is a super precision angular contact ball bearing, measuring 35mm by 62mm by 42mm, crafted from durable chrome steel. It handles radial loads up to 5558 lbf and spins smoothly at speeds up to 56,000 RPM.
With a 15° contact angle and open design, it offers excellent performance in high-speed applications. The phenolic cage ensures quiet operation and long service life.
This set includes three bearings arranged in a TBT configuration, preloaded for extra light operation. Ideal for precision machinery like spindles or CNC equipment where accuracy is key.
Weighing 0.45kg, it operates in temperatures from -30°C to 110°C. Compliant with P4A tolerance standards for reliable performance. Interchangeable with SKF bearings for easy replacement.
"*" indicates required fields
How Is 7007 CE/P4ATBTA Bearing Engineered for Reliability?
7007 CE/P4ATBTA Bearing features a 15° contact angle, optimising load distribution for smooth operation.
Its chrome steel rings and balls enhance durability, while the phenolic cage ensures stability at high speeds.
With a dynamic radial load capacity of 5558 lbf, it handles demanding applications with ease.
The extra-light preload (Class A) reduces friction, contributing to longer service life.
Designed for matched arrangements (3 bearings > TBT), it offers precise performance in angular contact scenarios.
Its maximum speed of 56,000 rpm makes it suitable for high-speed machinery.
Where Is 7007 CE/P4ATBTA Bearing Used?
7007 CE/P4ATBTA Bearing is commonly used in high-precision machine tools, where its angular contact design ensures accurate spindle rotation. The matched arrangement of three bearings provides stability in demanding industrial applications.
In robotics, 7007 CE/P4ATBTA Bearing supports articulated arms, offering smooth movement and low friction. Its phenolic cage material helps reduce weight while maintaining durability.
For automotive applications, 7007 CE/P4ATBTA Bearing is ideal for wheel hubs and transmissions, handling both radial and axial loads efficiently. The extra light preload ensures minimal energy loss during operation.
Medical imaging devices benefit from 7007 CE/P4ATBTA Bearing’s precision, ensuring quiet and reliable performance. The chrome steel construction provides long-lasting wear resistance in critical environments.
