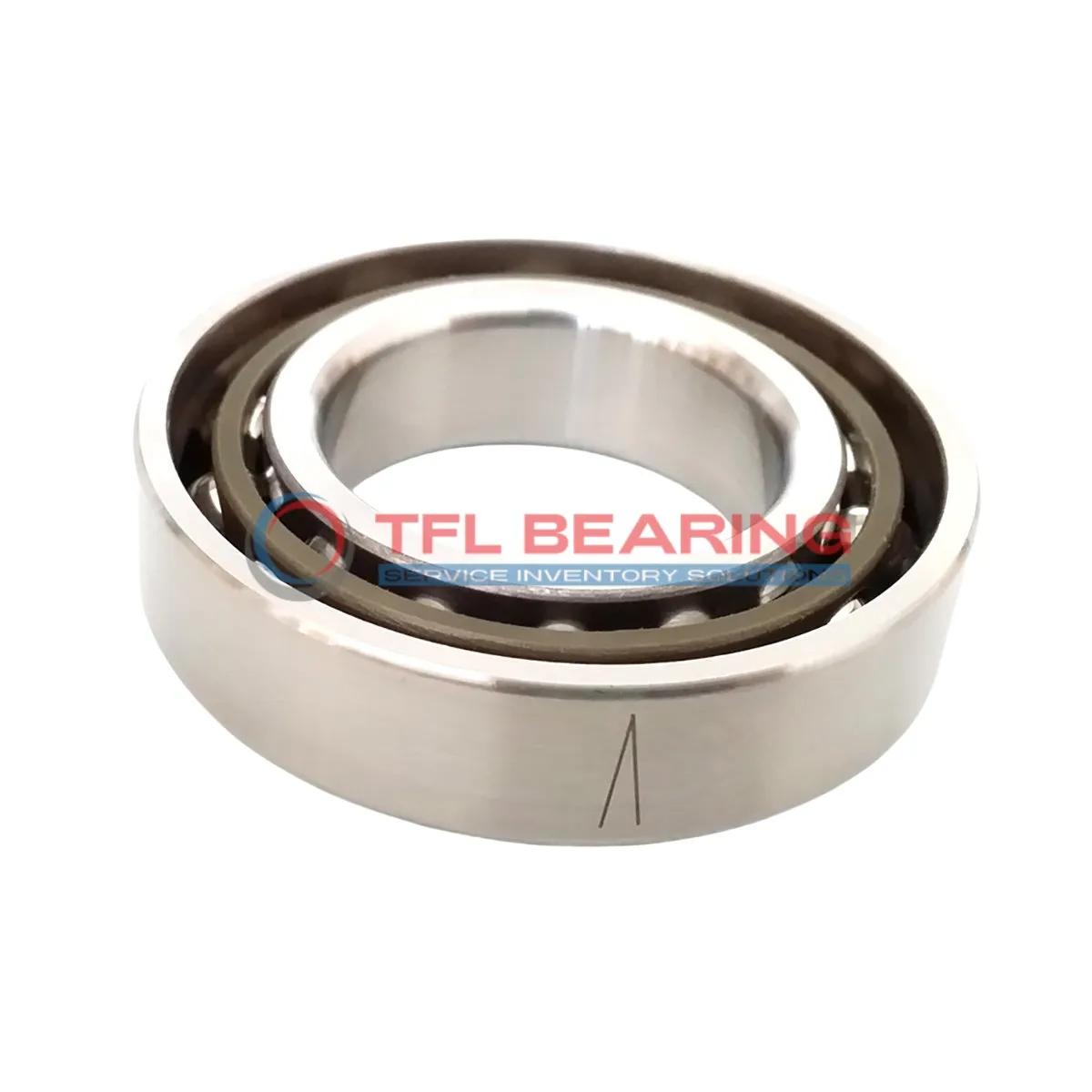

The 7007 CD/P4ATBTC is a super precision angular contact ball bearing with a 35mm bore and 62mm outer diameter, crafted from high-quality chrome steel. It features a 15° contact angle and comes in a matched set of three bearings for balanced performance.
This bearing handles radial loads up to 7605 lbf and operates smoothly at speeds up to 56,000 RPM. Its phenolic cage ensures durability, while the open design allows for easy lubrication and maintenance.
The moderate preload (Class C) provides stability, making it suitable for high-precision applications. It performs well in temperatures ranging from -30°C to 110°C.
Ideal for machine tools, spindles, or other equipment requiring tight tolerances and reliable angular contact performance. Weighing 0.46kg, it’s a robust yet manageable component for precision engineering.
"*" indicates required fields
Performance Features of 7007 CD/P4ATBTC Bearing
7007 CD/P4ATBTC Bearing is designed with a 15° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and balls provide strong resistance to wear, ensuring reliable performance under dynamic radial loads up to 7605 lbf.
The phenolic cage maintains ball alignment, reducing friction and extending service life.
With a maximum speed of 56,000 rpm, it balances precision and efficiency in high-speed operations.
7007 CD/P4ATBTC Bearing operates smoothly in temperatures ranging from -30°C to 110°C.
Its moderate preload (Class C) ensures stable performance in matched arrangements of three bearings.
The open design allows for easy lubrication, reducing maintenance needs.
Precision tolerances (P4A) make it ideal for applications requiring high accuracy.
Industrial Uses of 7007 CD/P4ATBTC Bearing
7007 CD/P4ATBTC Bearing is commonly used in high-precision machine tools, where its angular contact design ensures accurate spindle rotation. The matched set of three bearings provides stability for heavy cutting operations.
In automotive applications, 7007 CD/P4ATBTC Bearing supports gearbox systems, handling both radial and axial loads efficiently. Its moderate preload helps reduce vibration in high-speed transmissions.
For robotics, 7007 CD/P4ATBTC Bearing’s phenolic cage offers smooth movement in articulated arms. The P4A tolerance class ensures consistent performance in automated assembly lines.
Medical imaging devices benefit from 7007 CD/P4ATBTC Bearing’s low friction and high-speed capabilities. The chrome steel construction maintains precision in sensitive diagnostic equipment.
In aerospace, 7007 CD/P4ATBTC Bearing is trusted for flight control systems due to its reliability. The open design allows for easy lubrication, extending service life in demanding conditions.
