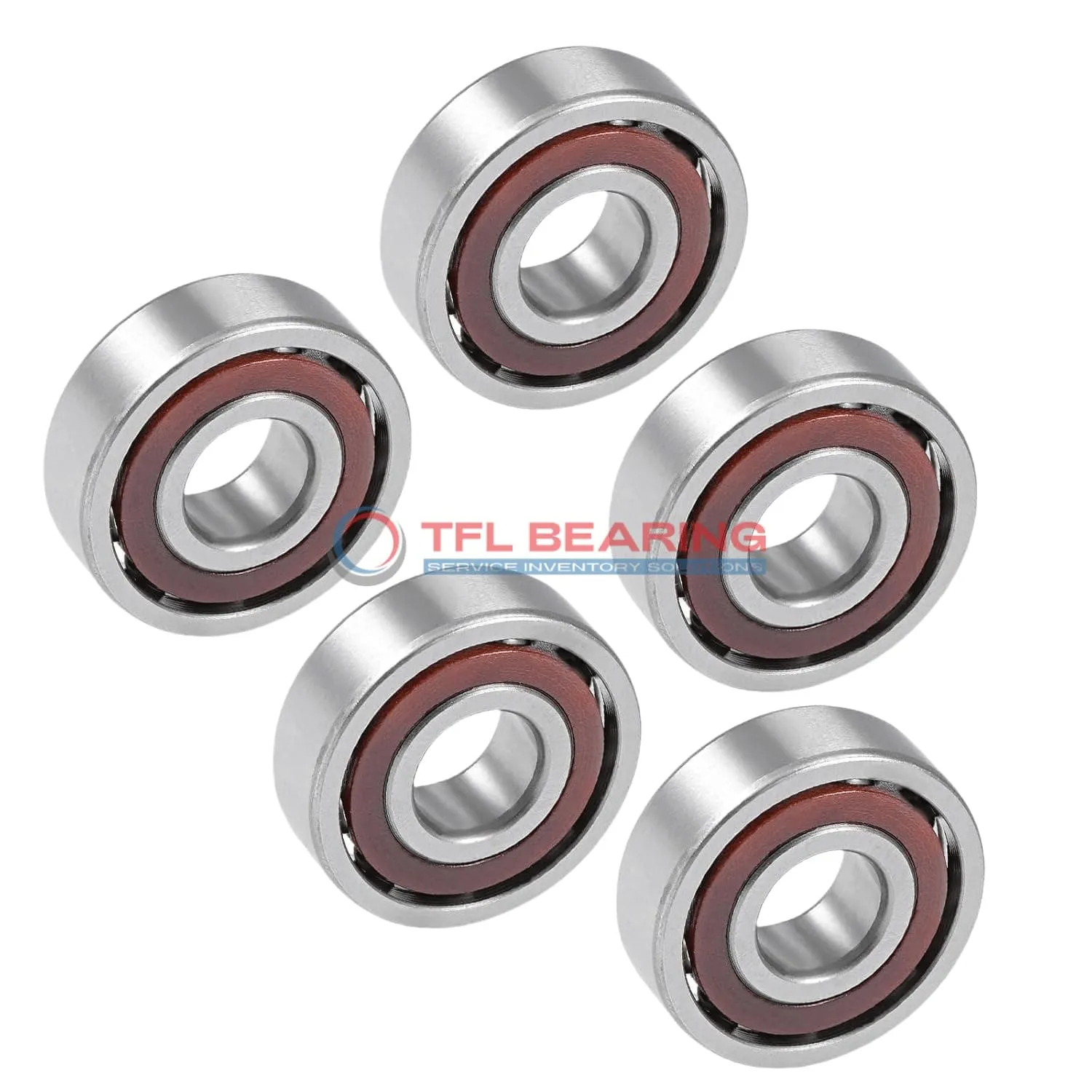

The 7007 ACE/HCP4BVG275 is a super precision angular contact ball bearing with a 35mm bore and 62mm outer diameter, designed for high-speed applications. Its 25° contact angle efficiently handles both radial and axial loads, with a dynamic radial load capacity of 2498 lbf.
The bearing features a chrome steel ring and ceramic balls, reducing friction and allowing speeds up to 36,000 RPM. The phenolic cage provides durability while maintaining smooth operation. It comes pre-lubricated for immediate use and performs well in temperatures from -30°C to 110°C.
With a P4 tolerance class, this bearing offers exceptional precision for demanding applications. Ideal for machine tools, spindles, or other high-speed equipment where accuracy is crucial. Its open design allows for easy maintenance and relubrication when needed.
Weighing just 0.13kg, it’s lightweight yet robust. The bearing is interchangeable with SKF models, making replacements straightforward. Matched arrangements are available for applications requiring precise alignment.
"*" indicates required fields
Why Choose 7007 ACE/HCP4BVG275 Bearing for Precision Tasks?
7007 ACE/HCP4BVG275 Bearing features a 25° contact angle, ideal for handling combined radial and axial loads with high precision.
Its ceramic balls and chrome steel rings ensure smooth operation, even at speeds up to 36,000 rpm.
The phenolic cage reduces friction and wear, enhancing the bearing’s longevity.
With a P4 tolerance class, it delivers consistent performance in demanding applications.
7007 ACE/HCP4BVG275 Bearing is preloaded and available in matched sets for added stability.
Its open design allows for easy lubrication, maintaining optimal performance over time.
Common Applications of 7007 ACE/HCP4BVG275 Bearing
7007 ACE/HCP4BVG275 Bearing is widely used in high-speed machine tools, where its precision angular contact design ensures accurate spindle rotation. The ceramic balls reduce friction, making it ideal for applications demanding smooth operation.
In robotics, 7007 ACE/HCP4BVG275 Bearing supports articulated arms, providing stability and durability in repetitive motions. Its phenolic cage offers lightweight performance, which is crucial for energy-efficient automation systems.
For medical imaging devices, 7007 ACE/HCP4BVG275 Bearing’s P4 tolerance class guarantees the precision needed for clear, consistent results. The open seal design allows for easy lubrication, extending the bearing’s lifespan in critical healthcare equipment.
Automotive enthusiasts appreciate 7007 ACE/HCP4BVG275 Bearing in performance gearboxes, where its high-speed capability enhances shifting smoothness. The matched arrangement option also simplifies installation in custom drivetrain setups.
