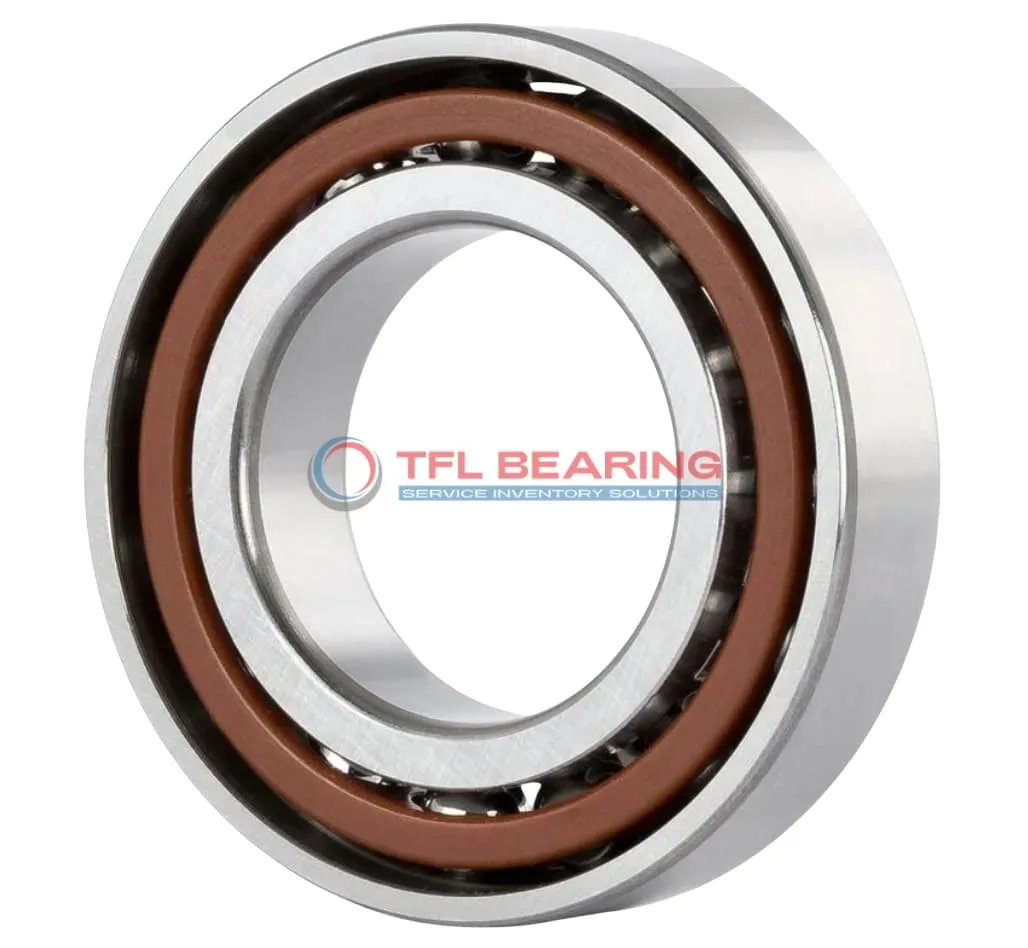

The 7006 CEGB/HCP4A is a super precision angular contact ball bearing, measuring 30mm by 55mm by 13mm. Made from chrome steel with ceramic balls, it offers smooth operation and durability.
With a 15° contact angle, it handles radial loads up to 2106 lbf and spins at speeds up to 100,500 RPM. Its phenolic cage ensures quiet performance and long service life.
The open design allows easy lubrication, while the P4A tolerance class guarantees high precision. It works well in temperatures from -30°C to 110°C.
Ideal for high-speed applications like machine tool spindles or precision instruments. The bearing is interchangeable with SKF models and comes in a matched set for versatile mounting options. Weighing just 0.1kg, it’s lightweight yet robust.
"*" indicates required fields
Performance Features of 7006 CEGB/HCP4A Bearing
7006 CEGB/HCP4A Bearing uses ceramic balls and chrome steel rings, offering high precision and durability.
Its 15° contact angle ensures efficient handling of combined radial and axial loads.
With a dynamic radial load capacity of 2106 lbf, it performs reliably in demanding applications.
The phenolic cage maintains ball alignment, reducing friction and wear.
7006 CEGB/HCP4A Bearing operates at speeds up to 100,500 rpm, ideal for high-speed machinery.
Its P4A tolerance class guarantees consistent performance in precision tasks.
The open design allows for easy lubrication, extending maintenance intervals.
This bearing is suitable for temperatures ranging from -30°C to 110°C.
Common Applications of 7006 CEGB/HCP4A Bearing
7006 CEGB/HCP4A Bearing is widely used in high-speed machine tools, where its ceramic balls and phenolic cage reduce friction and heat buildup. The P4A tolerance ensures precision in demanding industrial environments.
In robotics, 7006 CEGB/HCP4A Bearing supports articulated arms, providing smooth motion thanks to its angular contact design. The light preload makes it ideal for applications requiring minimal resistance.
For dental drills and other medical devices, 7006 CEGB/HCP4A Bearing offers reliable performance with its chrome steel rings and ceramic balls. The open seal type allows for easy cleaning and maintenance in sterile environments.
Automotive electric motors benefit from 7006 CEGB/HCP4A Bearing’s ability to handle both radial and axial loads. Its high-speed capability makes it suitable for hybrid and electric vehicle applications.
In 3D printers, 7006 CEGB/HCP4A Bearing ensures accurate positioning of print heads due to its super precision design. The lightweight construction also helps maintain speed and efficiency in automated systems.
