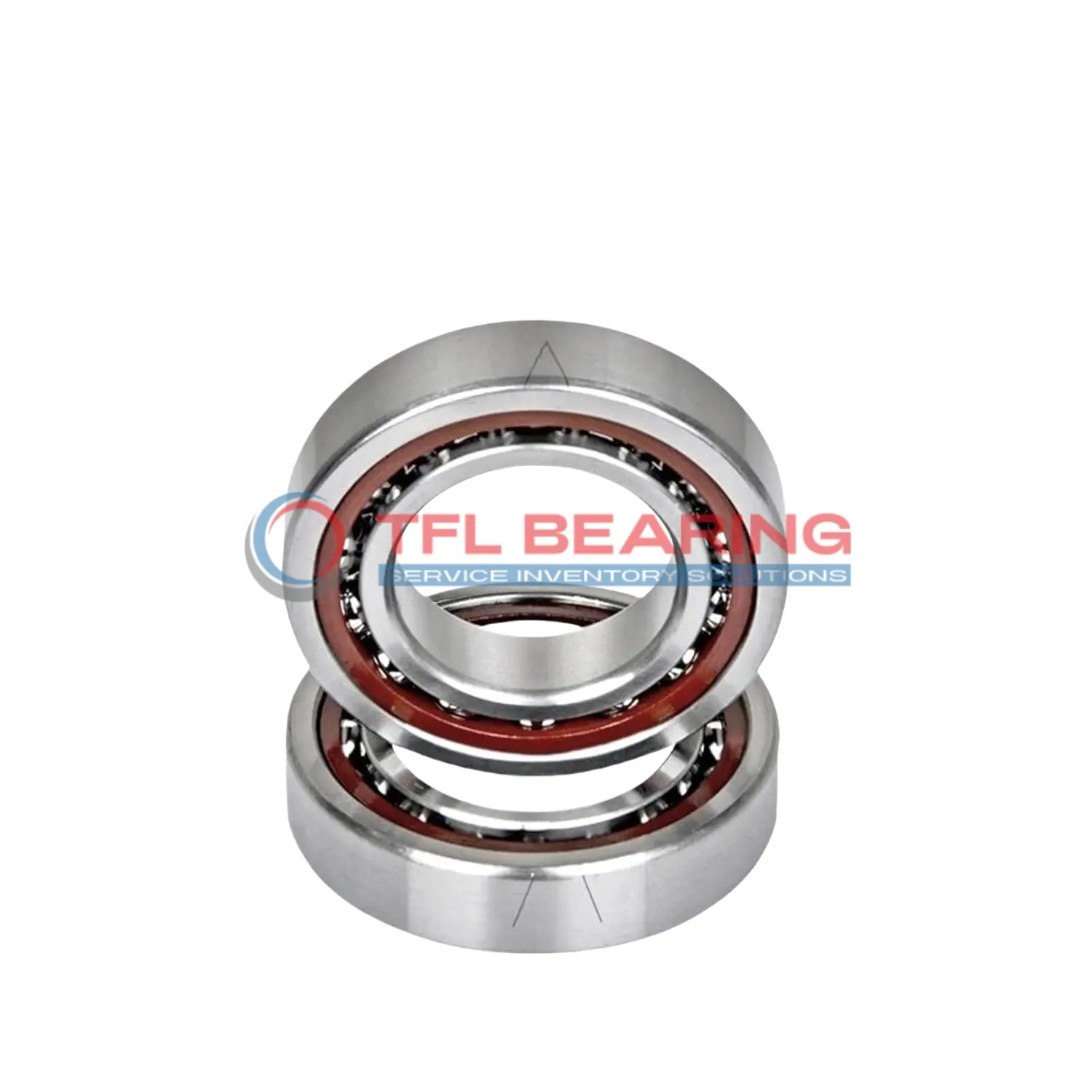

The 7004 CEGB/P4A is a super precision angular contact ball bearing with a 20mm bore and 42mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 1667 lbf and spins smoothly at speeds up to 121,000 RPM.
Its 15° contact angle and open design ensure efficient load distribution and easy maintenance. The phenolic cage adds durability while keeping the weight light at just 0.064kg.
This bearing is ideal for high-speed applications like machine tool spindles or precision instruments. It operates well in temperatures from -30°C to 110°C and comes pre-lubricated for immediate use.
Interchangeable with SKF bearings, it offers flexibility for replacements. The P4A tolerance class guarantees high precision for demanding tasks.
"*" indicates required fields
Performance Features of 7004 CEGB/P4A Bearing
7004 CEGB/P4A Bearing is designed with a 15° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and balls ensure durability, while the phenolic cage reduces friction and noise.
With a dynamic radial load capacity of 1667 lbf, 7004 CEGB/P4A Bearing handles demanding conditions reliably.
The P4A tolerance class guarantees high precision, making it suitable for applications requiring tight tolerances.
7004 CEGB/P4A Bearing operates smoothly at speeds up to 121,000 rpm, thanks to its balanced design.
Its temperature range of -30°C to 110°C ensures consistent performance in various environments.
The open seal type allows for easy lubrication, reducing maintenance needs.
Its universal matching capability enables flexible configurations like back-to-back or face-to-face arrangements.
Key Fields for 7004 CEGB/P4A Bearing
7004 CEGB/P4A Bearing is commonly used in high-speed machine tools, where its precision angular contact design ensures accurate spindle rotation. The phenolic cage reduces friction, making it suitable for continuous operation.
In robotics, 7004 CEGB/P4A Bearing supports articulated arms, providing smooth movement and load handling. Its light preload helps maintain positioning accuracy in automated systems.
For dental drills and other medical devices, 7004 CEGB/P4A Bearing offers reliable performance due to its chrome steel construction. The P4A tolerance class ensures consistent operation in sensitive applications.
Automotive applications like electric power steering systems benefit from 7004 CEGB/P4A Bearing’s high-speed capabilities. Its open design allows for easy lubrication, extending service life in demanding conditions.
