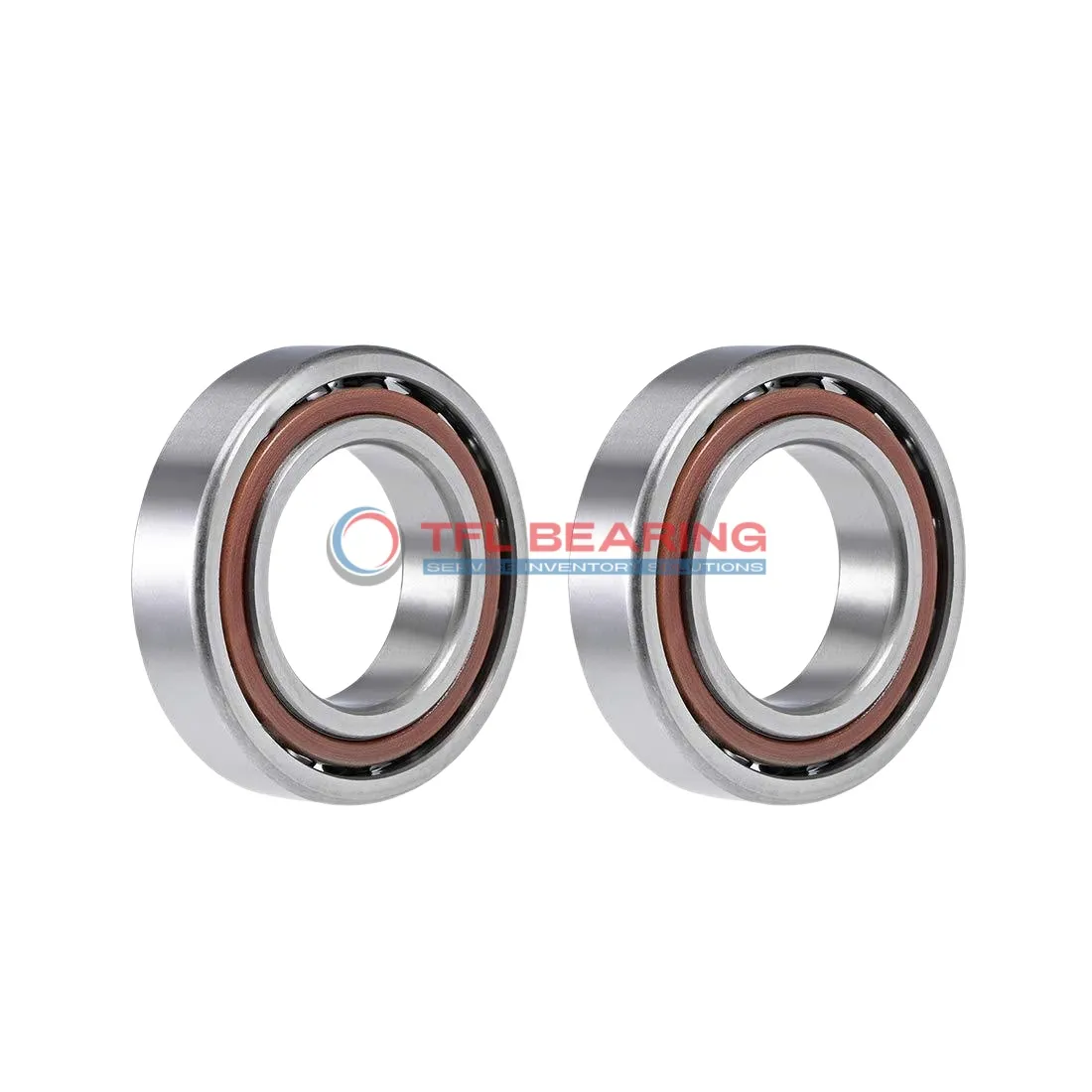

The 7004 CE/HCP4ALDT is a super precision angular contact ball bearing with a 20mm bore and 42mm outer diameter, crafted from chrome steel for durability. It features a 15° contact angle and comes in a matched set of two bearings for balanced performance.
With a dynamic radial load capacity of 2722 lbf, it spins smoothly at speeds up to 100,000 RPM. The ceramic balls and phenolic cage reduce friction, enhancing efficiency and longevity.
Its open design allows easy lubrication, while the P4A tolerance class ensures high precision. Ideal for applications like machine tools or high-speed spindles where accuracy is crucial.
Weighing just 0.11kg, it’s lightweight yet robust. Suitable for temperatures from -30°C to 110°C, making it versatile for various industrial uses.
"*" indicates required fields
Why Choose 7004 CE/HCP4ALDT Bearing for Precision Tasks?
7004 CE/HCP4ALDT Bearing features a 15° contact angle, ideal for high-precision angular contact applications.
Its chrome steel rings and ceramic balls ensure smooth operation and reduced friction.
The phenolic cage maintains ball alignment, enhancing durability and performance.
With a maximum speed of 100,000 rpm, it excels in high-speed environments.
Preloaded and matched in pairs, 7004 CE/HCP4ALDT Bearing offers consistent and reliable performance.
Its P4A tolerance class guarantees precision for demanding tasks.
The open design allows for easy lubrication, ensuring long service life.
7004 CE/HCP4ALDT Bearing is suitable for temperatures ranging from -30°C to 110°C.
Key Fields for 7004 CE/HCP4ALDT Bearing
7004 CE/HCP4ALDT Bearing is widely used in high-speed machine tools, where its precision angular contact design ensures smooth operation. The ceramic balls reduce friction, making it ideal for applications requiring minimal heat generation.
In robotics, 7004 CE/HCP4ALDT Bearing supports articulated arms, providing stability and accuracy in repetitive movements. Its matched arrangement enhances load distribution, extending service life in demanding environments.
For medical imaging devices, 7004 CE/HCP4ALDT Bearing’s phenolic cage offers quiet performance, crucial for sensitive diagnostic equipment. The P4A tolerance class guarantees consistent precision in critical applications.
Automotive electric motors benefit from 7004 CE/HCP4ALDT Bearing’s high-speed capability and low maintenance needs. Its lubricated design ensures reliable performance in both start-stop and continuous operations.
In 3D printers, 7004 CE/HCP4ALDT Bearing’s lightweight construction and precision contribute to accurate layering. The open seal type allows for easy cleaning, maintaining performance over long print cycles.
