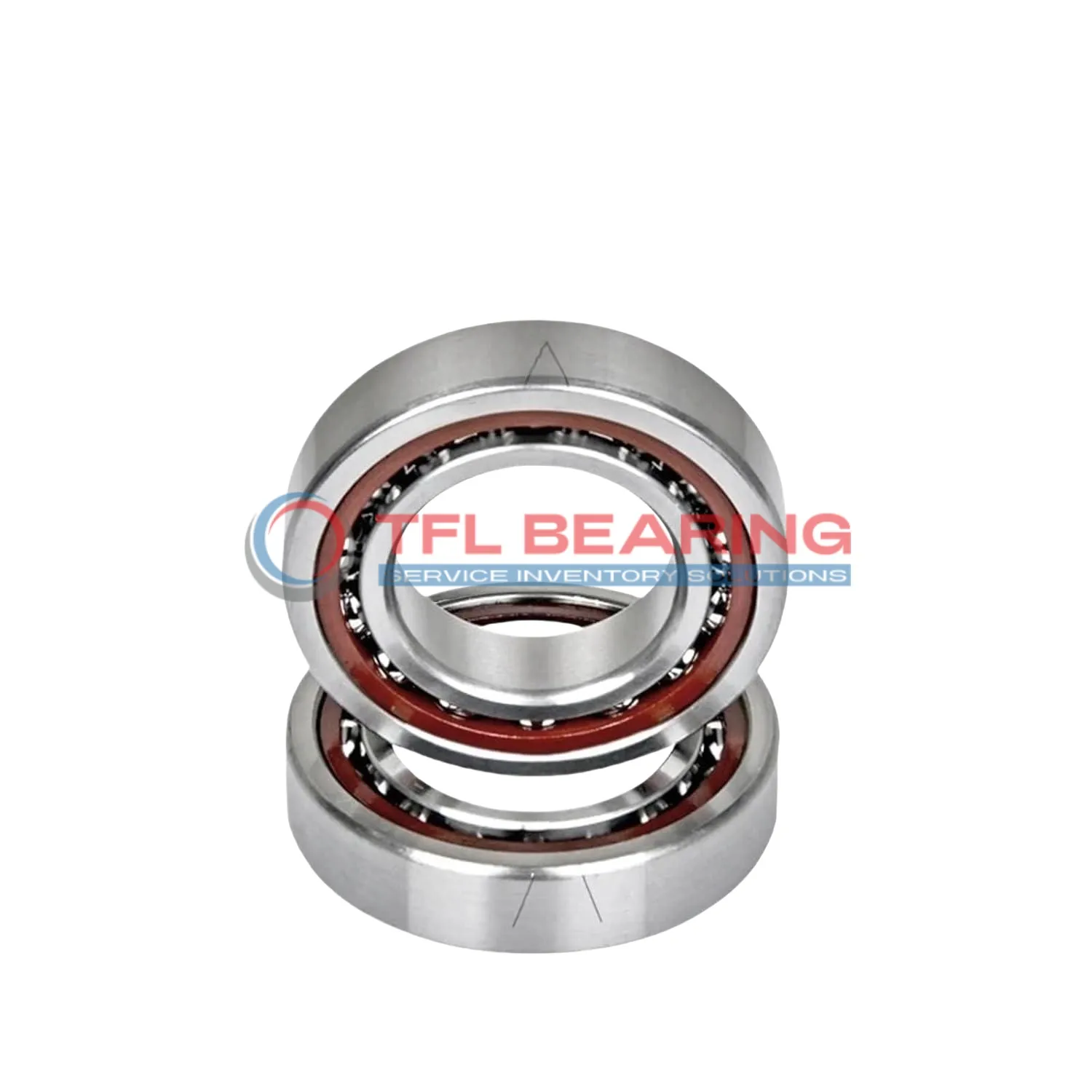

The 7004 CD/P4ADGB is a super precision angular contact ball bearing with a 20mm bore and 42mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 3150 lbf and operates smoothly at speeds up to 121,000 RPM.
Its 15° contact angle and universal matching design allow flexible arrangements like back-to-back or face-to-face mounting. The phenolic cage ensures quiet operation and long service life.
This bearing comes pre-lubricated and works in temperatures from -30°C to 110°C. With P4A tolerance class, it offers high precision for demanding applications.
Ideal for machine tools, spindles, or high-speed equipment where accuracy is crucial. Weighing just 0.14kg, it’s lightweight yet robust. The set includes two matched bearings for versatile installation options.
"*" indicates required fields
Performance Features of 7004 CD/P4ADGB Bearing
7004 CD/P4ADGB Bearing is crafted with a 15° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and balls enhance durability, supporting dynamic radial loads up to 3150 lbf.
The phenolic cage ensures smooth operation, even at high speeds of 121,000 rpm.
Universal matching allows flexible arrangements like back-to-back or face-to-face configurations.
With a precision tolerance class of P4A, 7004 CD/P4ADGB Bearing delivers reliable performance in demanding conditions.
Its open design and lubrication reduce friction, extending service life.
The lightweight construction at 0.14 kg makes it suitable for applications where weight is a concern.
Operating between -30°C to 110°C, it adapts well to varying environmental conditions.
Industrial Uses of 7004 CD/P4ADGB Bearing
7004 CD/P4ADGB Bearing is commonly used in high-speed machine tools, where its precision angular contact design ensures accurate spindle rotation. The open seal type allows for efficient lubrication, extending service life in demanding industrial settings.
Where Is 7004 CD/P4ADGB Bearing Used?
You’ll often find 7004 CD/P4ADGB Bearing in automotive transmissions, where its light preload and universal matching arrangement help reduce vibration. Its phenolic cage also provides quiet operation, ideal for passenger vehicles.
Perfect Fit for Automation: 7004 CD/P4ADGB Bearing
7004 CD/P4ADGB Bearing works well in robotic arms, thanks to its high-speed capability and consistent performance. The chrome steel construction ensures durability even in repetitive motion applications.
Medical vs Industrial: Where 7004 CD/P4ADGB Bearing Excels
In medical imaging devices, 7004 CD/P4ADGB Bearing offers reliable precision for smooth operation. Meanwhile, its industrial-grade materials make it equally suitable for heavy machinery requiring tight tolerances.
Key Fields for 7004 CD/P4ADGB Bearing
7004 CD/P4ADGB Bearing is a go-to choice for 3D printers, where its low friction and high-speed performance enhance print quality. The metric sizing ensures compatibility with most European and Asian equipment designs.
