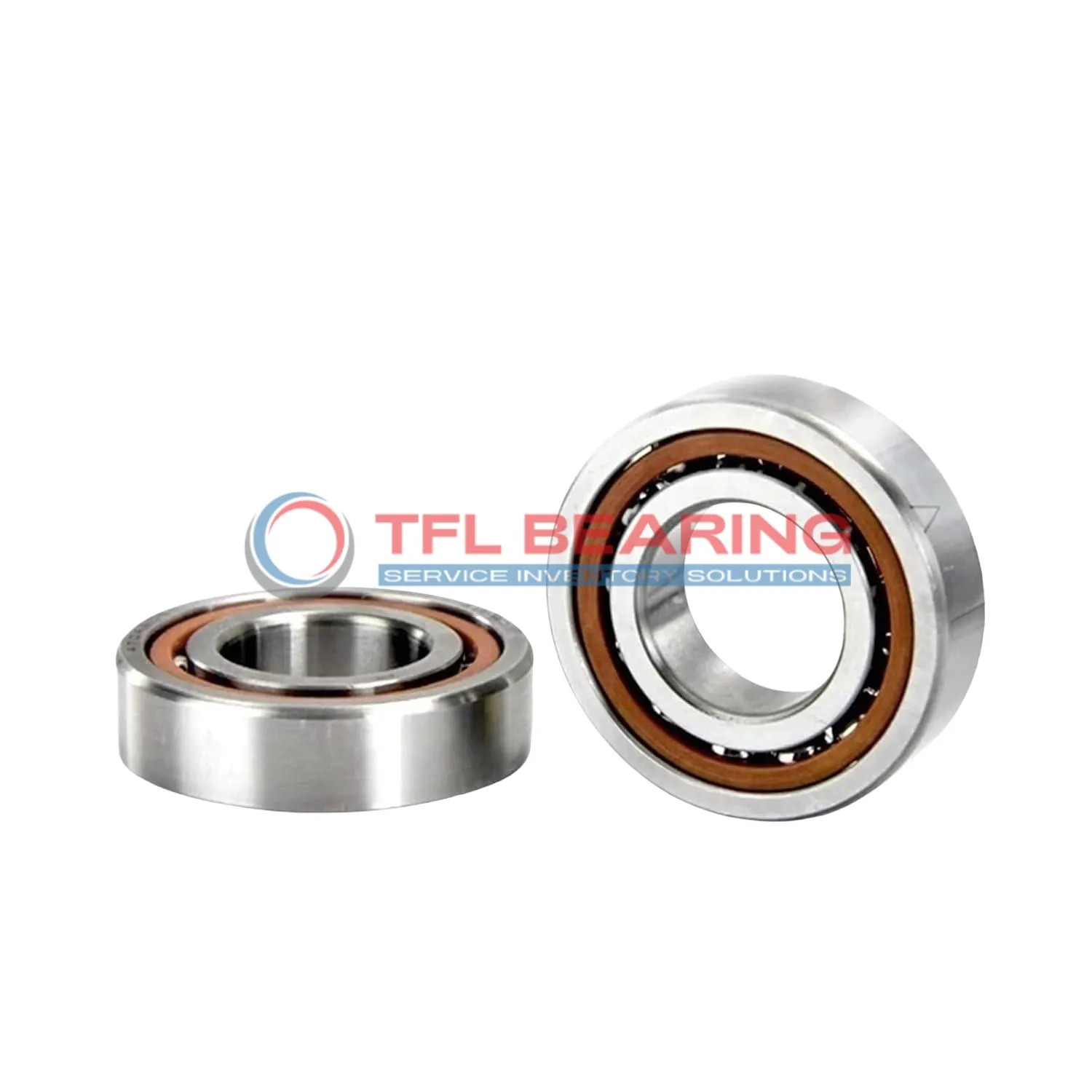

The 7003 CEGA/P4A is a super precision angular contact ball bearing with a compact size of 17mm by 35mm by 10mm, crafted from high-quality chrome steel. It features a 15° contact angle and is designed for angular contact loads, handling up to 1316 lbf dynamically.
With a maximum speed of 115,000 RPM and a temperature range of -30°C to 110°C, it performs reliably in demanding conditions. The open design and phenolic cage ensure smooth operation and easy maintenance.
This bearing is interchangeable with SKF models and comes pre-lubricated for immediate use. Ideal for high-precision applications like machine tool spindles or medical equipment where accuracy is crucial.
Weighing just 0.035kg, it’s lightweight yet durable, meeting P4A tolerance standards for exceptional performance. Suitable for universal matching in back-to-back, face-to-face, or tandem arrangements.
"*" indicates required fields
Performance Features of 7003 CEGA/P4A Bearing
7003 CEGA/P4A Bearing is designed with a 15° contact angle, offering precise angular contact performance.
Its chrome steel rings and balls ensure durability and smooth operation under dynamic radial loads up to 1316 lbf.
The phenolic cage maintains ball alignment, reducing friction and enhancing efficiency.
With a maximum speed of 115,000 rpm, it is suitable for high-speed applications.
7003 CEGA/P4A Bearing operates reliably in temperatures ranging from -30°C to 110°C.
Its extra light preload and P4A tolerance class ensure consistent precision in demanding conditions.
The open design allows for easy lubrication, extending the bearing’s service life.
Its compact size (17 mm×35 mm×10 mm) makes it ideal for space-constrained applications.
Industrial Uses of 7003 CEGA/P4A Bearing
7003 CEGA/P4A Bearing is commonly used in high-speed machine spindles, where its precision angular contact design ensures accurate rotation. The open seal and phenolic cage make it suitable for applications requiring minimal friction and heat generation.
Where Is 7003 CEGA/P4A Bearing Used?
You’ll often find 7003 CEGA/P4A Bearing in CNC machining centres, supporting tools that demand tight tolerances. Its extra-light preload helps maintain stability during high-speed operations.
Built for Heavy-Duty Use: 7003 CEGA/P4A Bearing
7003 CEGA/P4A Bearing handles radial and axial loads efficiently, making it ideal for industrial pumps and compressors. The chrome steel construction ensures durability even in demanding environments.
Automotive vs Aerospace: Applications of 7003 CEGA/P4A Bearing
In automotive systems, 7003 CEGA/P4A Bearing is used in wheel hubs for its load-bearing capacity. Aerospace applications benefit from its precision in flight control mechanisms.
Perfect Fit for Automation: 7003 CEGA/P4A Bearing
7003 CEGA/P4A Bearing works well in robotic arms, providing smooth movement and precise positioning. Its high-speed capability makes it a reliable choice for automated production lines.
