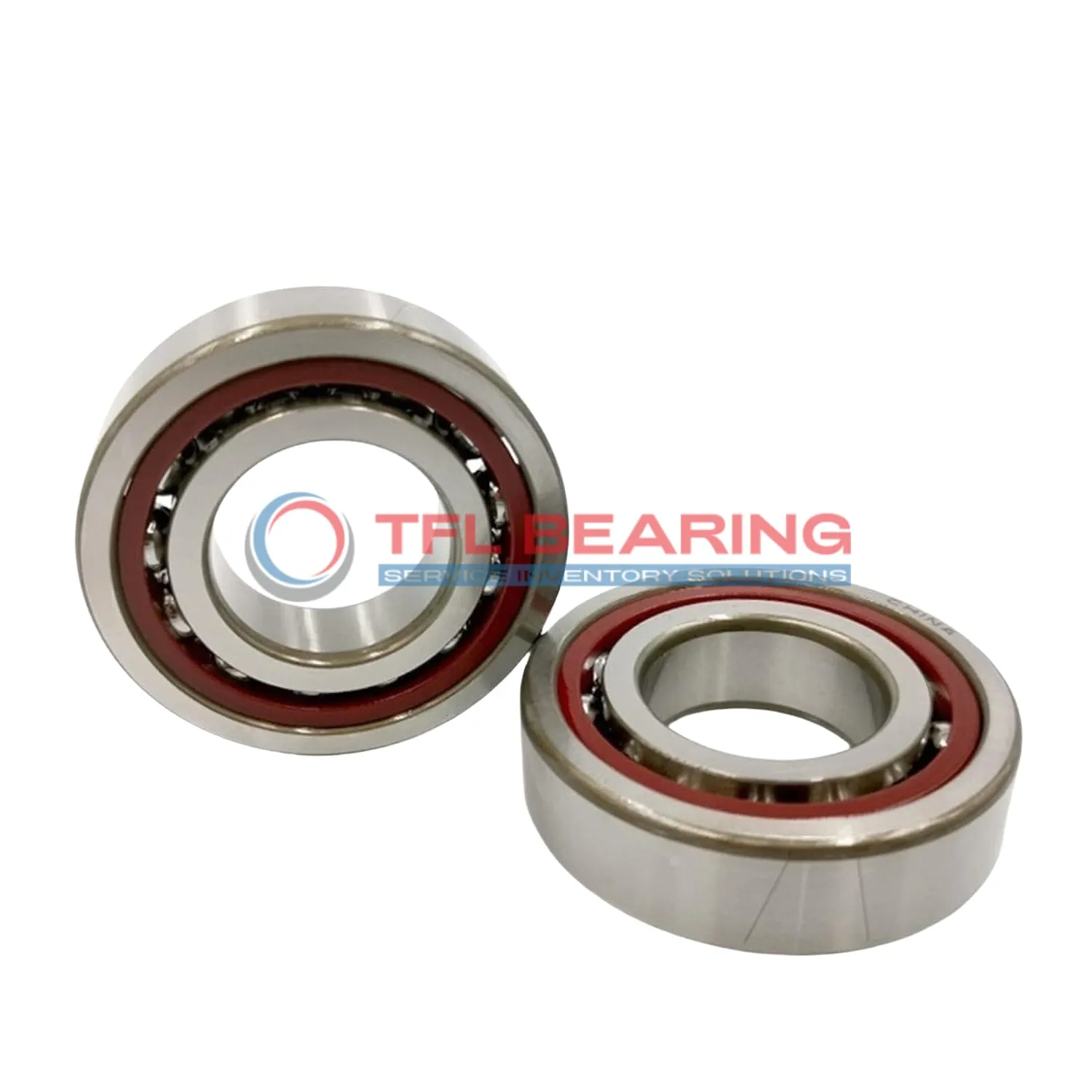

The 7001 CE/PA9ADGA is a super precision angular contact ball bearing with a 12mm bore and 28mm outer diameter, crafted from durable chrome steel. It features a 15° contact angle and is designed for angular loads, handling up to 1170 lbf dynamically.
Its open design and phenolic cage ensure smooth operation at speeds up to 100,000 RPM, making it suitable for high-performance applications. The bearing comes pre-lubricated and operates efficiently in temperatures from -30°C to 110°C.
This model is part of a matched set of two, allowing for universal matching in back-to-back, face-to-face, or tandem arrangements. Ideal for precision machinery like spindles or high-speed tools where accuracy is key.
Weighing just 0.042kg, it’s lightweight yet robust, meeting PA9A tolerance standards for exceptional performance. Interchangeable with SKF bearings, it’s a reliable choice for replacements.
"*" indicates required fields
Why Choose 7001 CE/PA9ADGA Bearing for Precision Tasks?
7001 CE/PA9ADGA Bearing features a 15° contact angle, ideal for high-precision angular contact applications.
Its chrome steel rings and balls ensure durability and smooth operation under dynamic radial loads up to 1170 lbf.
The phenolic cage maintains ball alignment, reducing friction and enhancing performance.
With a maximum speed of 100,000 rpm, it excels in high-speed scenarios while maintaining precision.
7001 CE/PA9ADGA Bearing operates efficiently in temperatures ranging from -30°C to 110°C.
Its universal matching design allows flexible arrangements like back-to-back or face-to-face configurations.
The extra light preload (Class A) ensures minimal resistance, optimising efficiency.
Lubrication is pre-applied, reducing initial setup time and maintenance needs.
7001 CE/PA9ADGA Bearing’s compact size (12 mm×28 mm×16 mm) suits space-constrained applications.
Its tight tolerances (PA9A) guarantee consistent performance in precision instruments.
Industrial Uses of 7001 CE/PA9ADGA Bearing
7001 CE/PA9ADGA Bearing is commonly used in high-speed machine tools, where its precision angular contact design ensures accurate spindle rotation. The phenolic cage reduces friction, making it suitable for continuous operation.
Where Is 7001 CE/PA9ADGA Bearing Used?
In robotics, 7001 CE/PA9ADGA Bearing supports articulated arms, providing smooth movement and low heat generation. Its universal matching feature allows flexible installation in various configurations.
Perfect Fit for Automation: 7001 CE/PA9ADGA Bearing
7001 CE/PA9ADGA Bearing works well in automated production lines, handling both radial and axial loads efficiently. The extra-light preload ensures minimal vibration during high-speed tasks.
Medical vs Industrial: Where 7001 CE/PA9ADGA Bearing Excels
In medical devices like dental drills, 7001 CE/PA9ADGA Bearing offers quiet and reliable performance. Its chrome steel construction also makes it durable for industrial pumps and compressors.
How Does 7001 CE/PA9ADGA Bearing Support High-Speed Operations?
With a max speed of 100,000 rpm, 7001 CE/PA9ADGA Bearing is ideal for small electric motors and turbochargers. The lubricated design ensures long service life even under demanding conditions.
