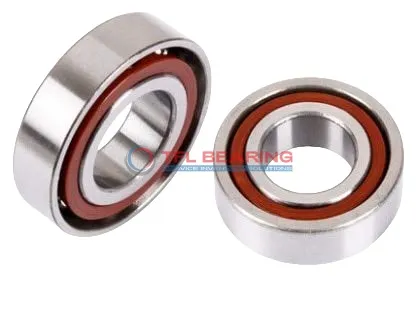

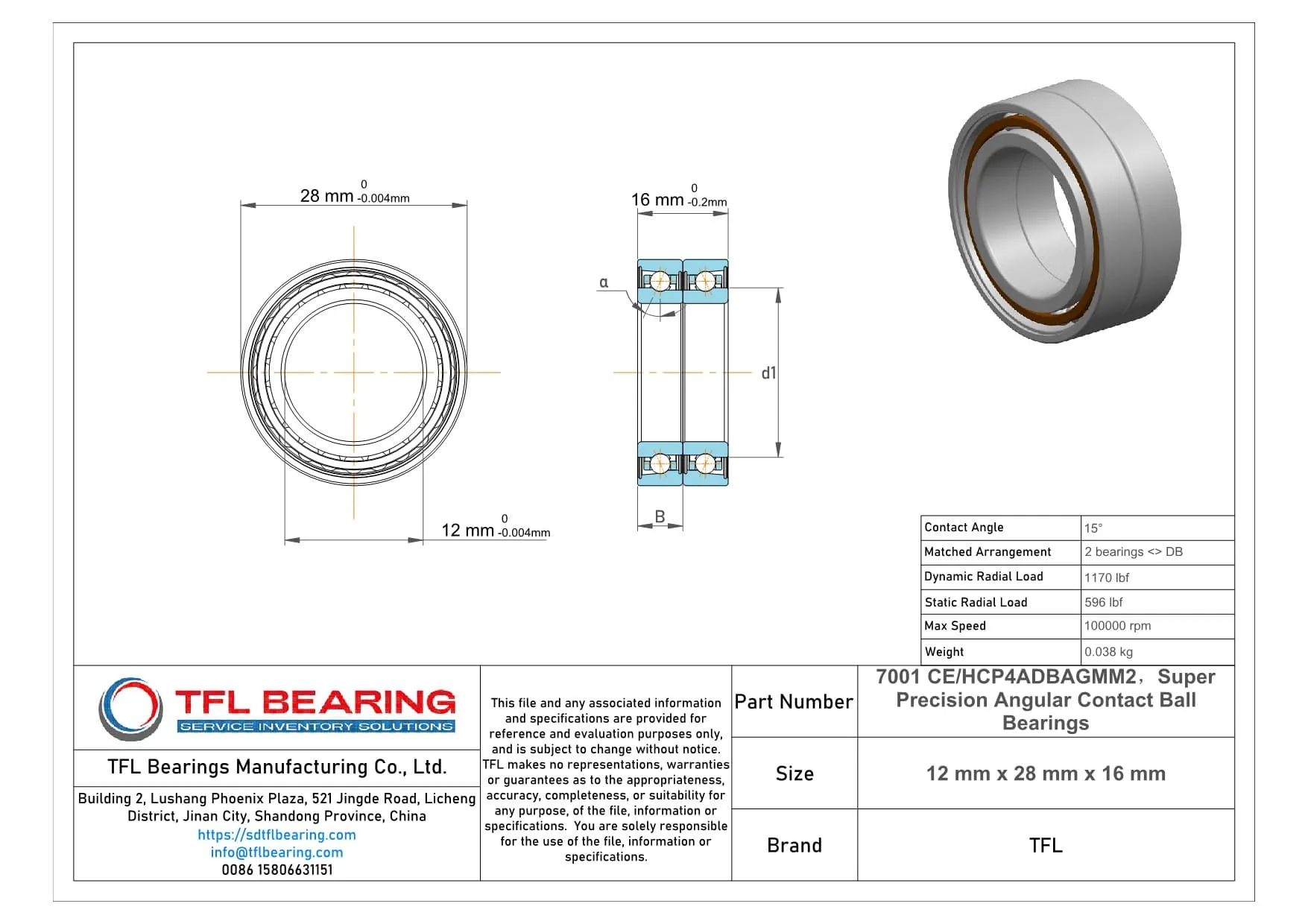

The 7001 CE/HCP4ADBAGMM2 is a super precision angular contact ball bearing with a 12mm bore and 28mm outer diameter, crafted from chrome steel and ceramic balls. It handles radial loads up to 1170 lbf and spins at speeds up to 100,000 RPM, making it suitable for high-performance applications.
Its open design and phenolic cage ensure smooth operation, while the extra light preload (Class A) reduces friction. The bearing operates efficiently in temperatures from -30°C to 110°C, with grease lubrication for easy maintenance.
This matched set of two bearings (DB arrangement) offers stability for angular contact loads. Ideal for precision machinery like spindles or CNC tools where accuracy and speed are crucial.
Weighing just 0.038kg, it’s lightweight yet durable. Compliant with P4A tolerance standards for reliable performance.
"*" indicates required fields
Performance Features of 7001 CE/HCP4ADBAGMM2 Bearing
7001 CE/HCP4ADBAGMM2 Bearing is designed with a 15° contact angle, ideal for handling combined radial and axial loads.
Its matched arrangement of two bearings in a DB configuration ensures stability and precision in high-speed applications.
The ceramic balls and chrome steel rings reduce friction, enhancing performance at speeds up to 100,000 rpm.
Phenolic cage material provides durability while maintaining smooth operation under extra light preload conditions.
7001 CE/HCP4ADBAGMM2 Bearing operates efficiently within a temperature range of -30°C to 110°C.
Grease lubrication ensures consistent performance, reducing the need for frequent maintenance.
With a dynamic radial load capacity of 1170 lbf, this bearing is suitable for demanding precision tasks.
Its P4A tolerance class guarantees high accuracy and reliability in critical applications.
How Does 7001 CE/HCP4ADBAGMM2 Bearing Improve Performance?
In industrial settings, 7001 CE/HCP4ADBAGMM2 Bearing is commonly used in high-speed spindles and machine tools, where its ceramic balls reduce friction and heat buildup. The phenolic cage ensures smooth operation even at extreme speeds.
What Industries Rely on 7001 CE/HCP4ADBAGMM2 Bearing?
Automotive applications like electric motor shafts benefit from 7001 CE/HCP4ADBAGMM2 Bearing’s angular contact design, providing stability under combined loads. Its P4A tolerance class guarantees precision in demanding environments.
Perfect Fit for Automation: 7001 CE/HCP4ADBAGMM2 Bearing
Robotic arms and 3D printers often use 7001 CE/HCP4ADBAGMM2 Bearing for its lightweight design and high-speed capabilities. The matched arrangement simplifies installation in compact spaces.
Medical vs Industrial: Where 7001 CE/HCP4ADBAGMM2 Bearing Excels
In medical imaging devices, 7001 CE/HCP4ADBAGMM2 Bearing’s grease lubrication ensures quiet operation, while industrial gearboxes appreciate its extra light preload for reduced vibration.
