Standard Flanged Ball Bearings SF6903
Standard Flanged Ball Bearings SF6903

Standard Flanged Ball Bearings SF6903

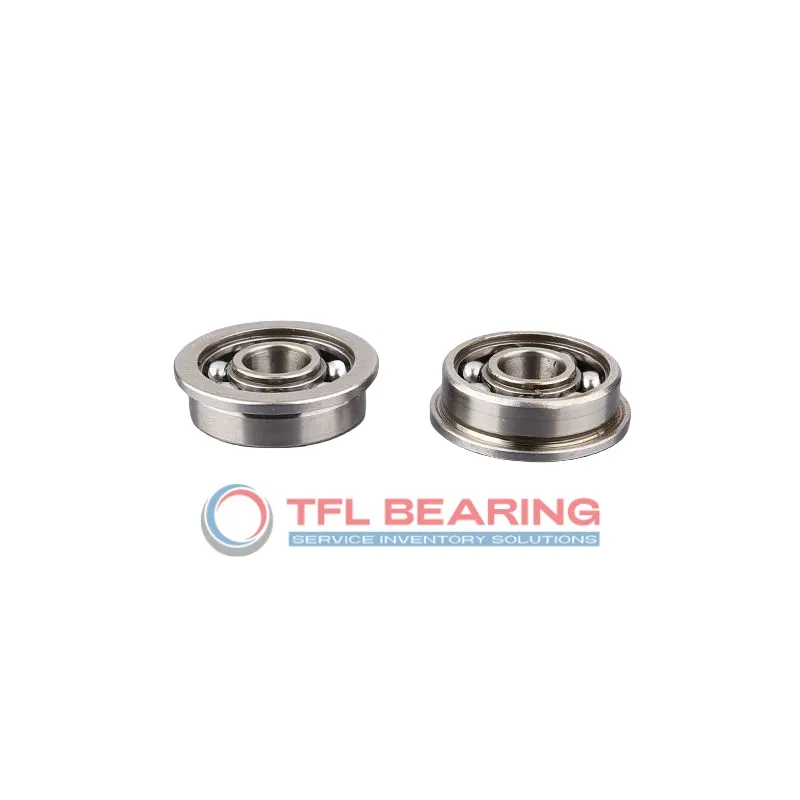

The SF6903 is a compact flanged ball bearing with a 17mm bore and 30mm outer diameter, crafted from sturdy stainless steel. Its slim 7mm width and 32mm flange make it easy to fit into tight spaces while providing extra stability.

This bearing handles radial loads up to 929 lbf and spins smoothly at speeds up to 19,800 RPM. The open design allows for easy lubrication, and the stainless steel cage ensures durability.

With a temperature range of -30°C to 110°C, it’s suitable for various environments. The ABEC-1 tolerance and C0 radial clearance offer reliable performance for everyday applications.

Ideal for small machinery or devices where space is limited but stability is key. Compliant with RoHS and REACH standards for safe use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number SF6903
  • Brand TFL
  • Bore Dia 17 mm
  • Outer Dia 30 mm
  • Width 7 mm
  • Flange Outer Dia 32 mm
  • Flange Thickness 1.5 mm
  • Ball Qty 11
  • Ball Dia 3.969 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Seal Type Open
  • Ring Material Stainless Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Shield Material 300 Series Stainless Steel
  • Dynamic Radial Load 929 lbf
  • Static Radial Load 518 lbf
  • Lubrication Required
  • Temperature Range -30° to 110°C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 19800 rpm
  • Price($) 7.8

Features

How Does SF6903 Bearing Reduce Friction?

SF6903 Bearing features a stainless steel construction with chrome steel balls, ensuring smooth operation and reduced friction.
The single-row design and precise radial clearance of 0.002mm to 0.013mm contribute to its efficiency.
With a dynamic radial load capacity of 929 lbf, it handles moderate loads while maintaining low friction.
Its maximum speed of 19,800 rpm makes it suitable for high-speed applications.

Application

Industrial Uses of SF6903 Bearing
SF6903 Bearing is commonly used in conveyor systems and small machinery, where its compact size and flanged design help maintain alignment. The stainless steel construction ensures it can handle moderate radial loads without excessive wear.

Where Is SF6903 Bearing Used?
You’ll often find SF6903 Bearing in office equipment like printers, where its low-profile design fits tight spaces. The open seal allows for easy lubrication, keeping operations smooth over long periods.

Built for Heavy-Duty Use: SF6903 Bearing
SF6903 Bearing works well in food processing equipment, thanks to its stainless steel rings resisting corrosion. The flange adds stability, making it suitable for high-vibration environments like mixers.

Automotive vs Aerospace: Applications of SF6903 Bearing
In automotive applications, SF6903 Bearing supports small electric motors, while its lightweight design is handy for drone propellers. The ABEC-1 tolerance ensures reliable performance in both fields.

Perfect Fit for Automation: SF6903 Bearing
SF6903 Bearing is ideal for robotic arms, where precision and durability matter. Its chrome steel balls reduce friction, ensuring smooth movement in repetitive tasks.
