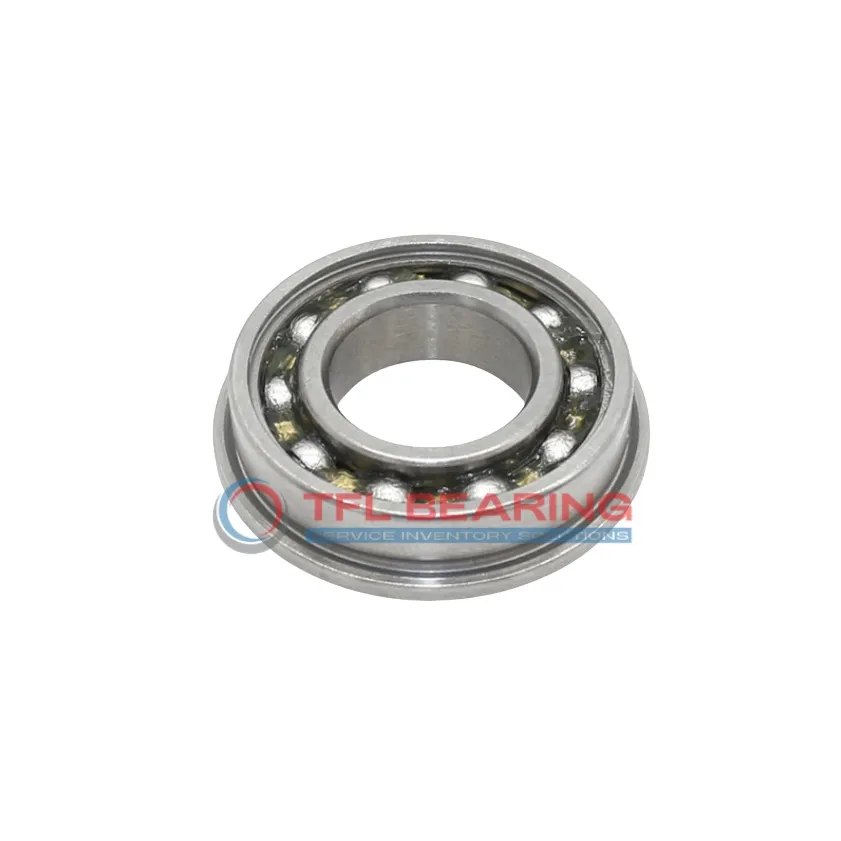

The F6809 is a standard flanged ball bearing with a 45mm bore and 58mm outer diameter, featuring a compact width of just 7mm. Its chrome steel construction ensures durability, while the stainless steel cage adds longevity.
This bearing handles radial loads up to 1391 lbf and can spin at speeds up to 11000 RPM, making it suitable for high-speed applications. The open design allows for easy lubrication, essential for smooth operation.
The flange provides extra stability, with a 61mm outer diameter and 1.5mm thickness, helping the bearing stay securely in place. It operates well in temperatures from -30°C to 110°C, fitting various industrial environments.
Ideal for machinery where space is limited but performance is key, such as small motors or conveyor systems. Compliant with RoHS and REACH standards, it’s a reliable choice for engineers and maintenance teams.
"*" indicates required fields
Performance Features of F6809 Bearing
F6809 Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 1391 lbf.
Its stainless steel cage ensures smooth operation, even at high speeds of 11,000 rpm.
The single-row design with a standard inner ring makes it versatile for various applications.
With a temperature range of -30° to 110°C, it performs reliably in different environments.
How Is F6809 Bearing Engineered for Reliability?
F6809 Bearing features a flanged outer design, providing secure mounting and alignment.
The chrome steel construction enhances durability, while the open seal type allows for easy lubrication.
Its ABEC-1 tolerance class ensures consistent performance in precision tasks.
The radial clearance of 0.002mm to 0.013mm contributes to smooth and efficient operation.
Designed for Durability: F6809 Bearing
F6809 Bearing’s 300 series stainless steel shield protects against contaminants, extending its lifespan.
With 21 chrome steel balls, it distributes loads evenly, reducing wear and tear.
The flange outer diameter of 61 mm offers additional stability in mounting.
Its static radial load capacity of 1210 lbf makes it suitable for demanding applications.
Industrial Uses of F6809 Bearing
F6809 Bearing is commonly used in conveyor systems, where its flanged design helps maintain alignment under radial loads. The open seal allows for easy lubrication, extending service life in dusty environments.
In automotive applications, F6809 Bearing fits well in electric window mechanisms due to its compact 7mm width. The chrome steel construction ensures smooth operation even with frequent use.
For small robotics, F6809 Bearing’s lightweight build and ABEC-1 tolerance make it suitable for precision joints. The stainless steel cage adds durability without significantly increasing weight.
Where Is F6809 Bearing Used?
You’ll often spot F6809 Bearing in office printers, supporting paper feed rollers with its reliable radial load capacity. The metric sizing ensures compatibility with most European-designed machinery.
In home appliances like washing machines, F6809 Bearing handles moderate loads in pump assemblies. Its temperature range covers typical household usage without performance drops.
Built for Heavy-Duty Use: F6809 Bearing
F6809 Bearing works well in agricultural equipment, where the flange prevents misalignment during vibration. The C0 clearance provides enough play for thermal expansion in outdoor conditions.
For packaging machinery, F6809 Bearing’s 11,000 rpm limit suits high-speed labeling units. Regular lubrication keeps it running smoothly through long production shifts.
Light-Duty vs Heavy-Duty: Best Uses for F6809 Bearing
In light-duty scenarios like camera gimbals, F6809 Bearing offers precise movement thanks to its 21-ball design. The stainless steel components resist corrosion in humid environments.
For heavier applications like small gearboxes, F6809 Bearing’s dynamic load rating handles intermittent shocks. The 45mm bore fits standard motor shafts in industrial settings.
