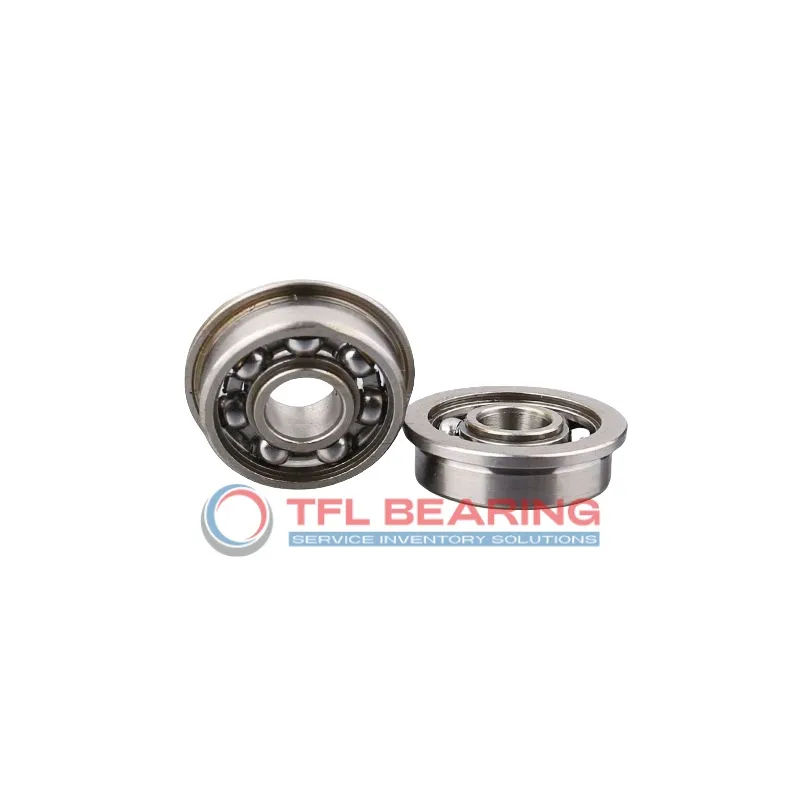

The F6800 is a compact flanged ball bearing with a 10mm bore and 19mm outer diameter, measuring just 5mm in width. Its chrome steel construction ensures durability, while the stainless steel cage adds strength.
This bearing handles radial loads up to 387 lbf and spins smoothly at speeds up to 34,000 RPM. The open design allows for easy lubrication, making maintenance straightforward.
The flange provides extra stability, helping the bearing stay securely in place during operation. It works well in temperatures from -30°C to 110°C, suitable for various environments.
Ideal for small machinery or devices where space is limited, such as electric motors or precision instruments. Compliant with RoHS and REACH standards, it’s a reliable choice for everyday applications.
"*" indicates required fields
Performance Features of F6800 Bearing
F6800 Bearing is built with chrome steel rings and balls, offering reliable radial load support up to 387 lbf.
Its compact size of 10 mm×21 mm×5 mm makes it suitable for space-constrained applications.
The stainless steel cage ensures smooth operation and reduces wear, even at high speeds of 34,000 rpm.
With a temperature range of -30° to 110°C, F6800 Bearing performs well in various environments.
How Does F6800 Bearing Reduce Friction?
F6800 Bearing features a precision-engineered single-row design, minimising friction for smoother rotation.
The chrome steel construction and stainless steel cage work together to reduce wear and extend service life.
Its ABEC-1 tolerance class ensures consistent performance, while the open seal design simplifies maintenance.
With a radial clearance of 0.002mm to 0.013mm, it balances precision and durability.
Engineered for Precision: F6800 Bearing
F6800 Bearing’s 10-ball design and 2.381 mm ball diameter provide excellent load distribution.
The flange outer diameter of 21 mm adds stability, making it ideal for radial load applications.
Its dynamic radial load capacity of 387 lbf ensures reliable performance in demanding conditions.
The bearing operates efficiently within a wide temperature range, from -30° to 110°C.
Steel vs Ceramic Bearings: Strengths of F6800 Bearing
F6800 Bearing uses chrome steel for both rings and balls, offering a cost-effective yet durable solution.
The stainless steel cage enhances longevity, making it a practical choice for various industrial uses.
With a maximum speed of 34,000 rpm, it delivers reliable performance without compromising on efficiency.
Its compact and lightweight design is perfect for applications where space and weight are critical factors.
Industrial Uses of F6800 Bearing
F6800 Bearing is commonly used in small industrial machinery, such as compact pumps and light-duty gearboxes, where its flanged design helps with easy mounting. The chrome steel construction ensures durability in continuous operation environments.
Where Is F6800 Bearing Used?
You’ll often find F6800 Bearing in automotive applications like small electric motors or dashboard components, thanks to its compact size and reliable radial load handling. Its open seal design allows for straightforward lubrication, keeping maintenance simple.
Perfect Fit for Automation: F6800 Bearing
In robotics and automation, F6800 Bearing works well in precision joints and small actuators due to its low-profile design and smooth operation. The stainless steel cage adds resistance to wear, making it suitable for repetitive movements.
Medical vs Industrial: Where F6800 Bearing Excels
F6800 Bearing is versatile enough for medical devices like handheld surgical tools, where its small size and accuracy are key. Meanwhile, in industrial settings, it’s a go-to for conveyor rollers and light assembly lines.
Key Fields for F6800 Bearing
Consumer electronics, such as cooling fans in laptops, benefit from F6800 Bearing’s quiet performance and compact dimensions. The ABEC-1 tolerance ensures consistent operation without unnecessary noise or vibration.
