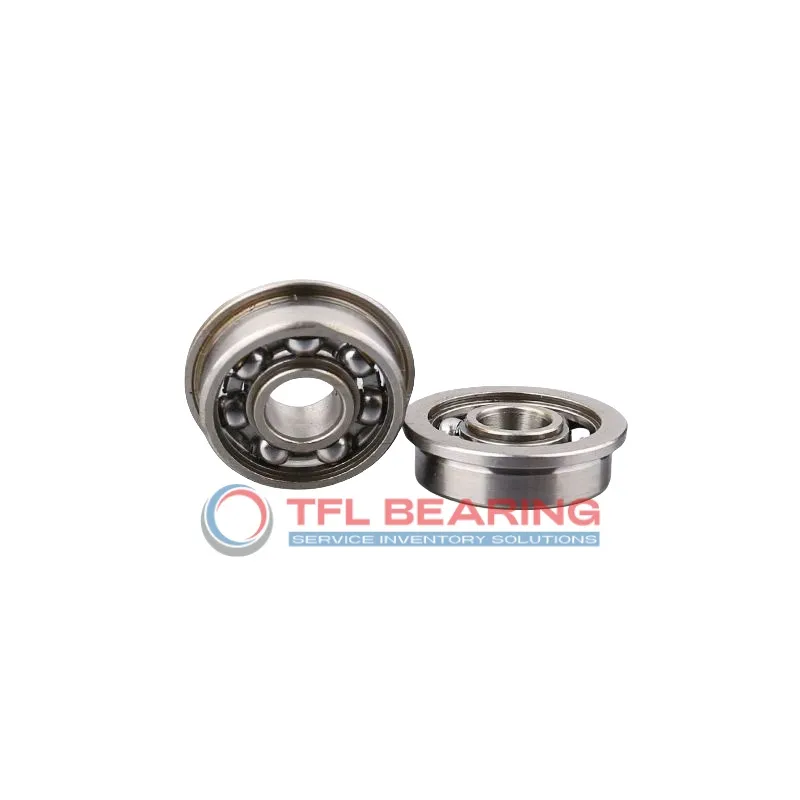

The F6701 is a compact flanged ball bearing with a 12mm bore and 18mm outer diameter, featuring a slim 4mm width. Its chrome steel construction ensures durability, while the stainless steel cage adds strength.
This bearing handles radial loads up to 209 lbf and can spin at speeds reaching 13000 RPM. The open design allows for easy lubrication, maintaining smooth operation.
The flange provides secure mounting, preventing slippage during use. It operates efficiently in temperatures from -30°C to 110°C, making it versatile for various environments.
Ideal for small machinery or precision equipment where space is limited. Compliant with RoHS and REACH standards, it’s a reliable choice for both industrial and maintenance applications.
"*" indicates required fields
How Does F6701 Bearing Reduce Friction?
F6701 Bearing features chrome steel rings and balls, ensuring smooth operation with minimal friction.
Its precision design includes 13 balls of 1.588 mm diameter, optimising load distribution for efficiency.
The open seal type allows easy lubrication, maintaining performance across a temperature range of -30° to 110°C.
With a maximum speed of 13,000 rpm, it balances speed and durability in radial load applications.
The stainless steel cage keeps the balls aligned, reducing wear and extending service life.
F6701 Bearing’s compact size (12 mm×19 mm×4 mm) makes it ideal for space-constrained applications.
Industrial Uses of F6701 Bearing
F6701 Bearing is commonly used in small industrial equipment like compact pumps and electric motors, where its 12 mm bore and 4 mm width fit snugly into tight spaces. The chrome steel construction ensures durability even in continuous operation.
Where Is F6701 Bearing Used?
You’ll often find F6701 Bearing in automotive applications such as small gearboxes or throttle systems, thanks to its radial load capacity and compact design. The open seal allows for easy lubrication, keeping performance smooth over time.
Perfect Fit for Automation: F6701 Bearing
In robotics and automation, F6701 Bearing works well in lightweight robotic arms or 3D printers, where precision and low friction are key. The stainless steel cage adds extra resistance to wear in high-movement scenarios.
Medical vs Industrial: Where F6701 Bearing Excels
While F6701 Bearing handles industrial tools reliably, it’s also suited for medical devices like dental handpieces, where its small size and smooth operation matter. The ABEC-1 tolerance ensures consistent performance in sensitive settings.
Light-Duty vs Heavy-Duty: Best Uses for F6701 Bearing
F6701 Bearing shines in light-duty applications like office printers or small fans, where its radial load capacity is ample. For heavier tasks, pairing it with additional support ensures longevity.
