Stainless Steel Deep Groove Ball Bearings W6003-2Z W/MOLYKOTE G-4500
Stainless Steel Deep Groove Ball Bearings W6003-2Z W/MOLYKOTE G-4500

Stainless Steel Deep Groove Ball Bearings W6003-2Z W/MOLYKOTE G-4500

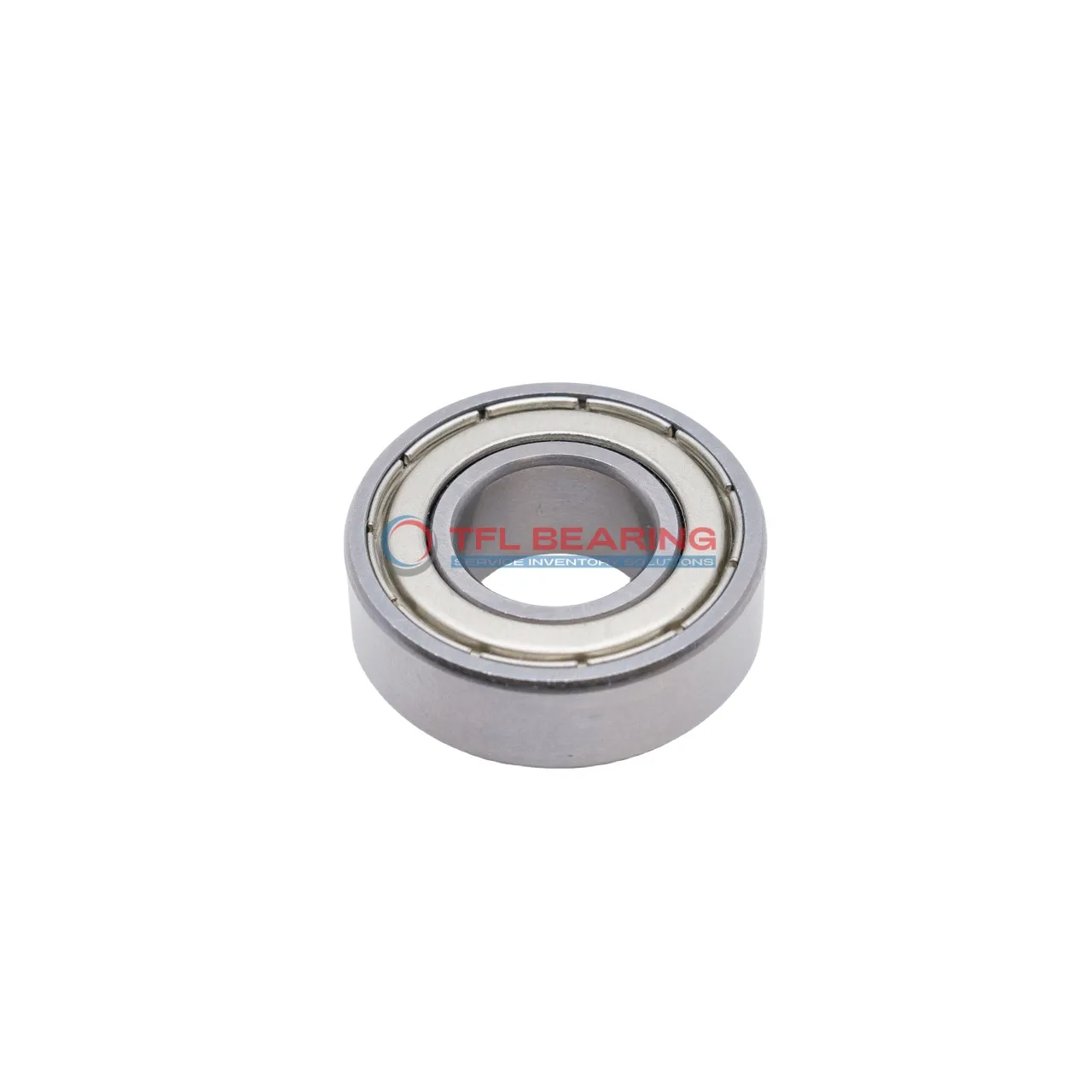

The W6003-2Z is a stainless steel deep groove ball bearing with a 17mm bore and 35mm outer diameter, measuring 10mm wide. Its shielded design keeps dirt out while the Molykote G-4500 lubrication ensures smooth operation.

This bearing handles radial loads up to 1349 lbf and spins at speeds up to 21000 RPM. Made entirely of stainless steel, it resists corrosion and works in temperatures from -30°C to 120°C.

The single-row construction makes it compact yet durable, ideal for applications like food processing equipment or marine environments. It’s interchangeable with SKF bearings for easy replacement.

Weighing just 39g, this ABEC 1 rated bearing offers reliable performance in harsh conditions. Compliant with REACH standards for safe use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number W6003-2Z W/MOLYKOTE G-4500
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 17 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 35 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 10 mm
  • Width Tolerance -0.120mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 1349 lbf
  • Static Radial Load 731 lbf
  • Temperature Range -30°to 120 °C
  • REACH Compliant
  • Max Speed 21000 rpm
  • Weight 39 g

Features

How Does W6003-2Z W/MOLYKOTE G-4500 Bearing Reduce Friction?

W6003-2Z W/MOLYKOTE G-4500 Bearing features stainless steel rings and balls, ensuring smooth operation with minimal friction.
Its shielded design helps retain lubrication, reducing wear and extending service life.
The bearing’s dynamic radial load capacity of 1349 lbf makes it suitable for various radial load applications.
With a maximum speed of 21,000 rpm, it offers reliable performance in high-speed conditions.

Application

Industrial Uses of W6003-2Z W/MOLYKOTE G-4500 Bearing
W6003-2Z W/MOLYKOTE G-4500 Bearing is commonly used in food processing equipment, where its stainless steel construction resists corrosion from frequent washdowns. The shielded design keeps contaminants out while maintaining smooth rotation.

In automotive applications, W6003-2Z W/MOLYKOTE G-4500 Bearing works well in electric window mechanisms and small gearboxes. Its compact size and radial load capacity make it a reliable choice for tight spaces.

For home appliances like washing machines, W6003-2Z W/MOLYKOTE G-4500 Bearing handles moderate loads while operating quietly. The Molykote G-4500 lubrication ensures long service life even with frequent use.

Where Is W6003-2Z W/MOLYKOTE G-4500 Bearing Used?
You’ll often find W6003-2Z W/MOLYKOTE G-4500 Bearing in medical devices like dental handpieces, where its precision rotation matters. The stainless steel materials meet hygiene requirements for clinical environments.

In industrial fans, W6003-2Z W/MOLYKOTE G-4500 Bearing supports continuous operation with minimal maintenance. Its ABEC 1 tolerance provides sufficient precision for most general machinery applications.

Built for Versatility: W6003-2Z W/MOLYKOTE G-4500 Bearing
W6003-2Z W/MOLYKOTE G-4500 Bearing adapts well to laboratory equipment like centrifuges, balancing speed and reliability. The chrome steel cage adds durability without significantly increasing weight.

For small electric motors in power tools, W6003-2Z W/MOLYKOTE G-4500 Bearing offers good performance at high speeds. The 21,000 rpm maximum rating suits various DIY and professional applications.
