Stainless Steel Deep Groove Ball Bearings W 6206
Stainless Steel Deep Groove Ball Bearings W 6206

Stainless Steel Deep Groove Ball Bearings W 6206

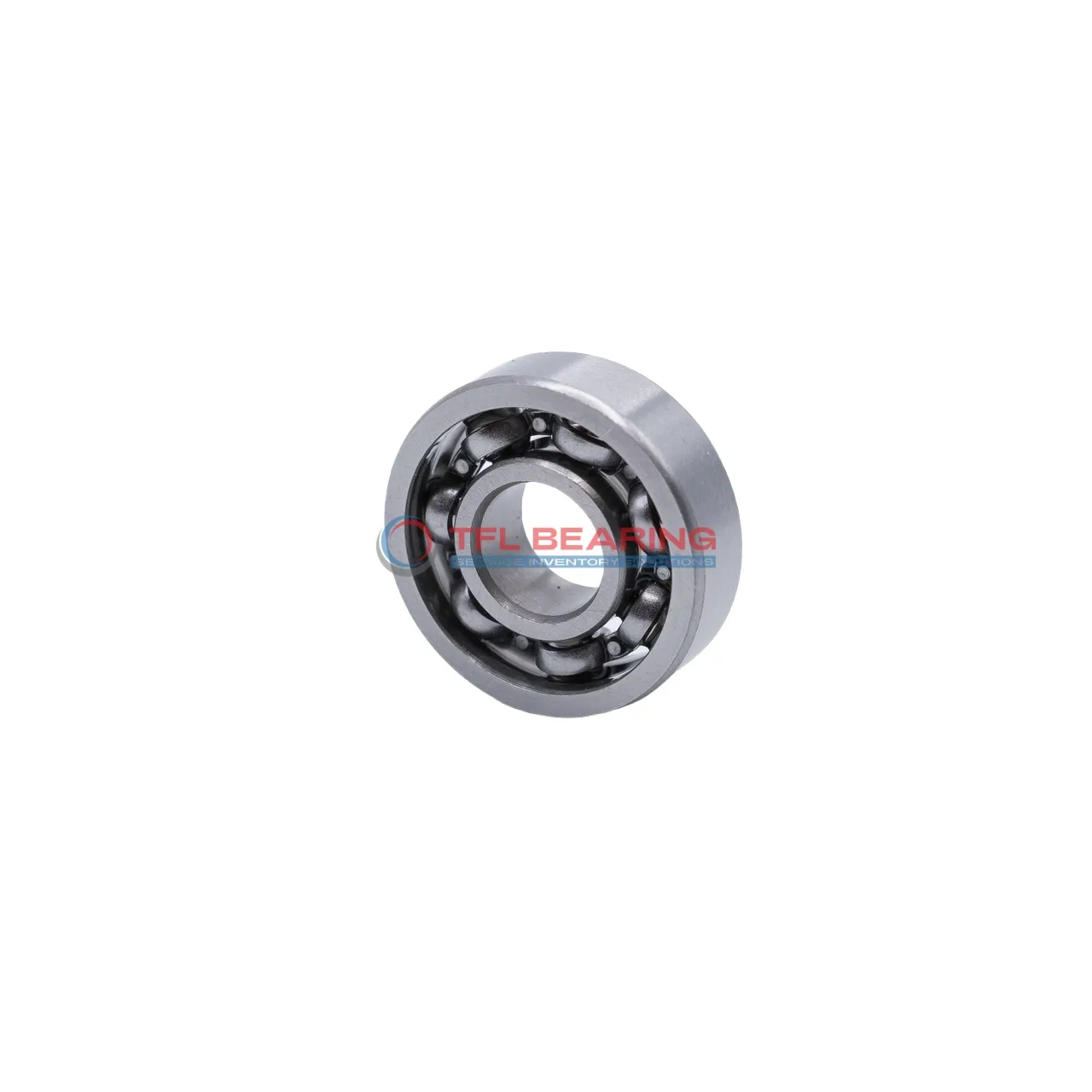

The W 6206 is a stainless steel deep groove ball bearing with a 30mm bore and 62mm outer diameter, designed for radial loads. It handles dynamic loads up to 3709 lbf and operates smoothly at speeds up to 16,000 RPM.

Its open design allows for easy lubrication, while the all-stainless steel construction ensures corrosion resistance. The bearing performs reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like food processing or marine equipment where rust resistance is key.

Weighing just 0.19kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number W 6206
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 16 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 3709 lbf
  • Static Radial Load 2518 lbf
  • Temperature Range -30° to 120 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 16000 rpm
  • Weight 0.19 kg

Features

Why Choose W 6206 Bearing for Precision Tasks?

W 6206 Bearing is crafted from stainless steel, offering excellent resistance to corrosion and wear.
Its single-row design ensures smooth radial load handling, making it ideal for precision applications.

The bearing’s dynamic radial load capacity of 3709 lbf provides reliable performance under stress.
With a maximum speed of 16,000 rpm, it balances speed and durability for various uses.

W 6206 Bearing operates efficiently in temperatures from -30° to 120°C, adapting to different environments.
Its open design simplifies maintenance, reducing downtime and operational costs.

Application

Industrial Uses of W 6206 Bearing
W 6206 Bearing is commonly used in industrial settings like pumps and electric motors, where its stainless steel construction resists corrosion. The open design allows for easy lubrication, ensuring long service life in demanding conditions.

What Makes W 6206 Bearing a Preferred Choice?
In automotive applications, W 6206 Bearing fits well in alternators and water pumps due to its radial load capacity. Its metric sizing makes it a versatile option for various vehicle models.

Perfect Fit for Automation: W 6206 Bearing
For robotic arms and automated systems, W 6206 Bearing offers smooth rotation and low friction. The stainless steel materials ensure reliability in high-precision tasks.

Medical vs Industrial: Where W 6206 Bearing Excels
In medical devices like centrifuges, W 6206 Bearing provides quiet and stable operation. Its corrosion-resistant properties also make it suitable for food processing equipment.

Where to Use W 6206 Bearing
In household appliances like washing machines, W 6206 Bearing ensures quiet and efficient performance. The durable design handles daily wear without compromising reliability.
