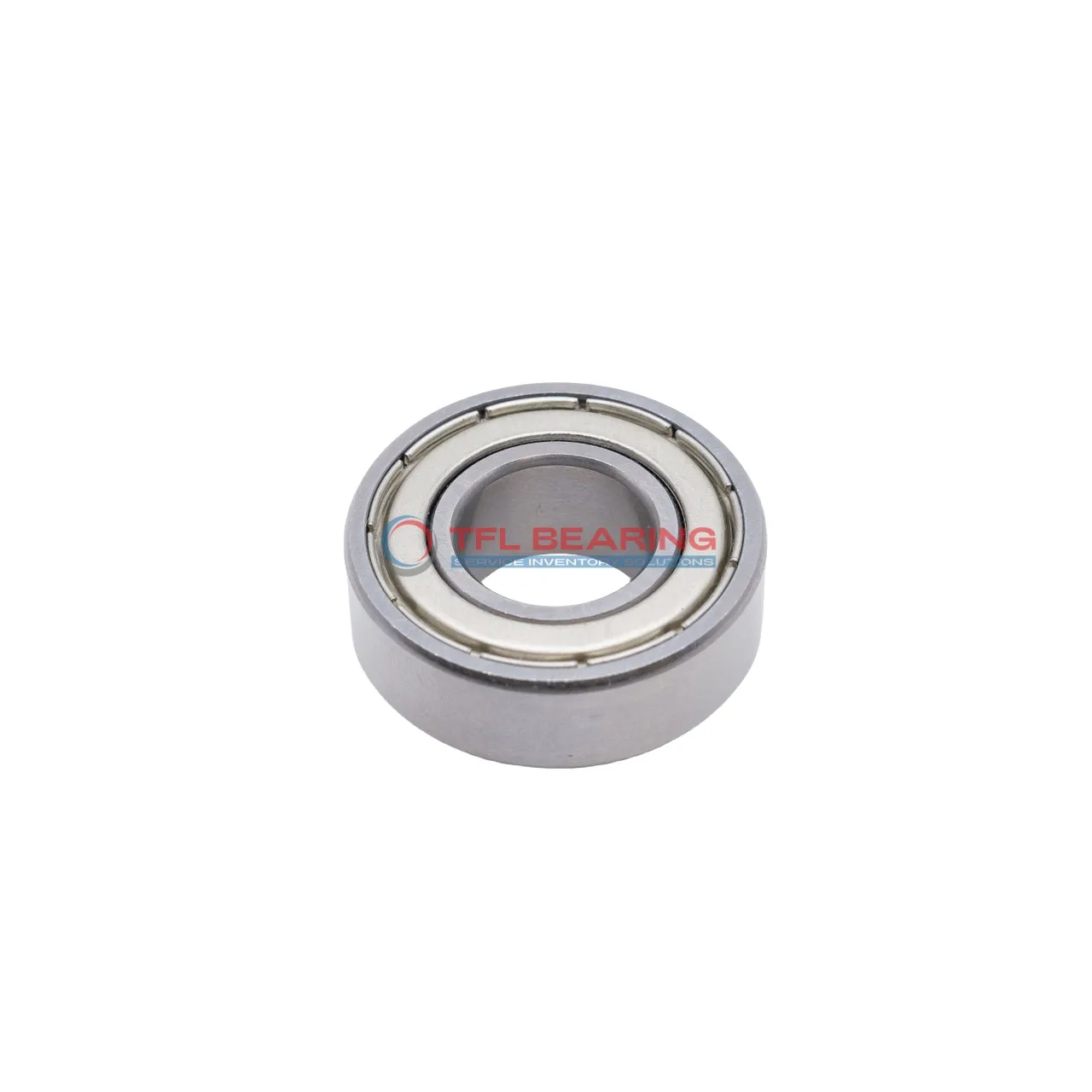

Stainless Steel Deep Groove Ball Bearings W 6202-2Z
Stainless Steel Deep Groove Ball Bearings W 6202-2Z

Stainless Steel Deep Groove Ball Bearings W 6202-2Z

The W 6202-2Z is a stainless steel deep groove ball bearing, measuring 15mm by 35mm by 11mm. It handles radial loads up to 1432 lbf and can spin at speeds up to 24,000 RPM.

Its shielded design keeps grease in and dirt out, making it low-maintenance. The all-stainless construction ensures good corrosion resistance and durability.

This model works in temperatures from -30°C to 120°C and is interchangeable with SKF bearings. It’s a reliable choice for food processing equipment or marine applications.

Weighing just 44 grams, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number W 6202-2Z
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 15 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 35 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 11 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 1432 lbf
  • Static Radial Load 809 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 24000 rpm
  • Weight 0.044 kg
  • Price($) 18.16

Features

Why Choose W 6202-2Z Bearing for Precision Tasks?

W 6202-2Z Bearing features stainless steel construction, ensuring resistance to corrosion and long-lasting performance.
Its shielded design keeps contaminants out while retaining lubrication for smooth operation.
With a dynamic radial load capacity of 1432 lbf, it handles demanding radial loads with ease.
The bearing’s high-speed capability of 24,000 rpm makes it suitable for precision applications.

Application

Where Is W 6202-2Z Bearing Used?
W 6202-2Z Bearing is commonly seen in industrial equipment like pumps and compressors, where its stainless steel construction resists corrosion. The shielded design keeps contaminants out, ensuring reliable performance in dusty or wet conditions.

In automotive applications, W 6202-2Z Bearing fits well in electric motors and alternators, thanks to its smooth radial load handling. Its metric sizing makes it a versatile choice for various vehicle models.

For home appliances, W 6202-2Z Bearing works quietly in fans and small motors, providing long-lasting operation. The grease lubrication reduces maintenance needs, making it ideal for everyday use.

How Does W 6202-2Z Bearing Support High-Speed Operations?
W 6202-2Z Bearing handles high speeds effortlessly, making it suitable for power tools and small machinery. The stainless steel balls and cage ensure minimal friction, even under continuous use.

In robotics, W 6202-2Z Bearing offers precise movement in joints and actuators. Its compact size and shielded design protect against debris, maintaining accuracy over time.

For medical devices like dental drills, W 6202-2Z Bearing provides smooth, vibration-free rotation. The corrosion-resistant materials ensure hygiene and durability in sterile environments.

Built for Versatility: W 6202-2Z Bearing
W 6202-2Z Bearing excels in food processing equipment, where stainless steel prevents rust and contamination. The shielded seals keep out moisture and particles, extending its lifespan.

In conveyor systems, W 6202-2Z Bearing reduces downtime with its durable design. The grease lubrication ensures consistent performance, even in high-load scenarios.

For DIY projects, W 6202-2Z Bearing is a reliable choice for small motors and rotating parts. Its easy installation and low maintenance make it popular among hobbyists.
