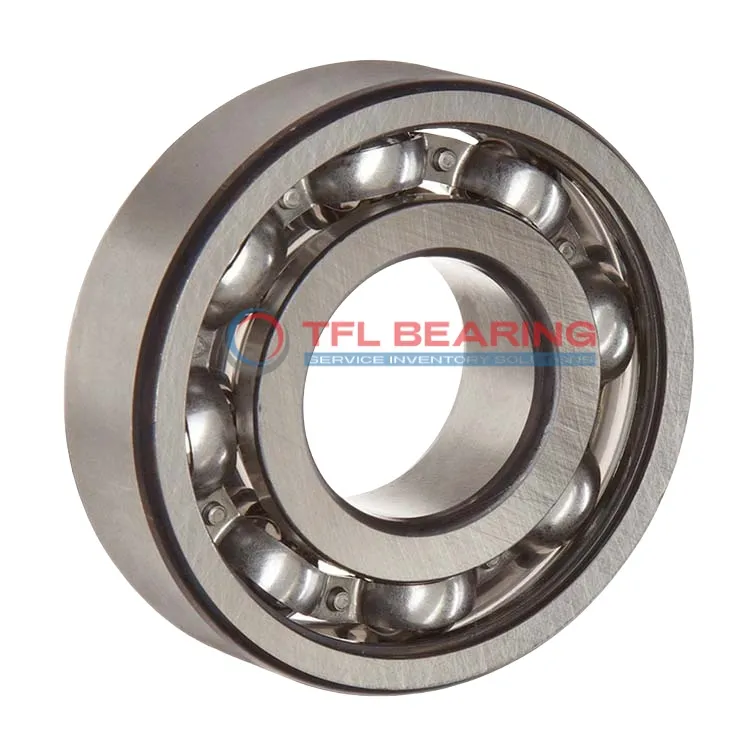

Stainless Steel Deep Groove Ball Bearings W 6201/C3
Stainless Steel Deep Groove Ball Bearings W 6201/C3

Stainless Steel Deep Groove Ball Bearings W 6201/C3

The W 6201/C3 is a stainless steel deep groove ball bearing with a 12mm bore and 32mm outer diameter, designed for radial loads. Its compact size (12mm×32mm×10mm) makes it suitable for tight spaces.

It handles dynamic radial loads up to 1286 lbf and spins smoothly at speeds up to 34,000 RPM. The open design allows for easy lubrication and maintenance.

Made entirely from stainless steel, it resists corrosion and works well in temperatures from -30°C to 120°C. The chrome steel cage adds durability.

Ideal for applications like small motors or pumps where reliability is key. It’s interchangeable with SKF bearings, offering a practical replacement option. Weighing just 0.034kg, it’s lightweight yet sturdy.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number W 6201/C3
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 12 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 32 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 10 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 1286 lbf
  • Static Radial Load 674 lbf
  • Temperature Range -30°to 120 °C
  • REACH Compliant
  • Max Speed 34000 rpm
  • Weight 0.034 kg

Features

Why Choose W 6201/C3 Bearing for Precision Tasks?

W 6201/C3 Bearing features stainless steel rings and balls, offering excellent corrosion resistance for long-lasting performance.

Its ABEC 1 tolerance ensures smooth operation, making it ideal for precision applications.

With a dynamic radial load capacity of 1286 lbf, it handles demanding radial loads reliably.

The open design allows for easy lubrication, maintaining efficiency even at high speeds up to 34,000 rpm.

Application

Industrial Uses of W 6201/C3 Bearing
W 6201/C3 Bearing is commonly used in industrial machinery like pumps and electric motors, where its stainless steel construction resists corrosion. The open design and C3 clearance allow for smooth operation in varying temperatures.

Where Is W 6201/C3 Bearing Used?
In automotive applications, W 6201/C3 Bearing fits well in alternators and small gearboxes, thanks to its radial load capacity. Its metric sizing ensures compatibility with many European and Asian vehicle components.

Perfect Fit for Automation: W 6201/C3 Bearing
For robotics and automation systems, W 6201/C3 Bearing offers reliable performance in joints and small actuators. The stainless steel balls reduce friction, making it ideal for precision movements.

Medical vs Industrial: Where W 6201/C3 Bearing Excels
In medical devices like dental drills, W 6201/C3 Bearing provides quiet and efficient operation. Its corrosion-resistant materials also make it suitable for lab equipment exposed to chemicals.

Essential Roles of W 6201/C3 Bearing
W 6201/C3 Bearing is a go-to choice for household appliances like washing machines, where durability matters. The chrome steel cage adds strength, ensuring long service life even with frequent use.
