Stainless Steel Deep Groove Ball Bearings W 6201-2RS1
Stainless Steel Deep Groove Ball Bearings W 6201-2RS1

Stainless Steel Deep Groove Ball Bearings W 6201-2RS1

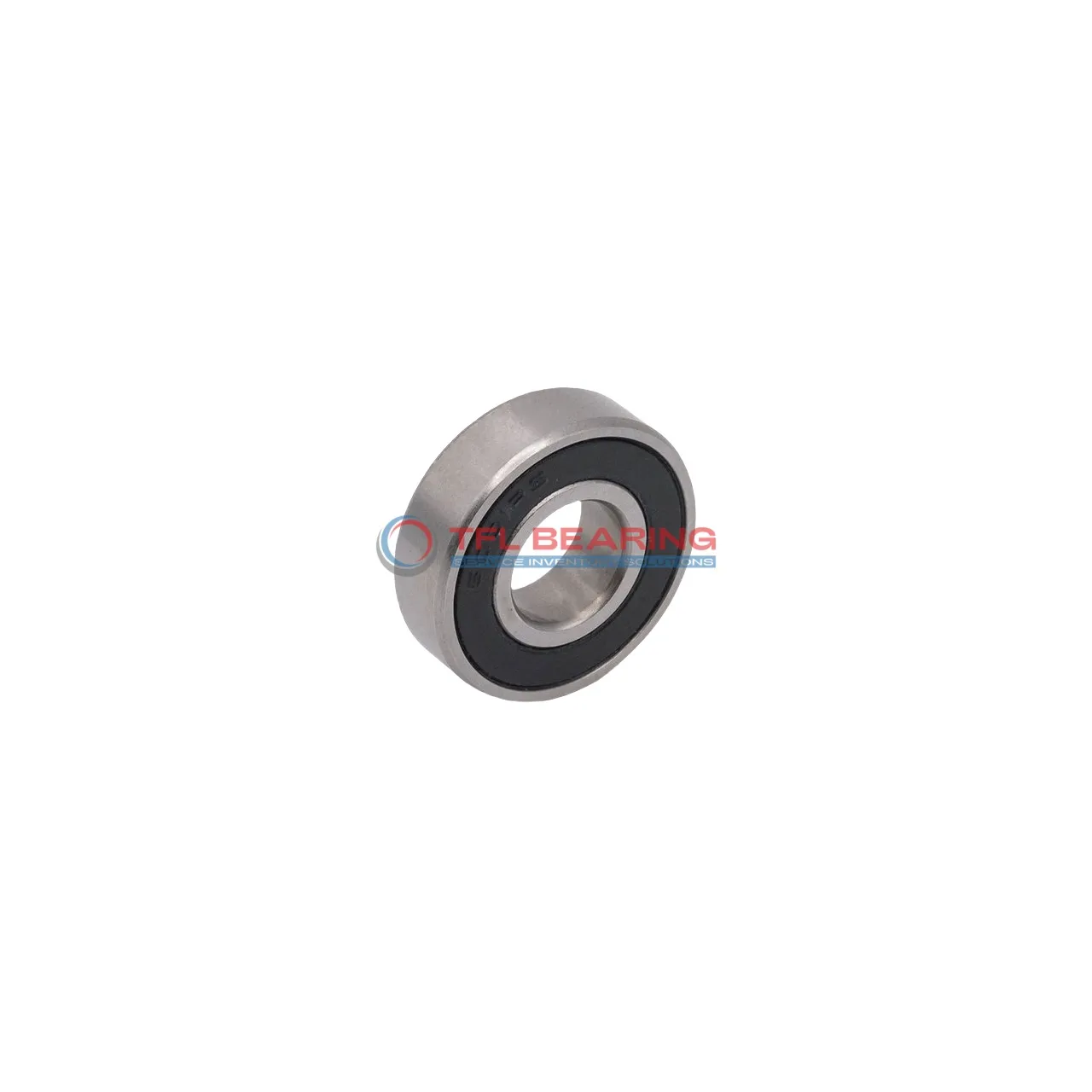

The W 6201-2RS1 is a compact stainless steel deep groove ball bearing, measuring 12mm by 32mm by 10mm. It handles radial loads up to 1286 lbf and can spin at speeds up to 15000 RPM, making it both strong and fast.

Its sealed design keeps grease in and dirt out, reducing maintenance needs. The all-stainless construction ensures good corrosion resistance, even in damp or harsh environments.

This bearing works well in temperatures from -30°C to 120°C, suitable for various conditions. It’s interchangeable with SKF models, offering easy replacement options.

Ideal for small machinery, electric motors, or food processing equipment where hygiene matters. Weighing just 36 grams, it’s lightweight yet durable for its size. Compliant with RoHS and REACH standards.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number W 6201-2RS1
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 12 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 32 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 10 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 1286 lbf
  • Static Radial Load 674 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 15000 rpm
  • Weight 0.036 kg
  • Price($) 10.12

Features

How Does W 6201-2RS1 Bearing Reduce Friction?

W 6201-2RS1 Bearing features a sealed design with stainless steel components, ensuring smooth operation and reduced friction.
The deep groove raceway enhances load distribution, making it suitable for radial applications.

Its dynamic radial load capacity of 1286 lbf ensures reliable performance under stress.
The grease lubrication and sealed construction minimise maintenance needs while extending service life.

With a maximum speed of 15,000 rpm, W 6201-2RS1 Bearing balances efficiency and durability.
The stainless steel material also provides excellent resistance to corrosion in various environments.

Application

Common Applications of W 6201-2RS1 Bearing
W 6201-2RS1 Bearing is widely used in industrial equipment like conveyor systems and small machinery, where its sealed design keeps contaminants out. The stainless steel construction ensures it performs well in damp or corrosive environments.

In automotive applications, W 6201-2RS1 Bearing fits well in electric motors and auxiliary units, providing smooth rotation under radial loads. Its compact size and metric dimensions make it easy to integrate into various vehicle designs.

For home appliances, W 6201-2RS1 Bearing works reliably in devices like fans and small electric tools. The grease lubrication and sealed design mean it requires minimal maintenance over its lifespan.

Medical devices also benefit from W 6201-2RS1 Bearing’s precision and resistance to corrosion, particularly in handheld instruments. The consistent performance ensures accuracy in sensitive applications.
