Stainless Steel Deep Groove Ball Bearings W 6200-2Z
Stainless Steel Deep Groove Ball Bearings W 6200-2Z

Stainless Steel Deep Groove Ball Bearings W 6200-2Z

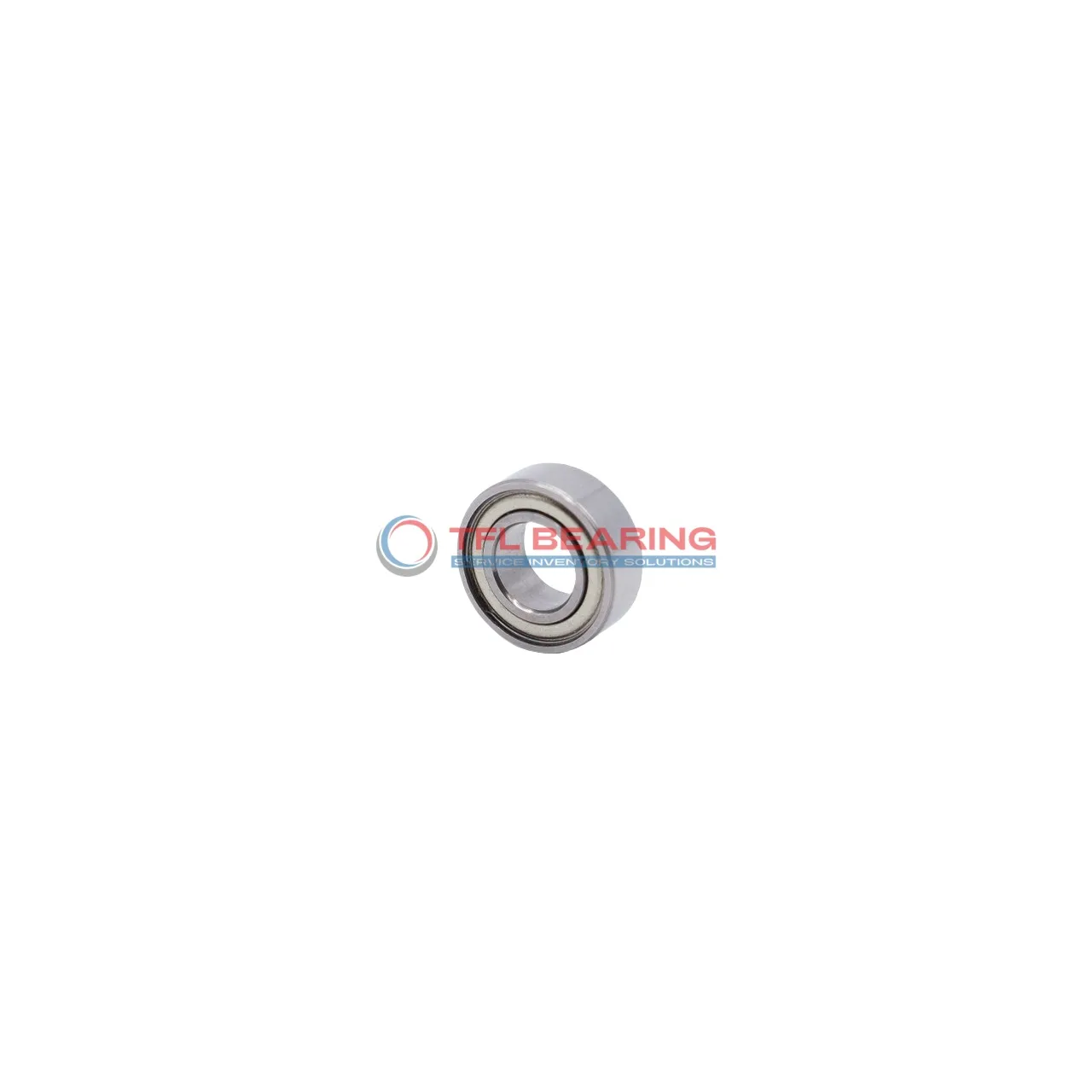

The W 6200-2Z is a compact stainless steel deep groove ball bearing, measuring 10mm by 30mm by 9mm. It handles radial loads up to 980 lbf and spins smoothly at speeds up to 30,000 RPM.

Its shielded design keeps dirt out while retaining grease, making it low-maintenance. The all-stainless construction resists corrosion, ideal for damp or harsh environments.

This bearing works in temperatures from -30°C to 120°C and comes pre-lubricated with grease. It’s interchangeable with SKF models for easy replacement.

Perfect for small machinery, electric motors, or food processing equipment where hygiene matters. Weighing just 0.03kg, it’s lightweight yet durable for its size. Compliant with RoHS and REACH standards.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number W 6200-2Z
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 10 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 30 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 9 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 980 lbf
  • Static Radial Load 522 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 30000 rpm
  • Weight 0.03 kg
  • Price($) 14.51

Features

How Is W 6200-2Z Bearing Engineered for Reliability?

W 6200-2Z Bearing features stainless steel rings and balls, ensuring resistance to corrosion and wear.
Its shielded design protects against contaminants, making it suitable for various environments.
With a dynamic radial load capacity of 980 lbf, it handles demanding radial loads efficiently.
The grease lubrication and high-speed capability of 30,000 rpm ensure smooth, long-lasting performance.

Application

Industrial Uses of W 6200-2Z Bearing
W 6200-2Z Bearing is commonly used in industrial machinery like pumps and electric motors, where its shielded design helps keep contaminants out. The stainless steel construction ensures it performs well in humid or corrosive environments.

What Makes W 6200-2Z Bearing a Preferred Choice?
In automotive applications, W 6200-2Z Bearing works well in small electric motors and gearboxes due to its compact size and reliable radial load capacity. Its metric dimensions make it easy to integrate into various designs.

Built for Versatility: W 6200-2Z Bearing
For medical devices, W 6200-2Z Bearing’s smooth operation and corrosion resistance make it suitable for precision instruments like dental drills. The grease lubrication ensures quiet and consistent performance.

Automotive vs Industrial: Applications of W 6200-2Z Bearing
In household appliances like fans and washing machines, W 6200-2Z Bearing offers durability and low maintenance. Its shielded seals help extend service life by preventing dust ingress.

Key Fields for W 6200-2Z Bearing
W 6200-2Z Bearing is ideal for robotics and automation, where its high-speed capability and reliability are valued. The stainless steel materials ensure it can handle frequent use without wear issues.
