Stainless Steel Deep Groove Ball Bearings W 6200-2RS1/W64
Stainless Steel Deep Groove Ball Bearings W 6200-2RS1/W64

Stainless Steel Deep Groove Ball Bearings W 6200-2RS1/W64

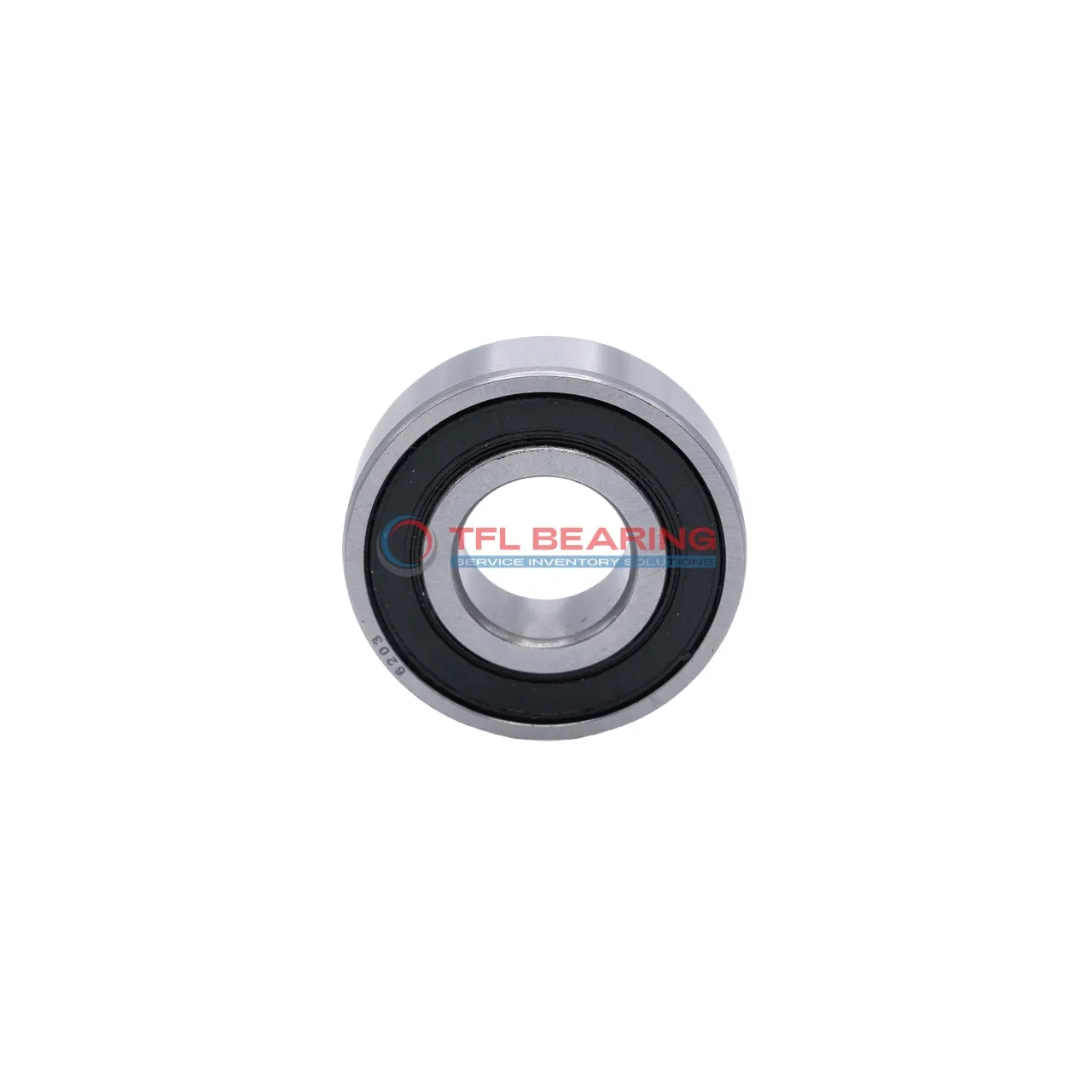

The W 6200-2RS1/W64 is a compact stainless steel deep groove ball bearing, measuring 10mm by 30mm by 9mm. It handles radial loads up to 980 lbf and spins smoothly at speeds up to 36,000 RPM.

Its sealed design keeps dirt out and solid oil lubrication ensures long-lasting performance without frequent maintenance. The stainless steel construction resists corrosion, making it suitable for humid or wet environments.

This bearing is interchangeable with SKF models, offering a reliable replacement option. It works well in temperatures from -30°C to 120°C, fitting applications like small motors or food processing equipment.

Weighing just 0.029kg, it’s lightweight yet durable for its size. Compliant with REACH standards for safe use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number W 6200-2RS1/W64
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 10 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 30 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 9 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 980 lbf
  • Static Radial Load 522 lbf
  • Temperature Range -30°to 120 °C
  • Lubrication Soild Oil
  • REACH Compliant
  • Max Speed 36000 rpm
  • Weight 0.029 kg

Features

Why Choose W 6200-2RS1/W64 Bearing for Precision Tasks?

W 6200-2RS1/W64 Bearing is crafted with stainless steel rings and balls, ensuring smooth and precise operation.
Its sealed design protects against contaminants, making it ideal for environments where cleanliness is crucial.

The solid oil lubrication reduces maintenance needs while extending the bearing’s service life.
With a maximum speed of 36,000 rpm, it delivers reliable performance in high-speed applications.

W 6200-2RS1/W64 Bearing’s ABEC 1 tolerance ensures consistent accuracy for precision tasks.
Its compact size (10 mm×30 mm×9 mm) makes it suitable for applications where space is limited.

Application

Industrial Uses of W 6200-2RS1/W64 Bearing
W 6200-2RS1/W64 Bearing is commonly used in industrial settings, such as conveyor systems and small electric motors, where its sealed design helps keep out dust and debris. The stainless steel construction ensures it can handle moist or corrosive environments without rusting.

What Makes W 6200-2RS1/W64 Bearing a Preferred Choice?
In automotive applications, W 6200-2RS1/W64 Bearing works well in components like alternators and water pumps, thanks to its solid oil lubrication and reliable radial load capacity. Its compact size makes it easy to fit into tight spaces.

Perfect Fit for Automation: W 6200-2RS1/W64 Bearing
For automation equipment like small robotic arms, W 6200-2RS1/W64 Bearing offers smooth rotation and low maintenance due to its sealed and pre-lubricated design. The ABEC 1 tolerance ensures consistent performance in precision tasks.

Medical vs Industrial: Where W 6200-2RS1/W64 Bearing Excels
In medical devices, W 6200-2RS1/W64 Bearing is suitable for low-load instruments like dental handpieces, where hygiene and corrosion resistance are key. Meanwhile, in industrial food processing, it handles light radial loads while meeting cleanliness standards.

Where to Use W 6200-2RS1/W64 Bearing
For household appliances like fans or small power tools, W 6200-2RS1/W64 Bearing provides quiet operation and long service life. The sealed design reduces the need for frequent maintenance, making it ideal for everyday use.
