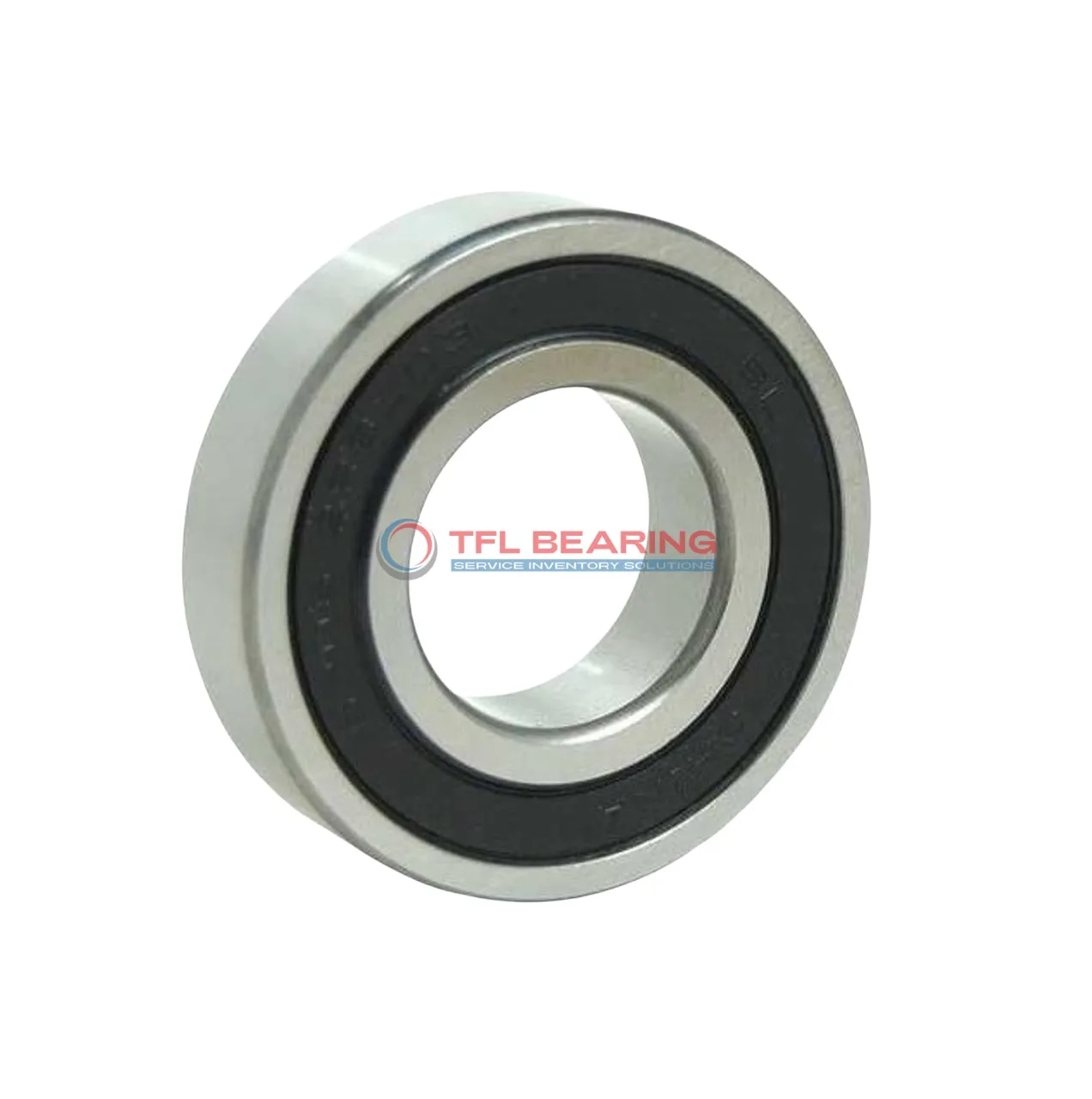

Stainless Steel Deep Groove Ball Bearings W 61809-2RZ
Stainless Steel Deep Groove Ball Bearings W 61809-2RZ

Stainless Steel Deep Groove Ball Bearings W 61809-2RZ

The W 61809-2RZ is a compact stainless steel deep groove ball bearing, measuring 45mm by 58mm by 7mm. It handles radial loads up to 1111 lbf and spins smoothly at speeds up to 12,000 RPM.

Its sealed design keeps grease in and dirt out, making it low-maintenance. The all-stainless construction ensures corrosion resistance and durability.

This bearing works in temperatures from -30°C to 120°C, suitable for various environments. It’s interchangeable with SKF models, offering a reliable replacement option.

Ideal for small machinery or appliances where space is limited. Weighing just 0.037kg, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number W 61809-2RZ
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 58 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 7 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 1111 lbf
  • Static Radial Load 1124 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 12000 rpm
  • Weight 0.037 kg

Features

How Does W 61809-2RZ Bearing Reduce Friction?

W 61809-2RZ Bearing features a sealed design with stainless steel components, ensuring smooth operation and reduced friction.
Its single-row construction and grease lubrication help maintain consistent performance even at high speeds of 12,000 rpm.
The stainless steel cage and balls resist wear, extending the bearing’s service life in radial load applications.
With a dynamic radial load capacity of 1111 lbf, it offers reliable performance in various conditions.

Application

Industrial Uses of W 61809-2RZ Bearing
W 61809-2RZ Bearing is commonly used in industrial machinery, especially in compact applications where space is limited, such as small pumps and electric motors. Its sealed design helps keep contaminants out, ensuring reliable performance in dusty environments.

In the automotive sector, W 61809-2RZ Bearing fits well in components like alternators and cooling fans, where its stainless steel construction resists corrosion. The grease lubrication also extends its service life, even under constant use.

For medical devices, W 61809-2RZ Bearing’s precision and smooth operation make it suitable for delicate equipment like dental handpieces. The P0 tolerance class ensures consistent performance in critical applications.

In home appliances, W 61809-2RZ Bearing can be found in items like washing machine pumps, where its durability and quiet operation are appreciated. The compact size and sealed design make it a practical choice for everyday use.
