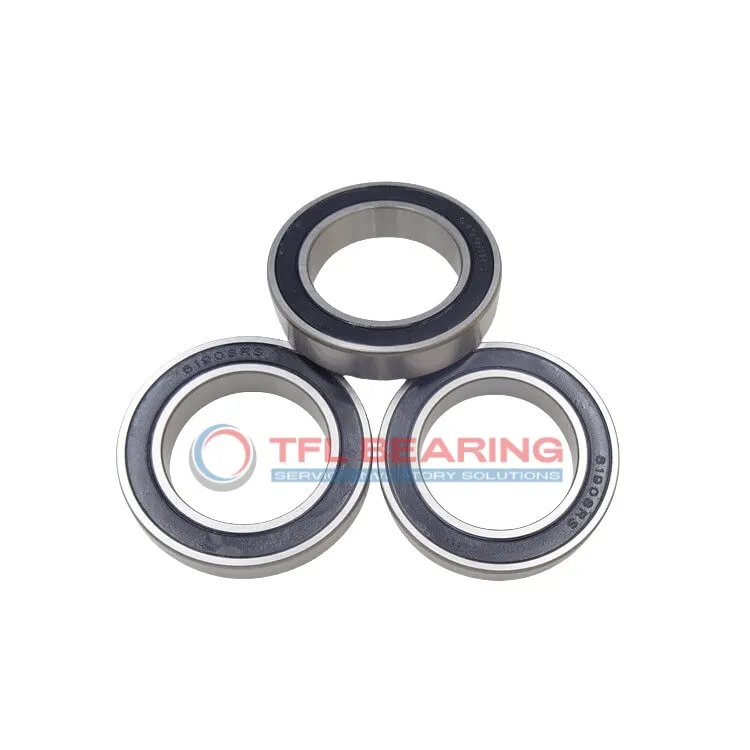

Stainless Steel Deep Groove Ball Bearings W 6010-2RS1/VT378
Stainless Steel Deep Groove Ball Bearings W 6010-2RS1/VT378

Stainless Steel Deep Groove Ball Bearings W 6010-2RS1/VT378

The W 6010-2RS1/VT378 is a stainless steel deep groove ball bearing with a 50mm bore and 80mm outer diameter, designed for radial loads. It measures 16mm in width, making it compact yet sturdy for its size.

This bearing handles dynamic radial loads up to 4271 lbf and operates smoothly at speeds up to 11000 RPM. Its sealed design keeps dirt out and lubrication in, reducing maintenance needs.

Made entirely from stainless steel, it resists corrosion and works well in temperatures from -30°C to 120°C. The chrome steel cage adds durability, ensuring long service life.

Ideal for food processing or marine applications where rust resistance is key. It’s interchangeable with SKF bearings, offering a reliable replacement option. Weighing 0.24kg, it balances strength and lightness.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number W 6010-2RS1/VT378
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 16 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 4271 lbf
  • Static Radial Load 3732 lbf
  • Temperature Range -30°to 120 °C
  • REACH Compliant
  • Max Speed 11000 rpm
  • Weight 0.24 kg

Features

Why Choose W 6010-2RS1/VT378 Bearing for Precision Tasks?

W 6010-2RS1/VT378 Bearing is crafted with stainless steel rings and balls, offering excellent resistance to corrosion and wear.
Its sealed design ensures protection against dust and moisture, making it suitable for various environments.

The dynamic radial load capacity of 4271 lbf allows W 6010-2RS1/VT378 Bearing to handle demanding applications with ease.
With a maximum speed of 11,000 rpm, it delivers reliable performance in high-speed operations.

W 6010-2RS1/VT378 Bearing’s ABEC 1 tolerance ensures smooth and precise rotation, ideal for precision instruments.
The chrome steel cage maintains ball alignment, reducing friction and extending service life.

Designed for radial loads, W 6010-2RS1/VT378 Bearing operates efficiently within a temperature range of -30° to 120°C.
Its compact size and robust construction make it a versatile choice for various industrial applications.

Application

Common Applications of W 6010-2RS1/VT378 Bearing
W 6010-2RS1/VT378 Bearing is widely used in industrial equipment like conveyor systems and pumps, where its sealed design protects against dust and debris. The stainless steel construction ensures longevity even in humid or corrosive environments.

How Does W 6010-2RS1/VT378 Bearing Improve Performance?
In automotive applications, W 6010-2RS1/VT378 Bearing enhances reliability in components like alternators and water pumps. Its radial load capacity and sealed design make it ideal for reducing maintenance needs.

Built for Heavy-Duty Use: W 6010-2RS1/VT378 Bearing
W 6010-2RS1/VT378 Bearing excels in automation systems, such as robotic arms, where precision and durability are key. The ABEC 1 tolerance ensures smooth operation in high-speed scenarios.

Medical vs Industrial: Where W 6010-2RS1/VT378 Bearing Excels
W 6010-2RS1/VT378 Bearing is suitable for medical devices like centrifuges, offering quiet and reliable performance. In industrial settings, it handles radial loads effortlessly in machinery like gearboxes.

Perfect Fit for Automation: W 6010-2RS1/VT378 Bearing
W 6010-2RS1/VT378 Bearing is a great choice for 3D printers, providing smooth motion and low friction. Its stainless steel balls and rings ensure consistent performance over time.
