Stainless Steel Deep Groove Ball Bearings W 6005-2RS1
Stainless Steel Deep Groove Ball Bearings W 6005-2RS1

Stainless Steel Deep Groove Ball Bearings W 6005-2RS1

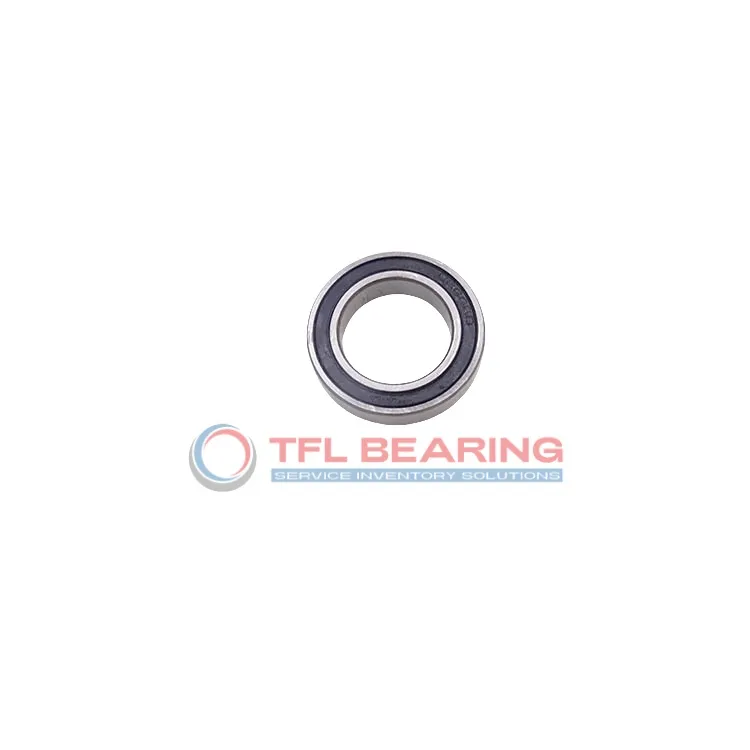

The W 6005-2RS1 is a stainless steel deep groove ball bearing, measuring 25mm by 47mm by 12mm. It handles radial loads up to 1958 lbf and spins smoothly at speeds up to 9500 RPM.

Its sealed design keeps grease in and dirt out, making it low-maintenance. The all-stainless construction ensures good corrosion resistance and durability.

This bearing works well in temperatures from -30°C to 120°C, suitable for various environments. It’s interchangeable with SKF bearings for easy replacement.

Ideal for applications like electric motors or food processing equipment where cleanliness matters. Weighing just 0.077kg, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number W 6005-2RS1
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 47 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 12 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 1958 lbf
  • Static Radial Load 1315 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 9500 rpm
  • Weight 0.077 kg
  • Price($) 15.32

Features

How Is W 6005-2RS1 Bearing Engineered for Reliability?

W 6005-2RS1 Bearing features a stainless steel construction, offering excellent resistance to corrosion and wear.
Its sealed design keeps contaminants out, ensuring smooth operation in various environments.

The dynamic radial load capacity of 1958 lbf makes it suitable for demanding radial applications.
With a maximum speed of 9,500 rpm, it delivers consistent performance under high-speed conditions.

The grease lubrication reduces friction, extending the bearing’s service life with minimal maintenance.
Its compact size (25 mm×47 mm×12 mm) allows for easy integration into different machinery setups.

Application

Industrial Uses of W 6005-2RS1 Bearing
W 6005-2RS1 Bearing is commonly used in conveyor systems and packaging machinery, where its sealed design keeps contaminants out. The stainless steel construction ensures long-lasting performance even in damp or corrosive environments.

Where Is W 6005-2RS1 Bearing Used?
In automotive applications, W 6005-2RS1 Bearing fits well in electric motors and pumps, thanks to its radial load capacity. The grease lubrication helps maintain smooth operation over extended periods.

Built for Versatility: W 6005-2RS1 Bearing
For household appliances like washing machines, W 6005-2RS1 Bearing offers quiet and reliable performance. Its compact size and metric dimensions make it easy to integrate into various designs.

Medical vs Industrial: Where W 6005-2RS1 Bearing Excels
While W 6005-2RS1 Bearing handles industrial equipment well, it also suits medical devices like dental tools due to its corrosion resistance. The sealed design ensures hygiene and reduces maintenance needs.
