Stainless Steel Deep Groove Ball Bearings W 6001-2RS1/VP311
Stainless Steel Deep Groove Ball Bearings W 6001-2RS1/VP311

Stainless Steel Deep Groove Ball Bearings W 6001-2RS1/VP311

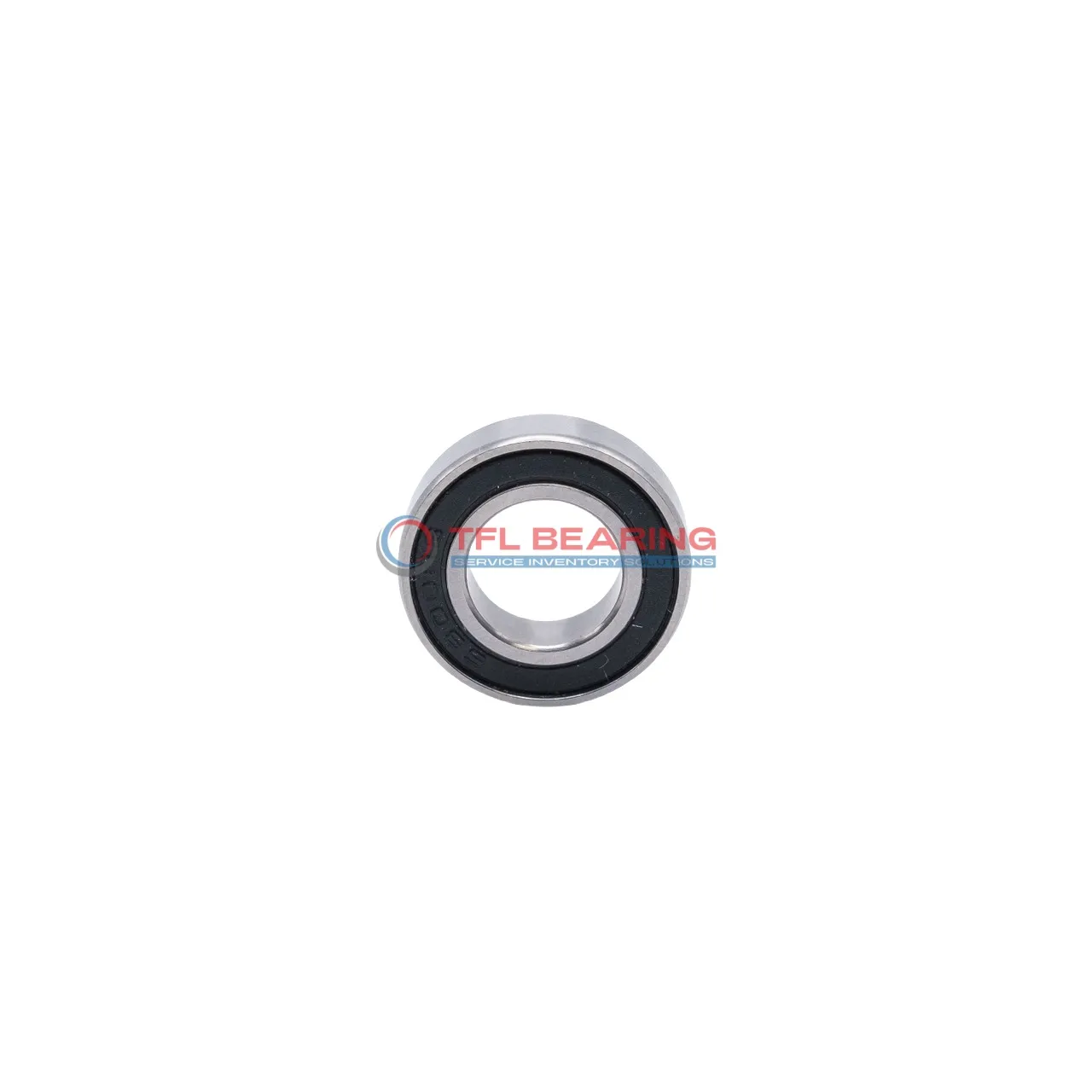

The W 6001-2RS1/VP311 is a compact stainless steel deep groove ball bearing, measuring 12mm by 28mm by 8mm. It’s designed for radial loads up to 994 lbf and can handle speeds up to 16,000 RPM, making it both strong and fast.

Its sealed construction keeps grease in and dirt out, reducing maintenance needs. The all-stainless steel build ensures corrosion resistance, ideal for damp or harsh environments.

This bearing is interchangeable with SKF models, offering a reliable alternative. Perfect for small machinery, electric motors, or food processing equipment where hygiene matters.

Weighing just 0.02kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards, it operates smoothly from -30°C to 120°C.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number W 6001-2RS1/VP311
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 12 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 28 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 8 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 994 lbf
  • Static Radial Load 531 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 16000 rpm
  • Weight 0.02 kg
  • Price($) 10.31

Features

Why Choose W 6001-2RS1/VP311 Bearing for Precision Tasks?

W 6001-2RS1/VP311 Bearing is crafted with stainless steel rings and balls, offering excellent corrosion resistance.
Its sealed design keeps out contaminants, ensuring smooth operation in various environments.

The single-row construction provides reliable radial load support, with a dynamic radial load capacity of 994 lbf.
It operates at speeds up to 16,000 rpm, making it suitable for high-performance applications.

Grease lubrication enhances durability, reducing the need for frequent maintenance.
With a temperature range of -30° to 120°C, it performs well in diverse conditions.

Application

Common Applications of W 6001-2RS1/VP311 Bearing
W 6001-2RS1/VP311 Bearing works well in small industrial machines like pumps and compressors, thanks to its sealed design that keeps out dust and moisture. The stainless steel construction also makes it suitable for environments where corrosion resistance is needed.

In automotive applications, W 6001-2RS1/VP311 Bearing fits nicely into electric motors and small gearboxes, providing smooth rotation under radial loads. Its compact size and metric dimensions make it a versatile choice for various vehicle models.

For home appliances, W 6001-2RS1/VP311 Bearing is often used in fans and small power tools, where its grease lubrication ensures quiet operation. The sealed design helps extend its lifespan even with frequent use.

In medical devices, W 6001-2RS1/VP311 Bearing offers reliable performance in equipment like dental handpieces, where precision and hygiene are important. The stainless steel material meets the cleanliness standards required in medical settings.

Automation systems benefit from W 6001-2RS1/VP311 Bearing in robotic arms and small conveyors, where its low maintenance and durability are key advantages. The high-speed capability also makes it suitable for precision movements.
