Stainless Steel Deep Groove Ball Bearings W 6000-2Z
Stainless Steel Deep Groove Ball Bearings W 6000-2Z

Stainless Steel Deep Groove Ball Bearings W 6000-2Z

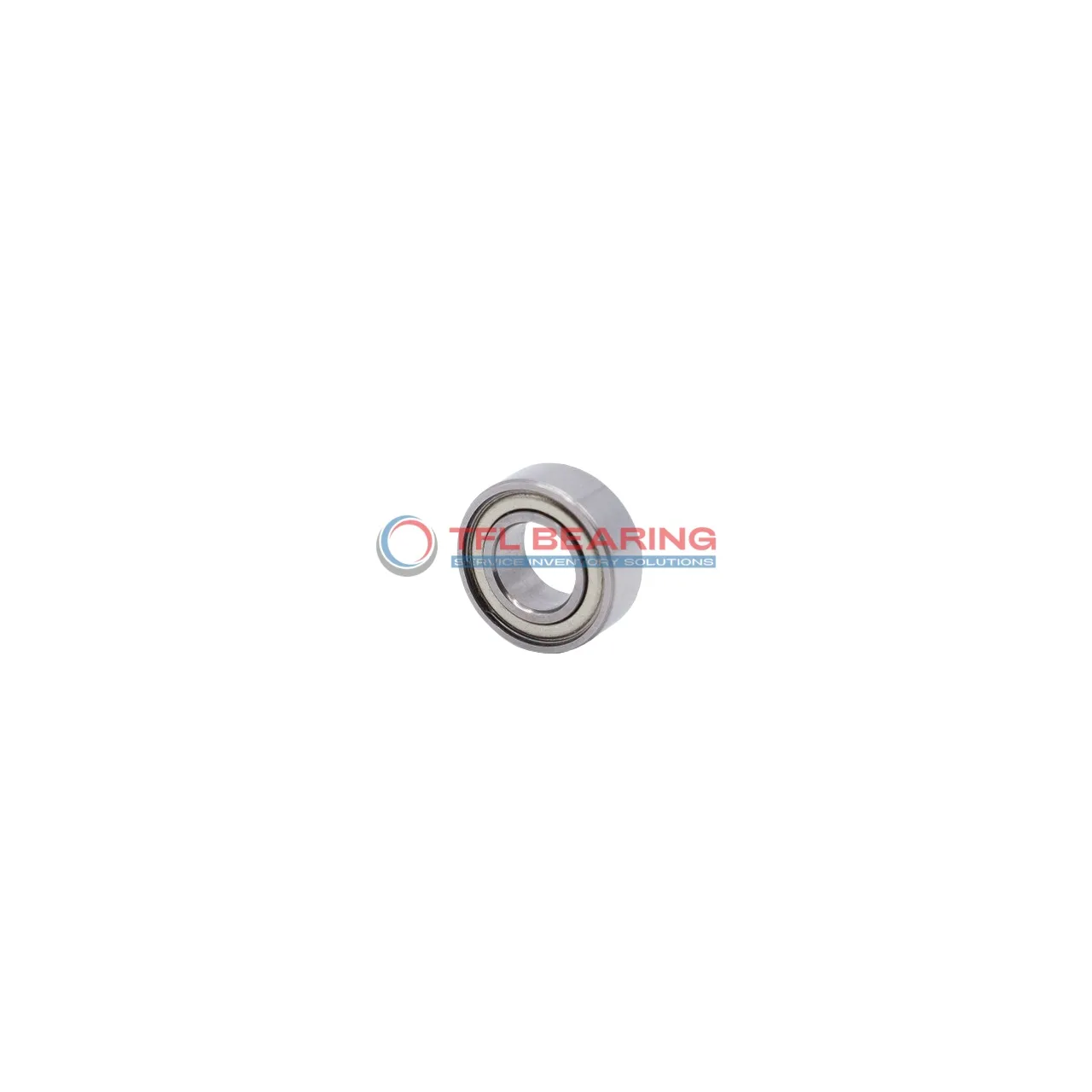

The W 6000-2Z is a compact stainless steel deep groove ball bearing, measuring 10mm by 26mm by 8mm. It handles radial loads up to 892 lbf and spins smoothly at speeds up to 32,000 RPM.

Its shielded design keeps grease in and dirt out, making it low-maintenance. The all-stainless construction resists corrosion, ideal for damp or harsh environments.

This bearing works in temperatures from -30°C to 120°C and comes pre-lubricated for easy installation. It’s interchangeable with SKF models, simplifying replacements.

Weighing just 18 grams, it’s perfect for small machinery, electric motors, or food processing equipment where hygiene matters. Compliant with RoHS and REACH standards.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number W 6000-2Z
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 10 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 26 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 8 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 892 lbf
  • Static Radial Load 441 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 32000 rpm
  • Weight 0.018 kg
  • Price($) 6.12

Features

How Does W 6000-2Z Bearing Reduce Friction?

W 6000-2Z Bearing features stainless steel construction, ensuring smooth operation with minimal friction.
Its shielded design helps retain lubrication, reducing wear and extending service life.

The single-row deep groove design allows for efficient radial load handling, up to 892 lbf.
With a maximum speed of 32,000 rpm, it delivers reliable performance in various applications.

W 6000-2Z Bearing operates in temperatures from -30° to 120°C, making it versatile.
Its compact size (10 mm×26 mm×8 mm) ensures easy integration into different systems.

Application

Industrial Uses of W 6000-2Z Bearing
W 6000-2Z Bearing is commonly used in conveyor systems and small electric motors, where its shielded design helps keep contaminants out. The stainless steel construction makes it suitable for environments where corrosion resistance is important.

In automotive applications, W 6000-2Z Bearing can be found in components like alternators and water pumps. Its compact size and reliable performance make it a good fit for tight spaces in vehicle assemblies.

For household appliances, W 6000-2Z Bearing works well in devices like washing machines and fans. The grease lubrication ensures smooth operation over long periods, even with frequent use.

Where Is W 6000-2Z Bearing Used?
W 6000-2Z Bearing is often chosen for medical devices like dental tools, where hygiene and precision are key. The stainless steel materials meet the strict cleanliness requirements of medical settings.

In robotics, W 6000-2Z Bearing supports small joints and moving parts, thanks to its low friction and consistent performance. The shielded design also helps protect the bearing from dust in automated systems.
