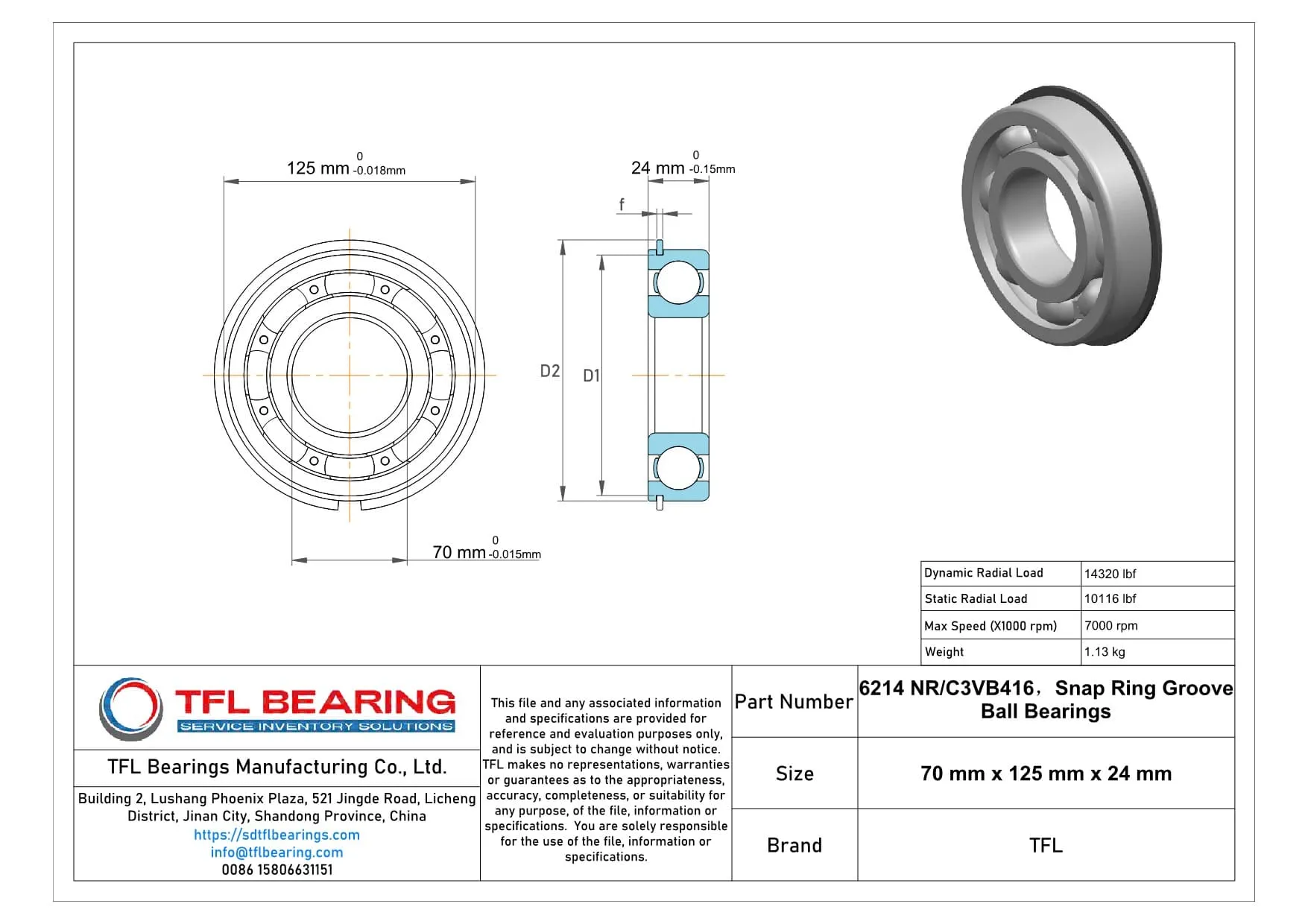

The 6214 NR/C3VB416 is a snap ring groove ball bearing with a 70mm bore and 125mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 14320 lbf and operates smoothly at speeds up to 7000 RPM.
Its open design and snap ring feature on the outer ring ensure easy installation and secure positioning. The C3 radial clearance allows for slight thermal expansion, making it adaptable to varying temperatures.
This bearing is interchangeable with SKF models, offering a reliable replacement option. Suitable for industrial machinery, pumps, or electric motors where radial loads and secure mounting are key.
Weighing 1.13kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s safe for diverse applications.
"*" indicates required fields
How Does 6214 NR/C3VB416 Bearing Reduce Friction?
6214 NR/C3VB416 Bearing features chrome steel rings and balls, ensuring smooth operation with minimal friction.
The single-row design and snap ring groove provide stability, reducing unnecessary movement and wear.
With a dynamic radial load capacity of 14,320 lbf, it handles heavy loads efficiently while maintaining performance.
Its C3 radial clearance allows for thermal expansion, making it suitable for varied temperature conditions.
Why Choose 6214 NR/C3VB416 Bearing for Precision Tasks?
6214 NR/C3VB416 Bearing’s ABEC 1 tolerance ensures consistent precision in radial load applications.
The chrome steel cage aligns the balls perfectly, reducing noise and enhancing smooth rotation.
Its snap ring groove design simplifies installation, saving time and effort during assembly.
Operating within a temperature range of -30°C to 120°C, it remains reliable in diverse environments.
Engineered for Reliability: 6214 NR/C3VB416 Bearing
6214 NR/C3VB416 Bearing is built with high-quality chrome steel, offering durability and long service life.
The open seal design allows for easy lubrication, ensuring optimal performance over time.
With a maximum speed of 7,000 rpm, it balances speed and load capacity effectively.
Its static radial load rating of 10,116 lbf ensures stability even under heavy pressure.
Flanged vs Non-Flanged: Benefits of 6214 NR/C3VB416 Bearing
6214 NR/C3VB416 Bearing’s snap ring groove provides secure positioning without additional flanges.
This design simplifies mounting and reduces the risk of misalignment during operation.
The chrome steel construction resists wear, maintaining performance in demanding conditions.
Its metric sizing ensures compatibility with standard industrial equipment.
Common Applications of 6214 NR/C3VB416 Bearing
This bearing is widely used in industrial machinery, such as pumps and gearboxes, where its snap ring design ensures secure mounting. The C3 clearance allows for thermal expansion in demanding environments.
In automotive applications, 6214 NR/C3VB416 Bearing fits well in wheel hubs and transmission systems, thanks to its radial load capacity. Its chrome steel construction offers durability under constant vibration and stress.
For automation equipment, this bearing supports smooth rotation in robotic arms and conveyor belts. The open seal design simplifies lubrication, making maintenance straightforward in high-speed operations.
6214 NR/C3VB416 Bearing also works in household appliances like washing machines, where reliability is key. Its metric sizing ensures compatibility with various European and Asian models.
