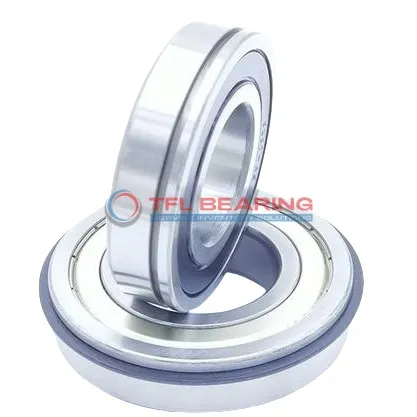

The 6213-ZNR/C3 is a shielded ball bearing with a 65mm bore and 120mm outer diameter, designed for radial loads. Its compact 23mm width and snap ring groove make it easy to fit and secure in place.
Built from chrome steel, it handles radial loads up to 12859 lbf and operates smoothly at speeds up to 5300 RPM. The C3 clearance allows for slight thermal expansion, ensuring reliable performance.
The shielded design keeps dirt out while the snap ring prevents slipping, ideal for high-vibration environments. It works in temperatures from -30°C to 120°C.
Suitable for industrial machinery or electric motors where secure mounting is needed. Weighing 979g, it’s robust yet manageable. Compliant with RoHS and REACH standards.
"*" indicates required fields
Core Advantages of 6213-ZNR/C3 Bearing
6213-ZNR/C3 Bearing features a shielded design, protecting against dust and debris while maintaining smooth operation.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.
The snap ring groove on the outer ring provides secure mounting, enhancing stability during operation.
With a dynamic radial load capacity of 12859 lbf, it handles demanding conditions reliably.
How Does 6213-ZNR/C3 Bearing Reduce Friction?
6213-ZNR/C3 Bearing’s precision-ground chrome steel balls minimise friction, ensuring efficient performance.
The shielded design helps retain lubrication, further reducing friction and extending service life.
Its ABEC 1 tolerance class guarantees consistent operation, even at speeds up to 5,300 rpm.
The C3 radial clearance allows for thermal expansion, maintaining smooth rotation in varying temperatures.
Built for Reliability: 6213-ZNR/C3 Bearing
6213-ZNR/C3 Bearing’s single row design provides stable performance under radial loads up to 9015 lbf static.
The chrome steel cage keeps balls properly spaced, reducing wear and maintaining alignment.
Its temperature range of -30° to 120°C ensures performance in diverse operating environments.
The snap ring feature simplifies installation while providing secure positioning in housings.
Steel vs Ceramic Bearings: Strengths of 6213-ZNR/C3 Bearing
6213-ZNR/C3 Bearing’s all-chrome steel construction offers proven reliability at a competitive cost.
The material choice provides excellent strength-to-weight ratio, with the bearing weighing just 979g.
Its shielded design maintains lubrication better than open bearings, requiring less maintenance.
The snap ring groove adds mounting versatility compared to standard radial bearings.
Common Applications of 6213-ZNR/C3 Bearing
6213-ZNR/C3 Bearing is widely used in industrial machinery, especially in conveyor systems and gearboxes, where its shielded design helps keep contaminants out. The snap ring feature ensures secure mounting, making it ideal for high-vibration environments.
In automotive applications, 6213-ZNR/C3 Bearing supports components like alternators and water pumps, thanks to its reliable radial load capacity. The C3 clearance allows for thermal expansion, ensuring consistent performance in varying temperatures.
For automation equipment, 6213-ZNR/C3 Bearing’s chrome steel construction provides durability in robotic arms and assembly lines. Its shielded seals reduce maintenance needs, making it a cost-effective choice for continuous operation.
In household appliances like washing machines, 6213-ZNR/C3 Bearing offers smooth rotation and long service life. The snap ring design simplifies installation, which is handy for compact spaces.
