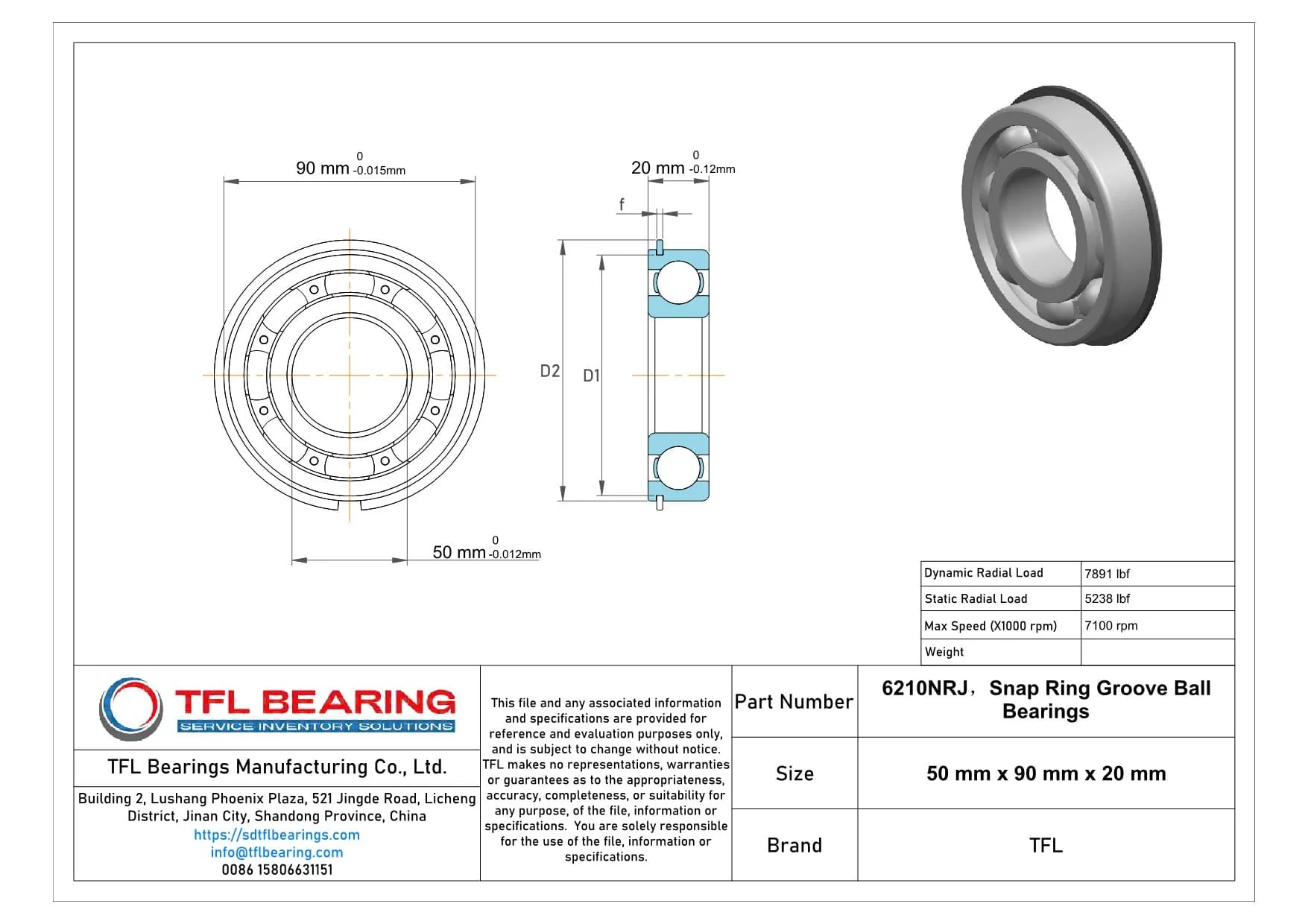

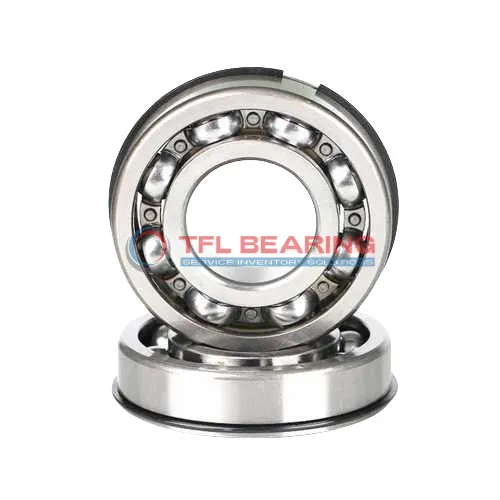

The 6210NRJ is a snap ring groove ball bearing with a 50mm bore and 90mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 7891 lbf and operates smoothly at speeds reaching 7100 RPM.
Its open design and snap ring feature on the outer ring ensure secure fitting, while the chrome steel cage enhances durability. The bearing performs reliably in temperatures from -30°C to 120°C.
This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.
With a compact width of 20mm and snap ring diameter of 96.5mm, it offers a balance of strength and space efficiency. Compliant with RoHS and REACH standards for safe usage.
"*" indicates required fields
How Does 6210NRJ Bearing Reduce Friction?
6210NRJ Bearing features chrome steel rings and balls, ensuring smooth operation with minimal friction.
Its snap ring design on the outer ring provides secure positioning, enhancing stability during use.
The single-row construction of 6210NRJ Bearing allows for efficient radial load distribution.
With a dynamic radial load capacity of 7891 lbf, it handles demanding applications reliably.
6210NRJ Bearing operates smoothly at speeds up to 7,100 rpm, balancing performance and durability.
Its chrome steel cage maintains ball alignment, reducing wear and extending service life.
Industrial Uses of 6210NRJ Bearing
The 6210NRJ Bearing is commonly used in industrial machinery like conveyor belts and pumps, where its snap ring groove ensures secure outer ring positioning. Its open design allows for easy lubrication, making it suitable for high-speed operations.
In automotive applications, 6210NRJ Bearing fits well in gearboxes and wheel hubs, providing reliable radial load support. The chrome steel construction ensures durability even under constant stress.
For automation systems, 6210NRJ Bearing works efficiently in robotic arms and assembly lines. Its ABEC 1 tolerance class offers consistent performance for precision tasks.
The 6210NRJ Bearing is also found in household appliances like washing machines, where its snap ring feature simplifies installation. Its temperature range makes it adaptable to various environments.
