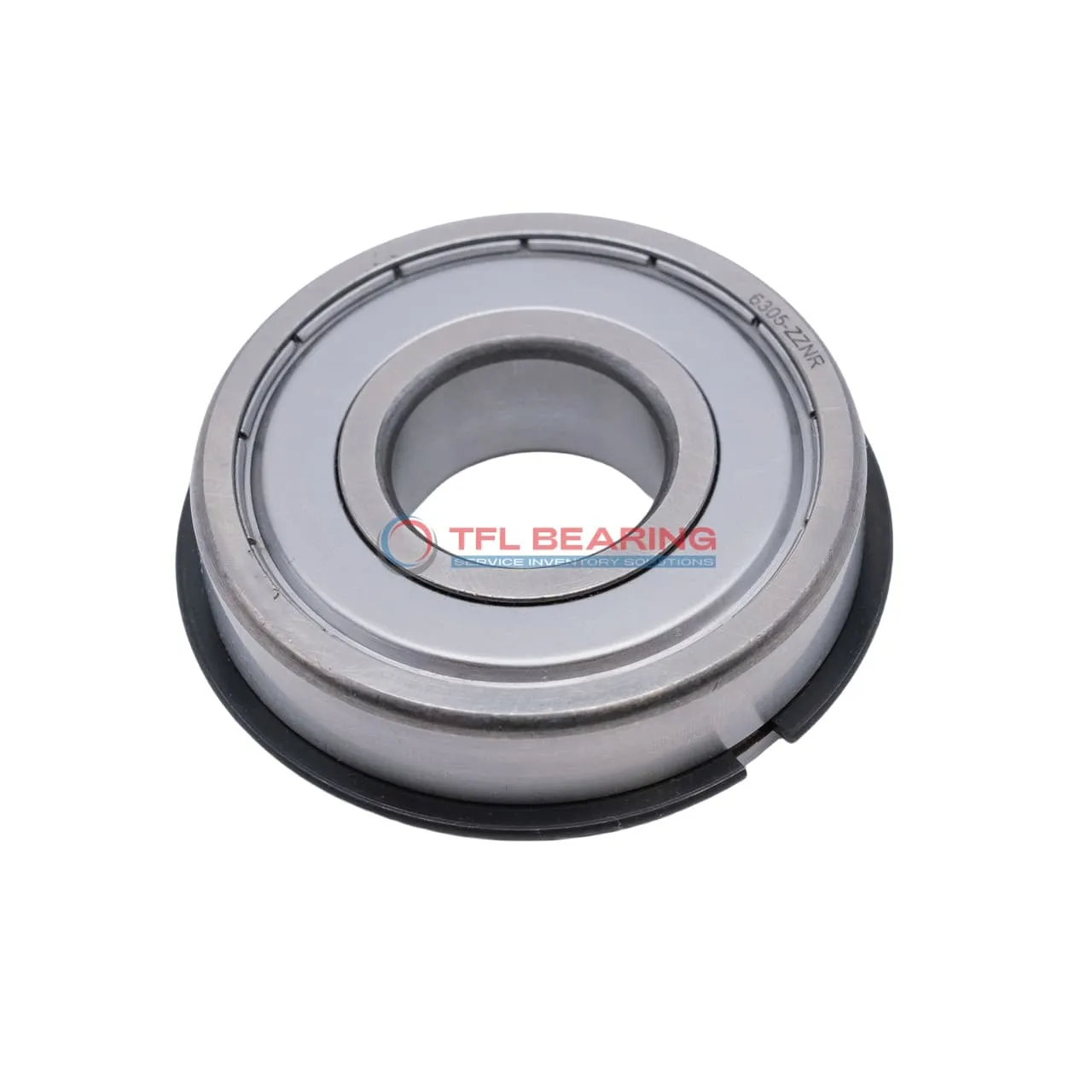

The 6206-ZNRJEM (C3) is a shielded, single-row ball bearing with a 30mm bore and 62mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 4384 lbf and spins smoothly at speeds up to 11000 RPM.
Its snap ring groove on the outer ring ensures secure fitting, while the shielded design keeps contaminants out for longer life. The bearing operates well in temperatures from -30°C to 120°C.
This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for applications like electric motors or conveyor systems where radial loads and secure mounting are key.
Weighing just 199g, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use. The snap ring’s 67.7mm diameter and 1.7mm width provide a snug fit in housings.
"*" indicates required fields
How Does 6206-ZNRJEM (C3) Bearing Ensure Smooth Operation?
6206-ZNRJEM (C3) Bearing features a shielded design, protecting against contaminants while maintaining smooth radial load performance.
Its chrome steel construction provides durability, with a dynamic radial load capacity of 4384 lbf.
The snap ring groove on the outer ring ensures secure fitting, reducing the risk of misalignment during operation.
With a maximum speed of 11,000 rpm, it delivers reliable performance in various applications.
6206-ZNRJEM (C3) Bearing operates efficiently within a temperature range of -30°C to 120°C, suitable for diverse environments.
Its C3 radial clearance allows for thermal expansion, ensuring consistent performance under varying conditions.
Common Applications of 6206-ZNRJEM (C3) Bearing
In industrial settings, 6206-ZNRJEM (C3) Bearing is widely used in conveyor systems and electric motors, where its shielded design helps keep contaminants out. The snap ring feature ensures secure mounting, reducing the risk of displacement during operation.
Where Is 6206-ZNRJEM (C3) Bearing Used?
You’ll often find 6206-ZNRJEM (C3) Bearing in automotive applications like alternators and water pumps, thanks to its reliable radial load capacity. The C3 clearance allows for slight thermal expansion, making it suitable for varying temperatures.
Ideal for Precision: 6206-ZNRJEM (C3) Bearing
For medical devices such as centrifuges, 6206-ZNRJEM (C3) Bearing offers smooth rotation with minimal noise. Its chrome steel construction ensures long-lasting performance even in high-speed scenarios.
Automotive vs Industrial: Applications of 6206-ZNRJEM (C3) Bearing
In automotive uses, 6206-ZNRJEM (C3) Bearing handles radial loads in gearboxes, while in industrial machinery, it supports fans and pumps. The shielded seals protect against dust and debris in both environments.
Practical Applications of 6206-ZNRJEM (C3) Bearing
For household appliances like washing machines, 6206-ZNRJEM (C3) Bearing provides quiet and efficient operation. Its snap ring groove simplifies installation, making it a favourite for maintenance-friendly designs.
