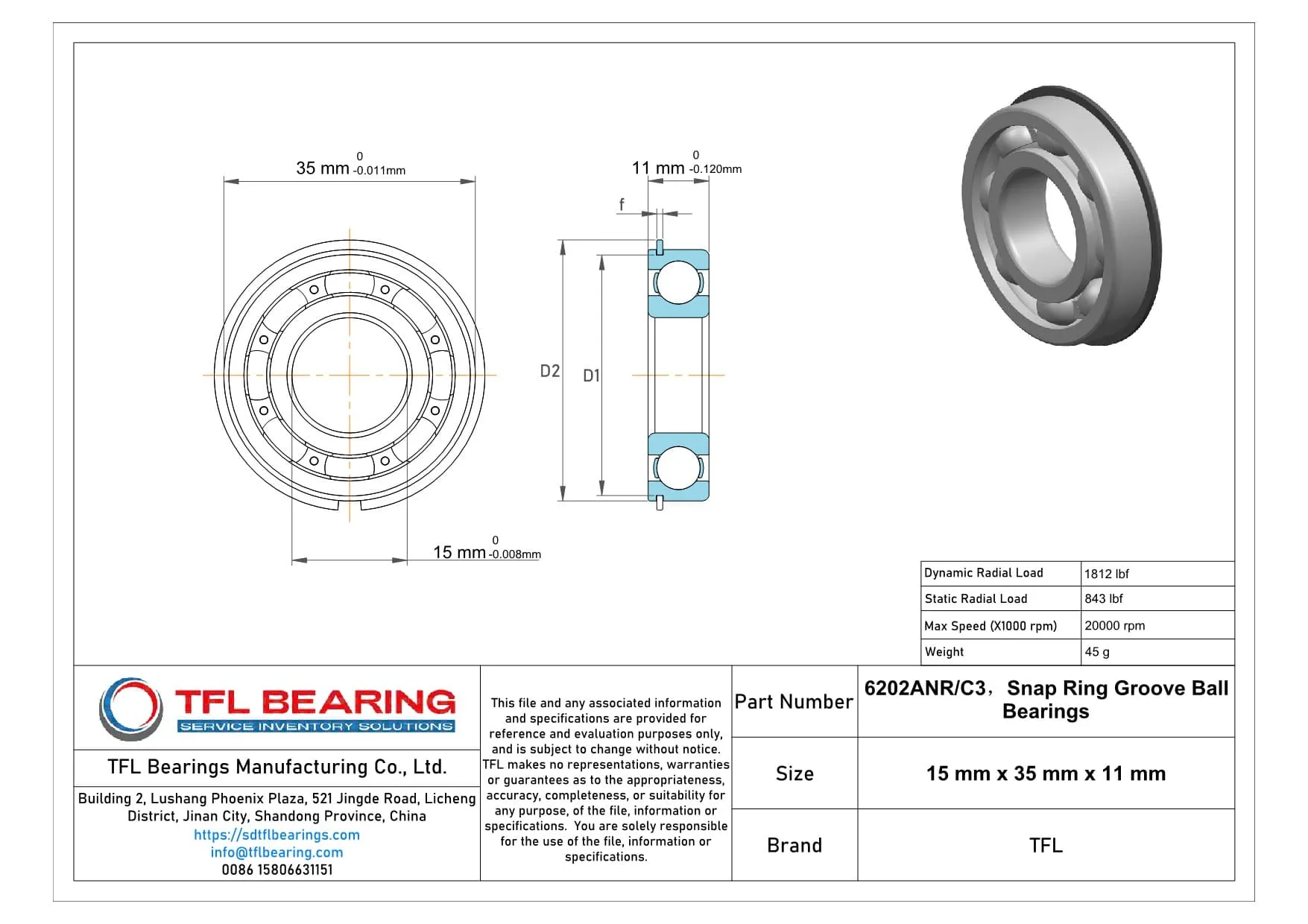

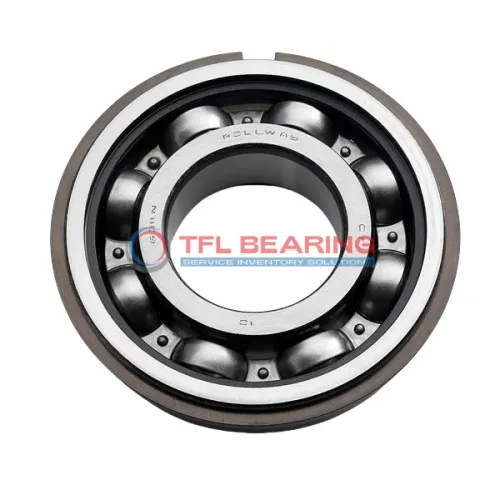

The 6202ANR/C3 is a snap ring groove ball bearing with a 15mm bore and 35mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 1812 lbf and can spin at speeds up to 20,000 RPM.
Its open design and snap ring feature on the outer ring ensure easy installation and secure positioning. The C3 radial clearance allows for slight thermal expansion, making it reliable under varying temperatures.
This bearing is interchangeable with SKF models, offering a practical replacement option. Ideal for electric motors or small machinery where radial loads and high speeds are common.
Weighing just 45g, it’s lightweight yet durable. Compliant with RoHS and REACH standards, it operates smoothly in temperatures from -30°C to 120°C.
"*" indicates required fields
Why Choose 6202ANR/C3 Bearing for Precision Tasks?
6202ANR/C3 Bearing features a snap ring groove on the outer ring, ensuring secure positioning in assemblies.
Its chrome steel construction provides durability and resistance to wear in radial load applications.
With a dynamic radial load capacity of 1812 lbf, 6202ANR/C3 Bearing handles demanding conditions effectively.
The open design allows for easy lubrication, enhancing performance and longevity.
Operating at speeds up to 20,000 rpm, 6202ANR/C3 Bearing is suitable for high-speed machinery.
Its temperature range of -30° to 120°C ensures reliable performance in varied environments.
The C3 radial clearance offers flexibility in applications where thermal expansion is a factor.
6202ANR/C3 Bearing’s lightweight design at 45g makes it ideal for compact and precision equipment.
Common Applications of 6202ANR/C3 Bearing
6202ANR/C3 Bearing is widely used in industrial machinery, especially where radial loads and moderate speeds are involved, such as conveyor rollers and small electric motors. Its snap ring groove ensures secure mounting, making it ideal for compact designs.
In automotive applications, 6202ANR/C3 Bearing can be found in alternators and water pumps, where its reliable performance and easy installation are valued. The C3 radial clearance allows for thermal expansion in high-temperature environments.
For home appliances like washing machines, 6202ANR/C3 Bearing provides smooth operation with minimal maintenance. The chrome steel construction ensures durability even under continuous use.
Where Is 6202ANR/C3 Bearing Used?
You’ll often spot 6202ANR/C3 Bearing in power tools, where its ability to handle radial loads and high speeds keeps drills and grinders running smoothly. The open design simplifies lubrication for extended tool life.
In robotics, 6202ANR/C3 Bearing is a go-to choice for joint mechanisms due to its precise movement and snap ring security. Its lightweight design also helps reduce overall robot weight.
Built for Heavy-Duty Use: 6202ANR/C3 Bearing
6202ANR/C3 Bearing excels in agricultural equipment, enduring dust and variable loads while maintaining performance. The chrome steel cage adds extra resilience in tough conditions.
Medical devices like centrifuges benefit from 6202ANR/C3 Bearing’s quiet operation and reliability. The metric sizing ensures compatibility with precision instruments.
Light-Duty vs Heavy-Duty: Best Uses for 6202ANR/C3 Bearing
For light-duty tasks like office printers, 6202ANR/C3 Bearing offers quiet rotation and longevity. In heavier applications like small gearboxes, its C3 clearance accommodates load variations effectively.
