Snap Ring Groove Ball Bearings 6018 NR
Snap Ring Groove Ball Bearings 6018 NR

Snap Ring Groove Ball Bearings 6018 NR

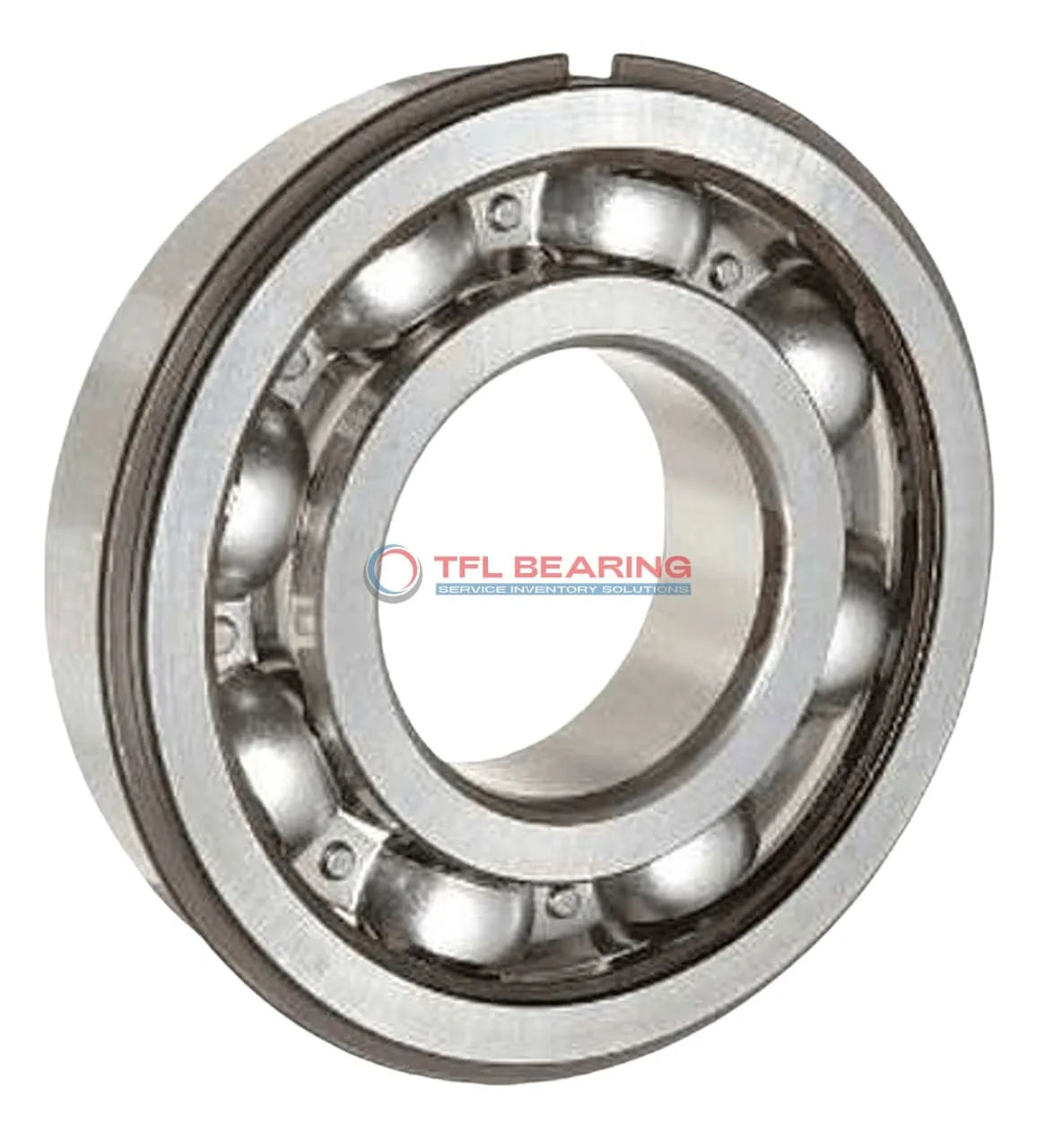

The 6018 NR is a snap ring groove ball bearing with a 90mm bore and 140mm outer diameter, designed for radial loads. Its compact width of 24mm makes it suitable for tight spaces, while the chrome steel construction ensures durability.

This bearing handles radial loads up to 13601 lbf and operates smoothly at speeds up to 6300 RPM. The snap ring on the outer ring helps keep it securely in place during operation.

With a temperature range of -30°C to 120°C, it performs well in various environments. The open design allows for easy lubrication and maintenance.

Ideal for industrial machinery or automotive applications where secure mounting is needed. Weighing 1.2kg, it offers a good balance of strength and manageability. Compliant with REACH standards for safe use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

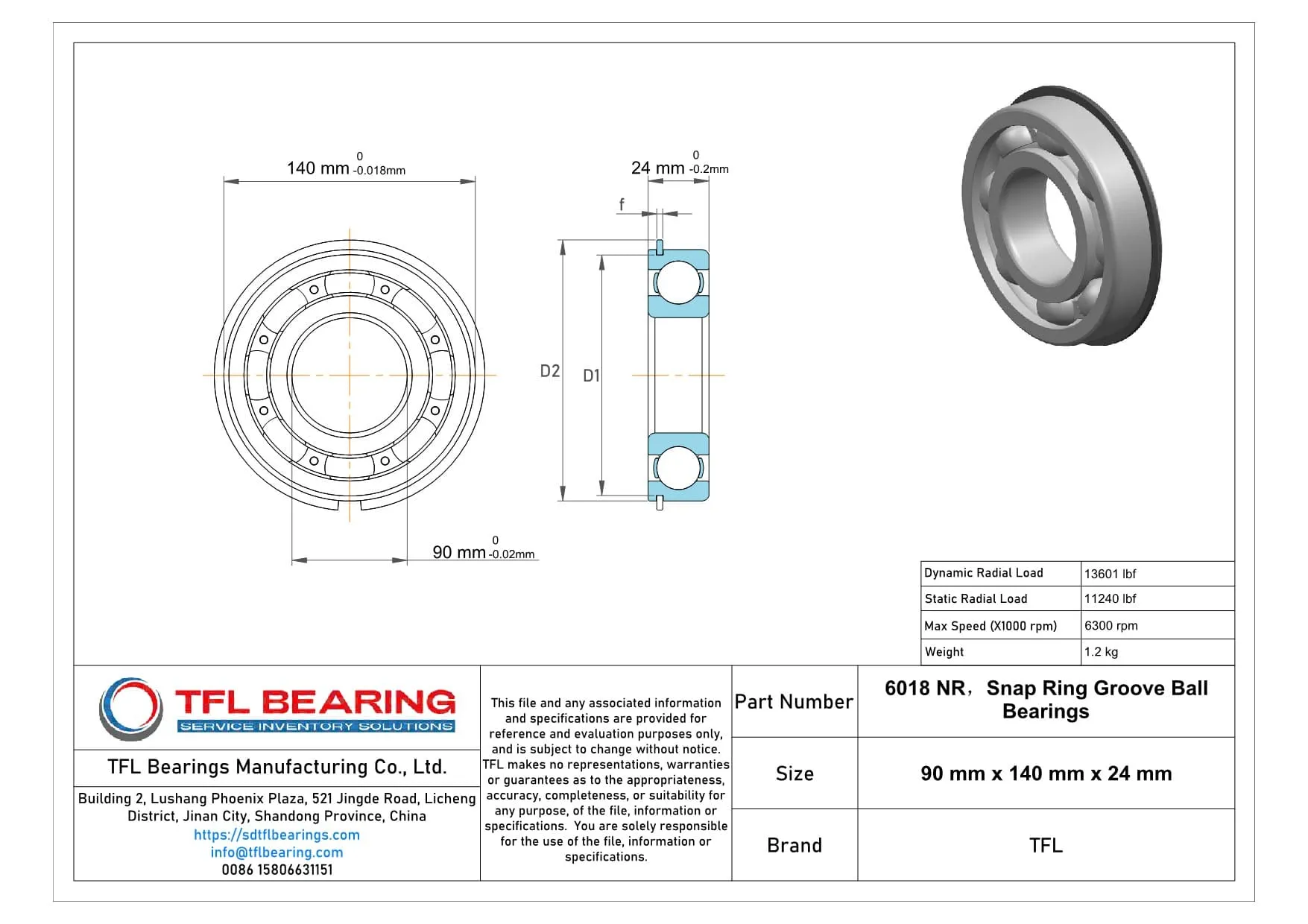

Product Parameters

  • Part Number 6018 NR
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 90 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 140 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 24 mm
  • Width Tolerance -0.2mm to 0
  • Outside Diameter Of Snap Ring 149.7 mm
  • Width Of Snap Ring 2.82 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 13601 lbf
  • Static Radial Load 11240 lbf
  • Temperature Range -30° to 120 °C
  • REACH Compliant
  • Max Speed 6300 rpm
  • Weight 1.2 kg

Features

How Does 6018 NR Bearing Reduce Friction?

6018 NR Bearing features chrome steel rings and balls, ensuring smooth operation with minimal friction.
Its single-row design and stainless steel cage help maintain alignment, reducing wear during rotation.
The snap ring groove on the outer ring provides secure fitting, enhancing stability under radial loads.
With a dynamic radial load capacity of 13601 lbf, it delivers reliable performance in various applications.

What Makes 6018 NR Bearing Suitable for High-Speed Applications?

6018 NR Bearing is built to handle speeds up to 6,300 rpm, making it ideal for high-speed machinery.
The chrome steel construction ensures durability, while the stainless steel cage keeps the balls aligned.
Its snap ring groove design allows for easy installation and secure positioning.
The bearing operates efficiently within a temperature range of -30° to 120°C, ensuring versatility.

Engineered for Precision: 6018 NR Bearing

6018 NR Bearing offers precise performance with its P0 tolerance class and CN radial clearance.
The chrome steel components provide strength and resistance to wear, extending its service life.
Its snap ring groove ensures a secure fit, reducing the risk of misalignment during operation.
With a static radial load capacity of 11240 lbf, it is suitable for demanding radial load applications.

Application

Industrial Uses of 6018 NR Bearing
6018 NR Bearing is commonly used in industrial machinery, such as conveyor systems and gearboxes, where its snap ring groove ensures secure outer ring positioning. The open design allows for easy lubrication, making it suitable for high-load environments.

What Makes 6018 NR Bearing a Preferred Choice?
In automotive applications, 6018 NR Bearing supports components like wheel hubs and transmissions, thanks to its robust chrome steel construction. The snap ring feature adds stability, reducing the risk of misalignment during operation.

Built for Heavy-Duty Use: 6018 NR Bearing
For automation equipment, 6018 NR Bearing provides reliable performance in robotic arms and assembly lines. Its stainless steel cage enhances durability, even in continuous operation scenarios.

Light-Duty vs Heavy-Duty: Best Uses for 6018 NR Bearing
In consumer electronics, 6018 NR Bearing can be found in printers and power tools, where its precision ensures smooth operation. The metric sizing makes it compatible with a variety of European and Asian device designs.
