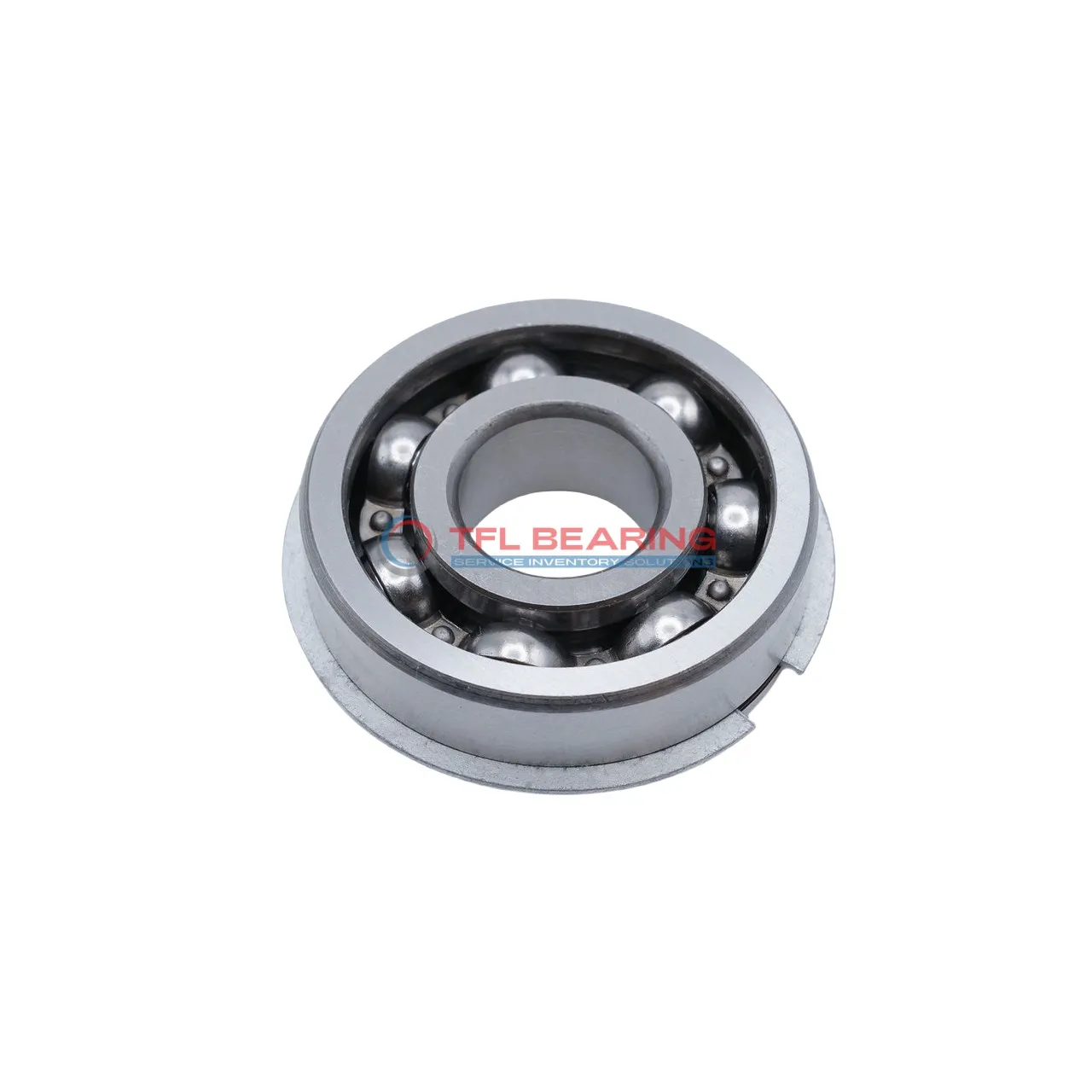

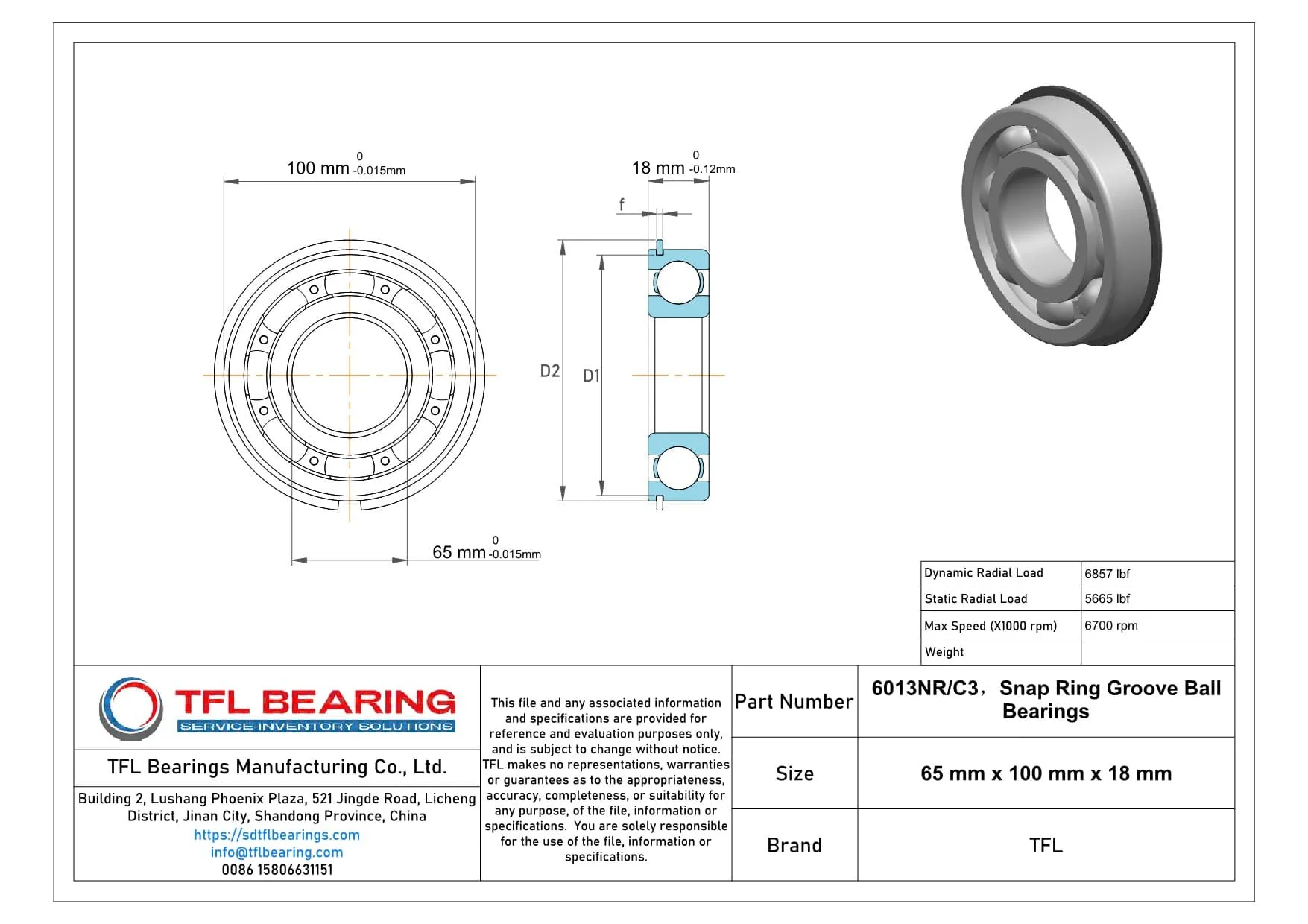

The 6013NR/C3 is a snap ring groove ball bearing with a 65mm bore and 100mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 6857 lbf and operates smoothly at speeds up to 6700 RPM.
Its snap ring design keeps it securely in place, while the open seal allows for easy maintenance. The C3 radial clearance ensures reliable performance under varying temperatures, from -30°C to 120°C.
This bearing is interchangeable with SKF models, making it a practical choice for replacements. Ideal for machinery where radial loads and secure positioning are key, such as electric motors or pumps.
Weighing in at a manageable size, it’s built for durability and ease of use. Compliant with RoHS and REACH standards, it’s a safe and reliable option for various industrial applications.
"*" indicates required fields
Why Choose 6013NR/C3 Bearing for Precision Tasks?
6013NR/C3 Bearing features a snap ring groove on its outer ring, ensuring secure positioning in assemblies.
Its chrome steel construction provides durability and resistance to wear in radial load applications.
With a dynamic radial load capacity of 6857 lbf, it handles demanding conditions reliably.
The C3 radial clearance allows for thermal expansion, making it suitable for varied operating temperatures.
Common Applications of 6013NR/C3 Bearing
The 6013NR/C3 Bearing is widely used in industrial equipment like conveyor systems and machine tools, where its snap ring groove ensures secure mounting. Its open design allows for easy lubrication, making it suitable for high-speed operations.
In automotive applications, 6013NR/C3 Bearing fits well in gearboxes and wheel hubs, providing reliable radial load support. The C3 clearance offers flexibility in temperature variations, common in vehicle environments.
For automation systems, 6013NR/C3 Bearing works efficiently in robotic arms and assembly lines, thanks to its precise tolerances. The chrome steel construction ensures durability even in continuous operation.
Medical devices like diagnostic equipment benefit from 6013NR/C3 Bearing’s smooth performance and low maintenance needs. Its snap ring feature simplifies installation in compact spaces.
In household appliances such as washing machines, 6013NR/C3 Bearing provides quiet and long-lasting operation. The metric sizing makes it compatible with various European and Asian models.
