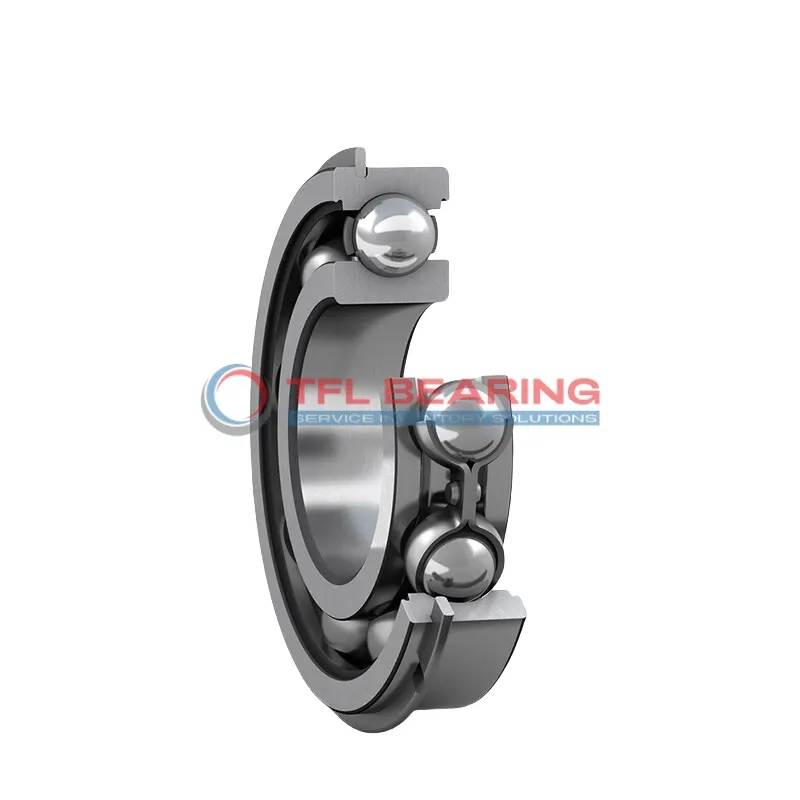

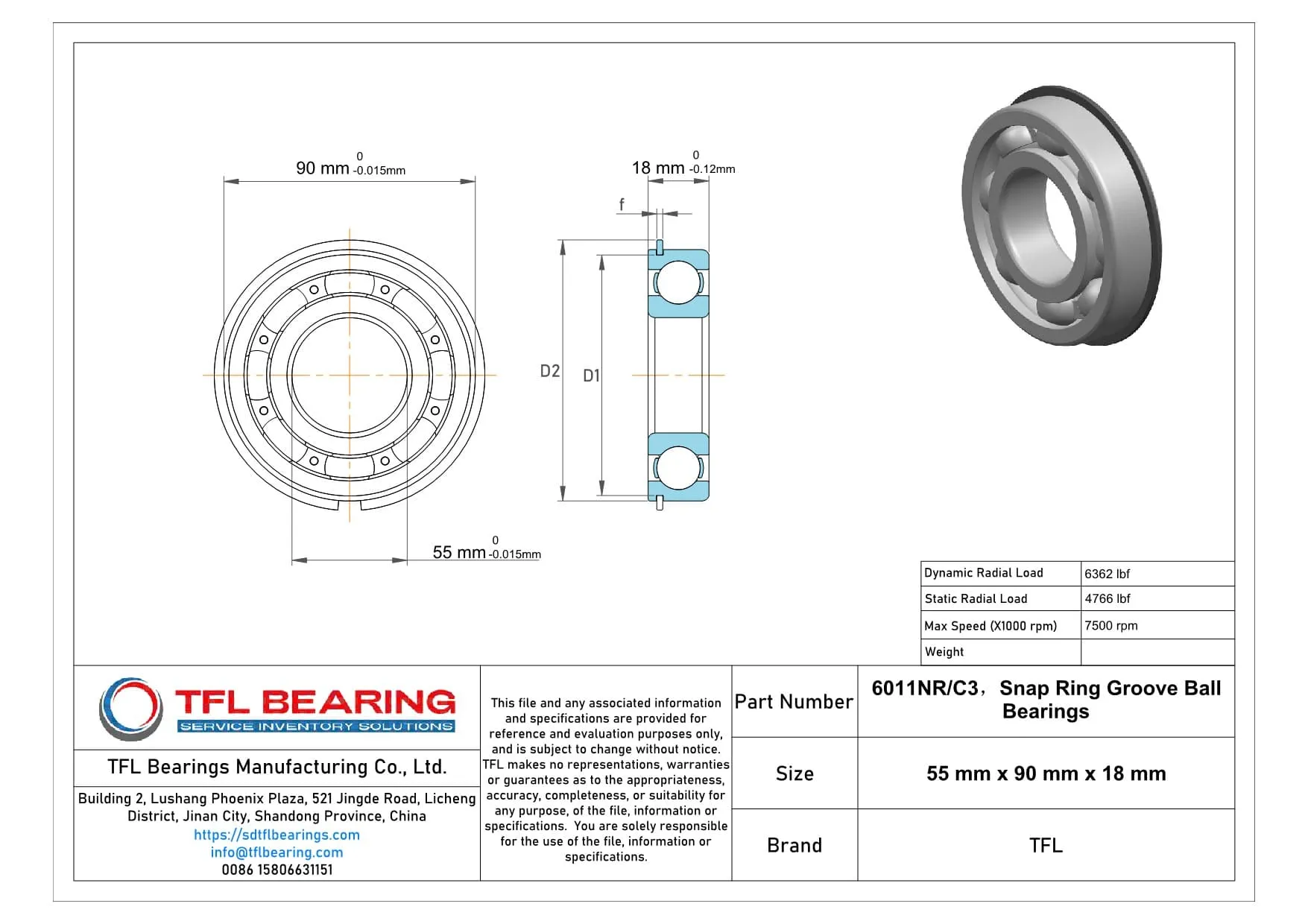

The 6011NR/C3 is a snap ring groove ball bearing with a 55mm bore and 90mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 6362 lbf and operates smoothly at speeds up to 7500 RPM.
Its open design and C3 radial clearance allow for easy maintenance and accommodate slight misalignments. The fitted snap ring on the outer ring ensures secure positioning in housings.
This bearing is interchangeable with SKF models, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads and secure mounting are key.
With a temperature range of -30°C to 120°C, it performs reliably in various environments. Compliant with RoHS and REACH standards for safe usage.
"*" indicates required fields
How Does 6011NR/C3 Bearing Reduce Friction?
6011NR/C3 Bearing features chrome steel rings and balls, ensuring smooth operation with minimal friction.
Its single-row design and open seal type allow for efficient radial load distribution.
The snap ring on the outer ring provides secure fitting, reducing vibrations and wear.
With a maximum speed of 7,500 rpm, it offers reliable performance in various applications.
Industrial Uses of 6011NR/C3 Bearing
The 6011NR/C3 Bearing is commonly used in industrial machinery, such as pumps and gearboxes, where its snap ring groove ensures secure outer ring positioning. Its C3 clearance allows for thermal expansion, making it suitable for varying operating conditions.
Where Is 6011NR/C3 Bearing Used?
You’ll often find the 6011NR/C3 Bearing in automotive applications like alternators and transmissions, where radial load support is essential. The chrome steel construction provides durability, even in high-speed scenarios.
Built for Heavy-Duty Use: 6011NR/C3 Bearing
In conveyor systems, the 6011NR/C3 Bearing handles continuous radial loads with ease, thanks to its robust design. The snap ring feature simplifies installation, reducing downtime during maintenance.
Automotive vs Industrial: Applications of 6011NR/C3 Bearing
While the 6011NR/C3 Bearing excels in car components like wheel hubs, it’s equally reliable in industrial fans. Its metric sizing ensures compatibility across diverse equipment types.
Perfect Fit for Automation: 6011NR/C3 Bearing
The 6011NR/C3 Bearing works well in robotic arms, where precision and load capacity matter. The open seal design allows for easy lubrication, extending service life in automated setups.
