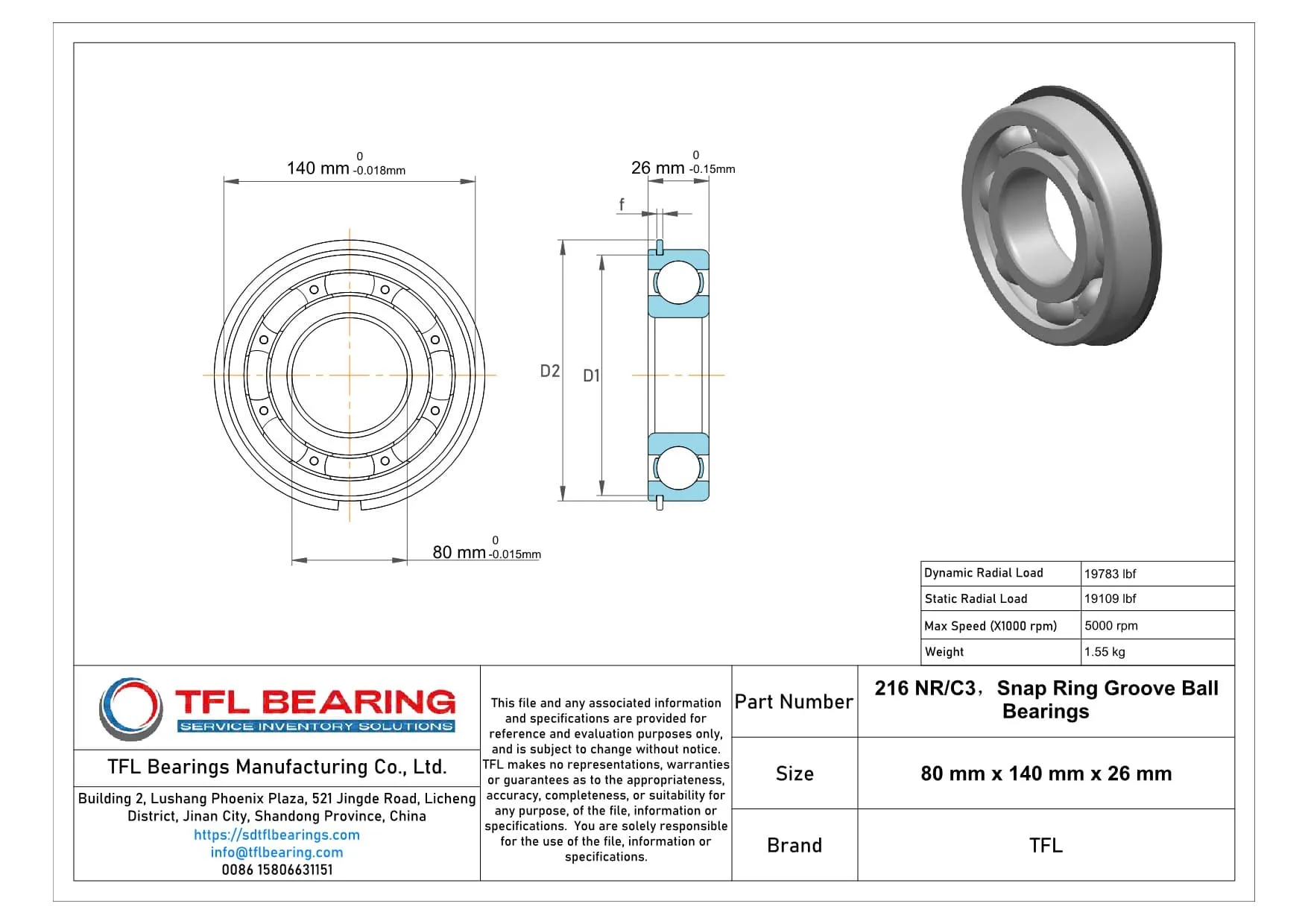

The 216 NR/C3 is a snap ring groove ball bearing with an 80mm bore and 140mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 19783 lbf and operates smoothly at speeds up to 5000 RPM.
Its single-row design and open seal make it easy to maintain, while the snap ring ensures secure fitting. The bearing performs reliably in temperatures ranging from -30°C to 120°C.
This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for machinery where radial loads and secure mounting are key, such as pumps or conveyors.
Weighing 1.55kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.
"*" indicates required fields
Performance Features of 216 NR/C3 Bearing
216 NR/C3 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 19783 lbf, ensuring reliable performance in demanding applications.
The snap ring groove on the outer ring provides secure mounting, reducing the risk of misalignment.
With a maximum speed of 5,000 rpm, it balances durability and efficiency for various industrial uses.
216 NR/C3 Bearing operates smoothly in temperatures ranging from -30°C to 120°C.
Its open design allows for easy lubrication, ensuring long service life with minimal maintenance.
Industrial Uses of 216 NR/C3 Bearing
The 216 NR/C3 Bearing is commonly used in industrial machinery, such as pumps and gearboxes, where its snap ring groove ensures secure outer ring positioning. Its C3 radial clearance allows for thermal expansion in high-speed applications.
In automotive applications, 216 NR/C3 Bearing supports components like alternators and transmission systems, thanks to its robust chrome steel construction. The open design simplifies lubrication, extending service life in demanding conditions.
For automation systems, 216 NR/C3 Bearing provides reliable performance in robotic arms and conveyor belts. The snap ring feature makes installation and maintenance straightforward, reducing downtime in production lines.
Where Is 216 NR/C3 Bearing Used?
You’ll find 216 NR/C3 Bearing in heavy-duty fans and blowers, where its dynamic load capacity handles continuous operation. The metric sizing ensures compatibility with a wide range of European machinery.
Built for Heavy-Duty Use: 216 NR/C3 Bearing
This bearing excels in construction equipment, such as compactors and excavators, due to its high static radial load rating. The chrome steel cage enhances durability in abrasive environments.
