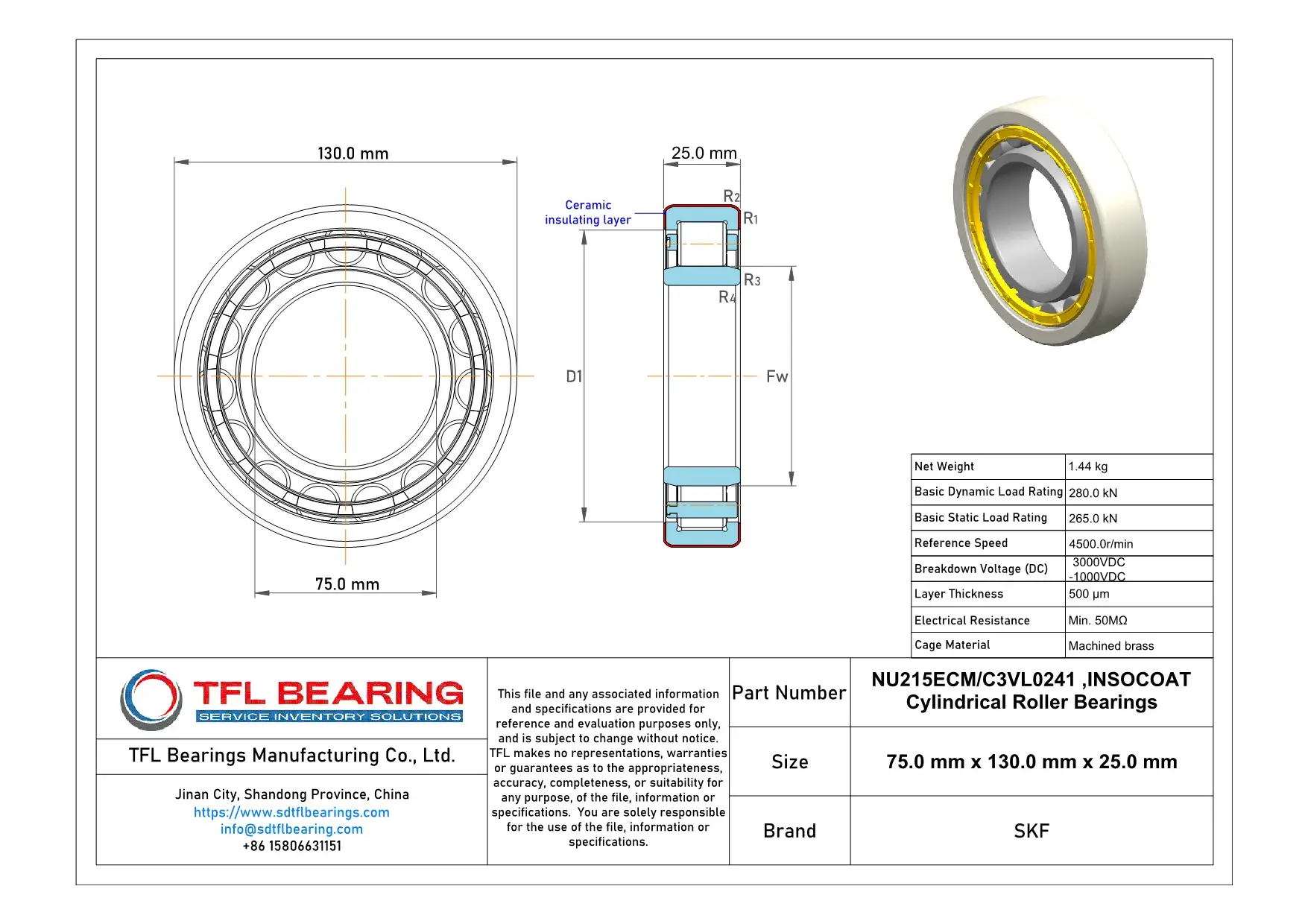

The SKF INSOCOAT cylindrical roller bearing measures 75mm by 130mm by 25mm and weighs 1.44kg. It features an insulating coating on the outer ring to protect against electrical damage.
With a dynamic load rating of 280kN and static load rating of 265kN, it handles heavy radial loads comfortably. It operates smoothly at speeds up to 4500 RPM in various conditions.
The brass cage provides durability and stable performance, while the C3 internal clearance accommodates thermal expansion. The insulation coating prevents electrical erosion from stray currents.
This bearing suits electric motors, generators, and industrial machinery where electrical insulation is needed. It meets RoHS and REACH standards for safe use in demanding applications.
"*" indicates required fields
How Is NU215ECM/C3VL0241 Bearing Engineered for Reliability?
NU215ECM/C3VL0241 Bearing features an insulating coating on its outer ring, protecting against electrical damage in demanding environments.
This coating provides breakdown voltage protection from 1000 to 3000 VDC, ensuring consistent performance where electrical currents are present.
The machined brass cage maintains precise roller alignment, reducing friction and wear during operation.
With a basic dynamic load rating of 280 kN, NU215ECM/C3VL0241 Bearing handles substantial radial loads while maintaining smooth rotation.
How Does NU215ECM/C3VL0241 Bearing Improve Performance?
NU215ECM/C3VL0241 Bearing works well in industrial machinery like large pumps and conveyor systems where electrical currents could cause damage.
Its insulating coating protects against electrical erosion, while the C3 clearance handles thermal expansion in demanding conditions.
What Makes NU215ECM/C3VL0241 Bearing a Preferred Choice?
In automotive electric motors and hybrid vehicle systems, NU215ECM/C3VL0241 Bearing prevents current passage that could damage components.
The machined brass cage maintains stability at high speeds, making it suitable for various driving conditions.
Perfect Fit for Automation: NU215ECM/C3VL0241 Bearing
NU215ECM/C3VL0241 Bearing supports robotic arms and automated assembly lines where electrical insulation is necessary.
Its cylindrical roller design distributes loads evenly, ensuring consistent movement in precision applications.
Medical vs Industrial: Where NU215ECM/C3VL0241 Bearing Excels
NU215ECM/C3VL0241 Bearing handles both medical imaging equipment and industrial machinery with equal reliability.
The insulation coating makes it safe for sensitive medical devices, while its robust construction suits factory environments.
