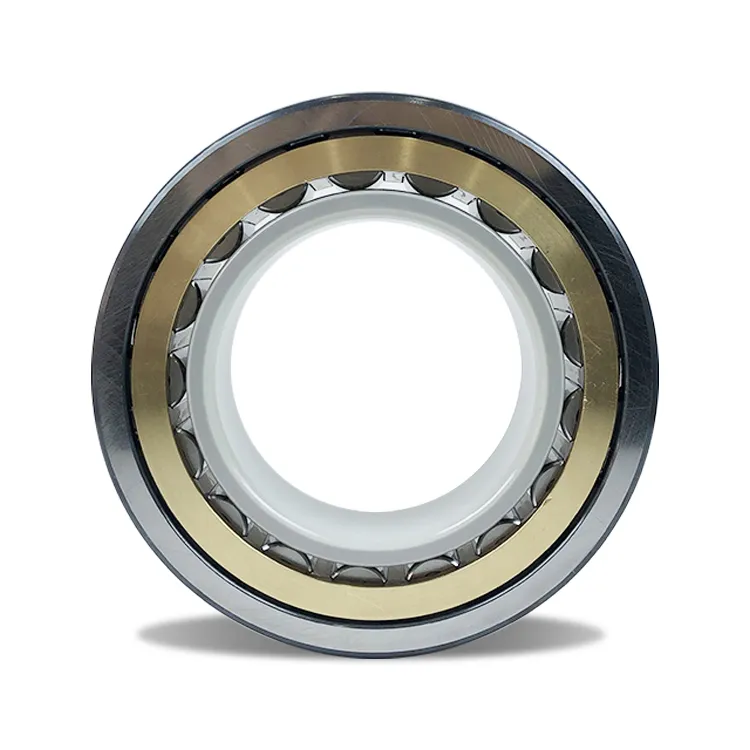

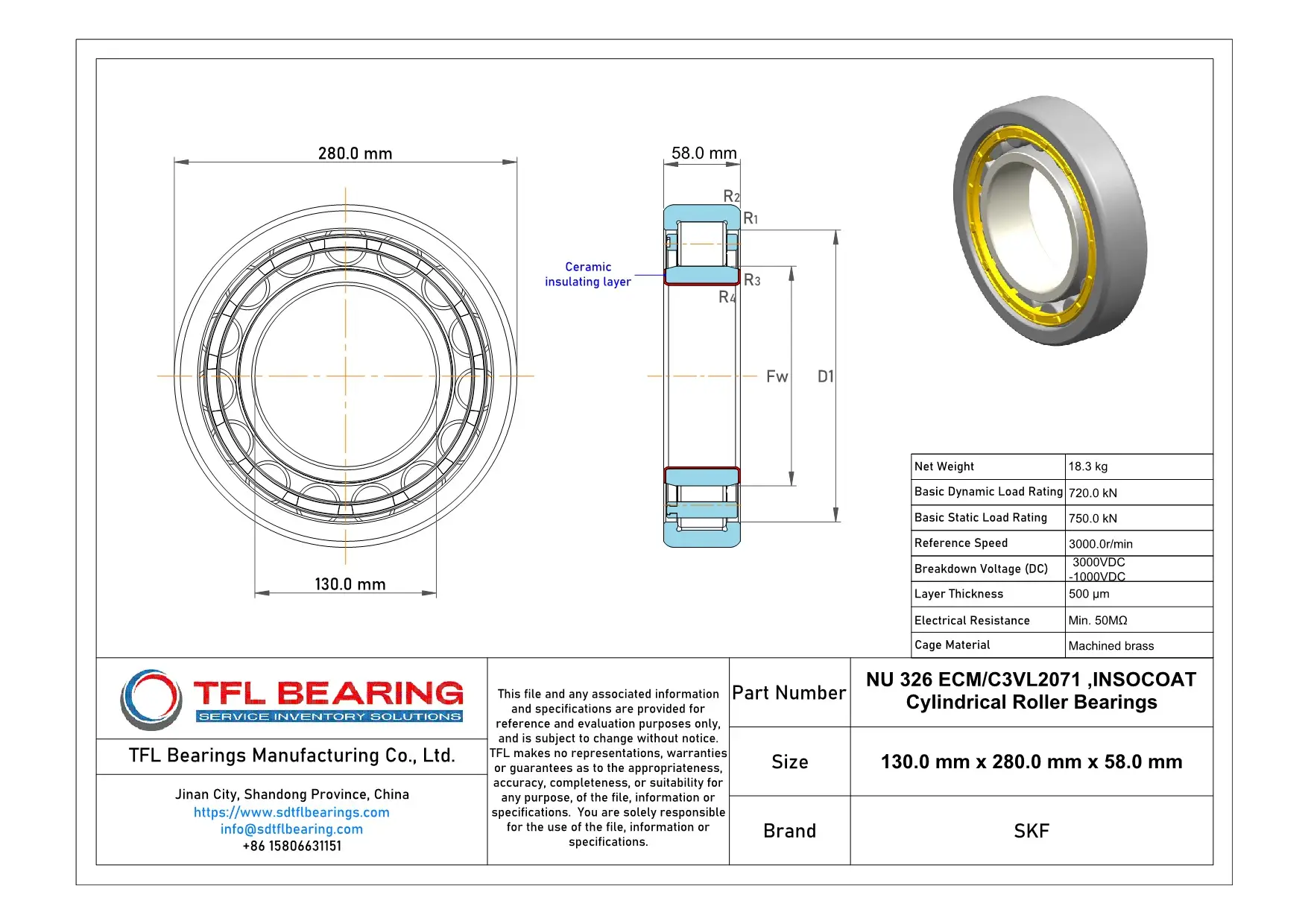

The SKF INSOCOAT cylindrical roller bearing has a 130mm bore, 280mm outside diameter, and is 58mm wide. It weighs 18.3kg, making it a solid unit for heavy-duty use.
Its basic dynamic load rating is 720 kN, and it can handle static loads up to 750 kN. This bearing spins smoothly at reference speeds of 3000 rpm.
The inner ring features a special insulating coating that protects against electrical currents. This helps prevent damage from stray currents, extending the bearing’s life in electric motors or generators.
With a machined brass cage and C3 radial internal clearance, it’s well-suited for industrial machinery, pumps, or fans operating in demanding conditions. It meets RoHS and REACH standards for safety and environmental compliance.
"*" indicates required fields
How Is NU 326 ECM/C3VL2071 Bearing Engineered for Reliability?
NU 326 ECM/C3VL2071 Bearing features an insulating coating on its inner ring, protecting against electrical damage in demanding environments.
Its machined brass cage maintains precise roller alignment, reducing friction and wear during operation.
With a basic dynamic load rating of 720 kN, it handles heavy radial loads while maintaining consistent performance.
The C3 radial internal clearance allows for thermal expansion, ensuring reliable operation at high speeds up to 3000 r/min.
How Does NU 326 ECM/C3VL2071 Bearing Improve Performance?
NU 326 ECM/C3VL2071 Bearing works well in industrial equipment like large pumps and conveyor systems where electrical currents could cause damage. Its insulation coating prevents electrical erosion from damaging other components.
In automotive manufacturing, NU 326 ECM/C3VL2071 Bearing handles high radial loads in electric motor applications. The brass cage maintains stability even during rapid speed changes in production machinery.
For medical imaging devices, NU 326 ECM/C3VL2071 Bearing’s electrical insulation ensures accurate readings aren’t affected by stray currents. The C3 clearance allows for thermal expansion during extended operation periods.
Automation systems benefit from NU 326 ECM/C3VL2071 Bearing’s consistent performance in robotic positioning arms. The coating withstands voltage spikes common in industrial control environments.
Where Is NU 326 ECM/C3VL2071 Bearing Used?
NU 326 ECM/C3VL2071 Bearing appears frequently in industrial fans and blowers where electrical insulation is necessary. Its cylindrical roller design distributes loads evenly across the bearing surface.
Electric vehicle drivetrains use NU 326 ECM/C3VL2071 Bearing for its ability to handle both radial forces and electrical isolation. The 130mm bore fits standard motor shaft sizes perfectly.
Medical laboratory equipment employs NU 326 ECM/C3VL2071 Bearing in centrifuges and mixing devices. The insulation coating prevents electrical interference with sensitive measurements.
Factory automation lines incorporate NU 326 ECM/C3VL2071 Bearing in material handling systems. The VL2071 coating specification ensures reliable operation in electrically noisy environments.
Industrial Uses of NU 326 ECM/C3VL2071 Bearing
NU 326 ECM/C3VL2071 Bearing serves well in industrial gearboxes where electrical currents might pass through machinery. The 500µm coating thickness provides adequate insulation for most industrial applications.
Wind turbine generators often specify NU 326 ECM/C3VL2071 Bearing for main shaft positioning. Its 720kN dynamic load rating handles the variable forces encountered in renewable energy systems.
Medical diagnostic equipment utilizes NU 326 ECM/C3VL2071 Bearing in rotating scanner assemblies. The machined brass cage reduces vibration during precision medical procedures.
Industrial robots employ NU 326 ECM/C3VL2071 Bearing in joint mechanisms where electrical isolation is required. The C3 clearance accommodates temperature variations in factory settings.
