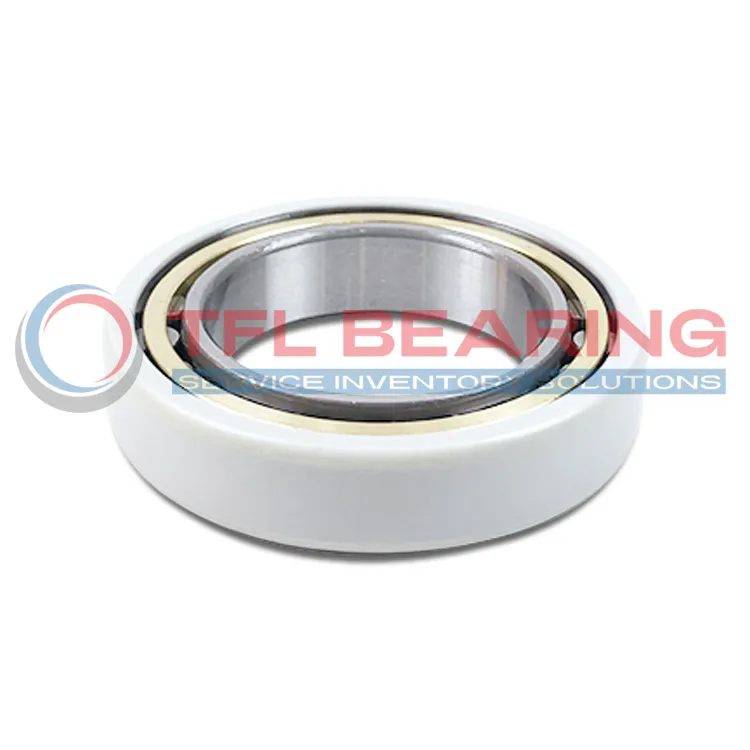

The SKF INSOCOAT cylindrical roller bearing is a medium-sized unit measuring 85mm by 180mm by 41mm, featuring a robust construction. It has an insulating coating on its outer ring to protect against electrical damage.
This bearing supports substantial radial loads, with a dynamic load rating of 340 kN, and can operate at speeds up to 4000 RPM. Its C3 internal clearance allows for thermal expansion in various operating conditions.
The machined brass cage enhances durability and guides the rollers effectively. The insulation can withstand voltages from 1000 to 3000 VDC, preventing current passage and potential damage.
Ideal for electric motors or generators, it prevents bearing fluting from stray currents. Weighing 5.24 kg, it is compliant with RoHS and REACH standards for safe use.
"*" indicates required fields
How Does NU 317 ECM/C3VL0241 Bearing Resist Electrical Damage?
NU 317 ECM/C3VL0241 Bearing features an insulating coating on its outer ring, protecting against electrical currents that cause damage.
This coating provides breakdown voltage protection from 1000 to 3000 VDC, ensuring reliable operation in electrically hazardous environments.
With a minimum electrical resistance of 50 MΩ, it prevents current passage that could lead to premature failure.
The machined brass cage maintains precise roller alignment, contributing to consistent performance under heavy radial loads.
Common Applications of NU 317 ECM/C3VL0241 Bearing
NU 317 ECM/C3VL0241 Bearing works well in industrial equipment like large pumps and conveyor drives where electrical insulation prevents current damage.
Its brass cage handles high speeds smoothly, making it reliable for continuous operation in manufacturing plants.
Where Is NU 317 ECM/C3VL0241 Bearing Used?
You’ll find NU 317 ECM/C3VL0241 Bearing in automotive electric motors and transmission systems, where its insulation protects against stray currents.
The C3 clearance accommodates thermal expansion, which helps maintain performance in variable temperature conditions.
Ideal for Precision: NU 317 ECM/C3VL0241 Bearing
For medical imaging devices and lab equipment, NU 317 ECM/C3VL0241 Bearing offers stable rotation with minimal electrical interference.
The cylindrical roller design distributes loads evenly, supporting accurate positioning in sensitive instruments.
Automotive vs Aerospace: Applications of NU 317 ECM/C3VL0241 Bearing
In automotive applications, NU 317 ECM/C3VL0241 Bearing suits hybrid vehicle powertrains, while aerospace uses include auxiliary generators.
The coating withstands up to 3000 VDC, providing safety in electrically noisy environments across both sectors.
