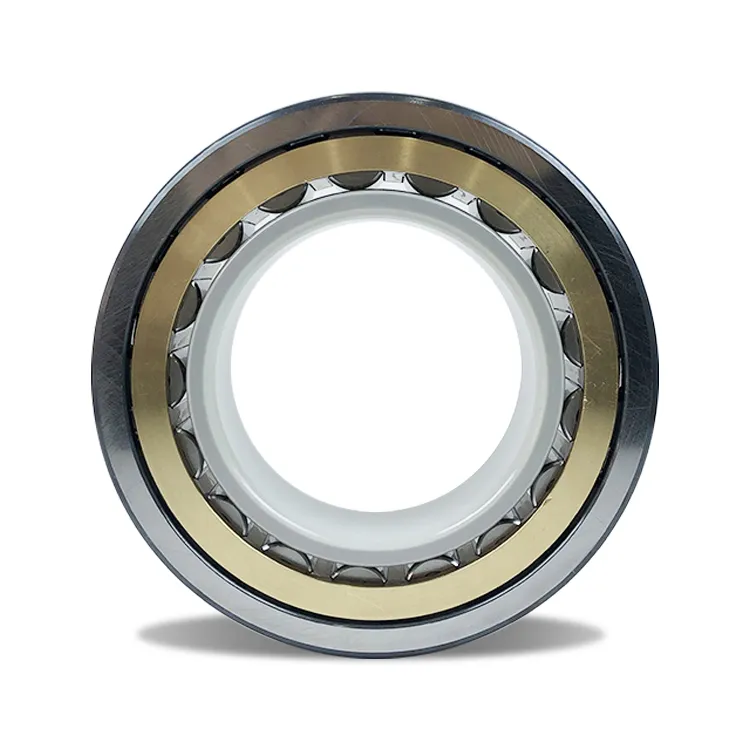

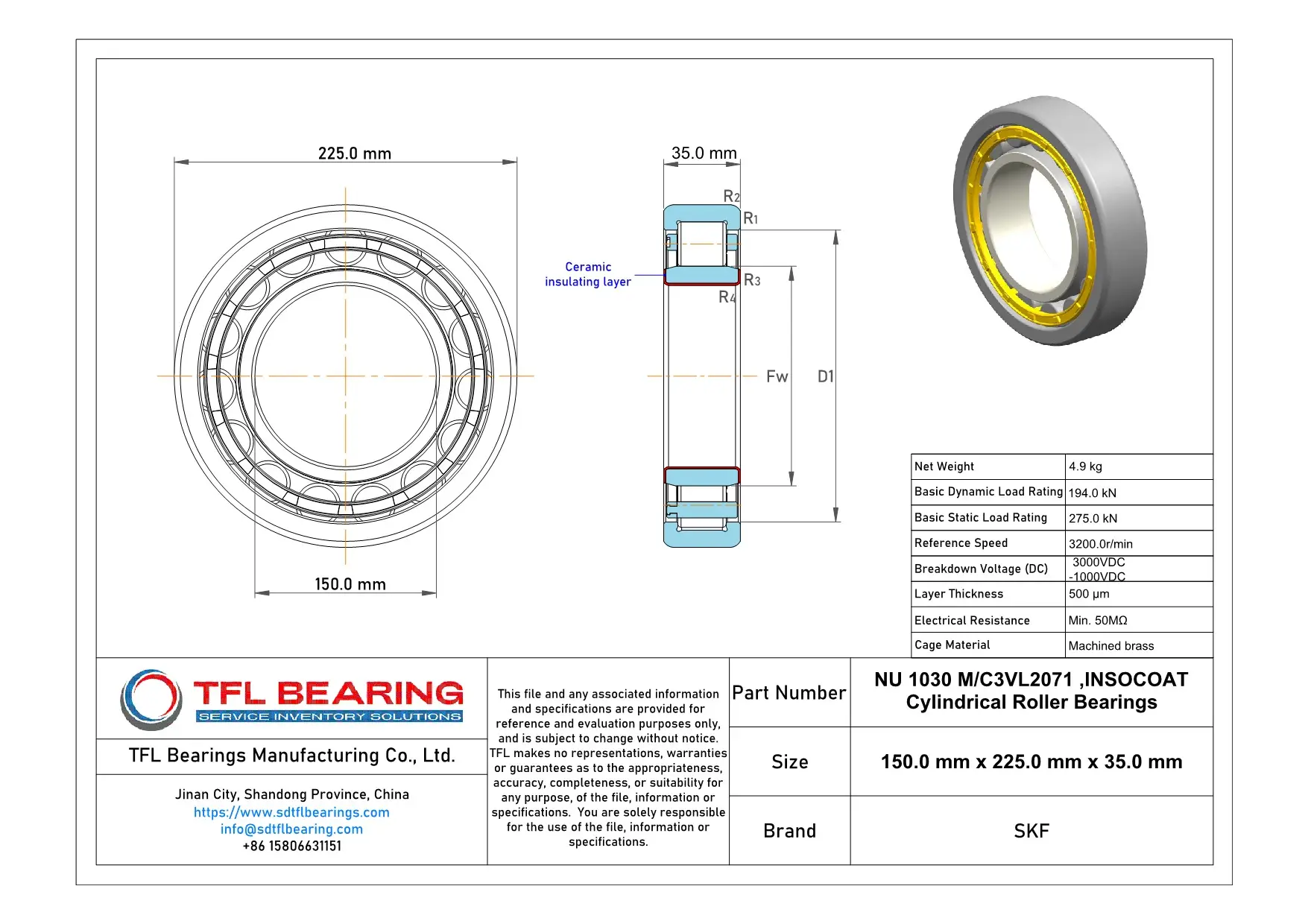

The SKF INSOCOAT cylindrical roller bearing is a medium-sized unit measuring 150mm by 225mm with a 35mm width, weighing 4.9kg.
It supports dynamic loads up to 194kN and static loads up to 275kN, operating smoothly at speeds up to 3200 RPM.
Its key feature is an insulating coating on the inner ring, providing protection against electrical currents with a breakdown voltage from 1000 to 3000 VDC.
This bearing is well-suited for electric motors and generators, helping to prevent damage from electrical erosion in industrial settings.
"*" indicates required fields
How Does NU 1030 M/C3VL2071 Bearing Resist Wear?
NU 1030 M/C3VL2071 Bearing features a machined brass cage that maintains proper roller alignment during operation.
This precision engineering reduces metal-to-metal contact, significantly minimising wear patterns.
The bearing’s C3 radial internal clearance accommodates thermal expansion in various operating conditions.
This design consideration helps maintain optimal performance while extending service intervals.
With a basic dynamic load rating of 194 kN, it delivers consistent performance under substantial loads.
How Does NU 1030 M/C3VL2071 Bearing Improve Performance?
NU 1030 M/C3VL2071 Bearing works well in industrial machinery like large pumps and conveyor systems, where its cylindrical roller design handles heavy radial loads smoothly. The brass cage helps maintain stability during continuous operation.
In automotive applications, NU 1030 M/C3VL2071 Bearing fits into electric motor systems, supporting components that need reliable rotation. Its insulation coating prevents electrical damage from stray currents.
For medical imaging devices, NU 1030 M/C3VL2071 Bearing’s precise dimensions ensure accurate positioning in scanners. The C3 clearance allows for thermal expansion during extended use.
In automation equipment, NU 1030 M/C3VL2071 Bearing assists robotic arms by providing consistent movement under varying loads. The coating also resists corrosion in clean environments.
Where Is NU 1030 M/C3VL2071 Bearing Used?
NU 1030 M/C3VL2071 Bearing appears in industrial fans and gearboxes, where its high dynamic load rating supports long service life. The insulation feature is useful in electrically noisy settings.
You’ll find NU 1030 M/C3VL2071 Bearing in electric vehicle drivetrains, helping manage power transmission efficiently. Its metric sizing aligns with standard automotive designs.
Medical laboratory instruments use NU 1030 M/C3VL2071 Bearing for smooth, low-vibration operation in centrifuges. The stainless components suit sterile conditions.
In 3D printers, NU 1030 M/C3VL2071 Bearing guides linear motion systems reliably. The machined brass cage reduces noise during high-speed printing.
Built for Heavy-Duty Use: NU 1030 M/C3VL2071 Bearing
NU 1030 M/C3VL2071 Bearing suits heavy machinery like crushers, where its cylindrical rollers distribute loads evenly. The C3 clearance accommodates shaft expansion under heat.
Automotive transmission systems benefit from NU 1030 M/C3VL2071 Bearing’s ability to handle radial forces in gear sets. Insulation protects against electrical pitting.
In medical dialysis machines, NU 1030 M/C3VL2071 Bearing offers quiet performance for precision fluid handling. Its coating resists moisture and chemicals.
Robotic welding cells use NU 1030 M/C3VL2071 Bearing in joint assemblies for consistent movement. The high reference speed supports rapid cycles.
Industrial vs Medical: Applications of NU 1030 M/C3VL2071 Bearing
In industrial settings, NU 1030 M/C3VL2071 Bearing runs in pumps and compressors, leveraging its high load capacity for demanding duties. The insulation reduces downtime from electrical faults.
For medical devices, NU 1030 M/C3VL2071 Bearing operates in MRI scanners, where electrical isolation is critical. Its precise tolerances aid in maintaining image accuracy.
Automotive electric power steering uses NU 1030 M/C3VL2071 Bearing to assist with smooth steering feedback. The brass cage withstands vibration well.
In automated packaging lines, NU 1030 M/C3VL2071 Bearing supports conveyor rollers, ensuring reliable product flow. The design allows for easy lubrication access.
