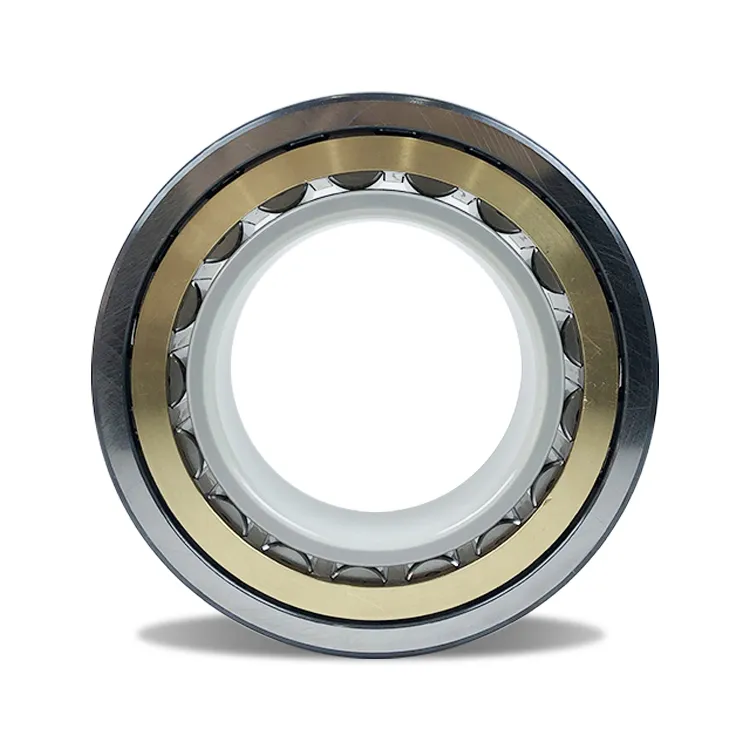

The SKF INSOCOAT cylindrical roller bearing is a compact unit measuring 120mm by 180mm by 28mm, with a robust construction. It features an insulating coating on the inner ring for electrical protection.
This bearing supports substantial loads, with a dynamic rating of 610 kN and a static rating of 620 kN. It operates smoothly at speeds up to 3200 revolutions per minute.
Its machined brass cage enhances durability and performance under demanding conditions. The C3 radial internal clearance allows for thermal expansion in various applications.
Ideal for electric motors or generators, it prevents damage from stray currents. Weighing 2.55 kg, it complies with RoHS and REACH standards for safe use.
"*" indicates required fields
How Is NU 1024 M/C3VL2071 Bearing Engineered for Reliability?
NU 1024 M/C3VL2071 Bearing features an insulation coating on its inner ring, protecting against electrical damage.
This coating provides a breakdown voltage of 1000-3000 VDC, ensuring safe operation in electrically hazardous environments.
The machined brass cage maintains precise roller alignment, reducing friction and wear during high-speed rotation.
With a basic dynamic load rating of 610 kN, it delivers consistent performance under substantial radial loads.
How Does NU 1024 M/C3VL2071 Bearing Improve Performance?
NU 1024 M/C3VL2071 Bearing works well in industrial machinery like large pumps and conveyor systems where electrical currents could cause damage. Its insulation coating protects against electrical erosion, extending service life in demanding conditions.
You’ll find NU 1024 M/C3VL2071 Bearing in electric vehicle motors and industrial generators where high speeds and electrical insulation are needed. The brass cage maintains stability at reference speeds up to 3200 rpm while preventing electrical arcing.
Medical imaging devices benefit from NU 1024 M/C3VL2071 Bearing’s consistent performance and electrical insulation properties. The C3 clearance accommodates thermal expansion in precision equipment that requires reliable operation.
Where Is NU 1024 M/C3VL2071 Bearing Used?
NU 1024 M/C3VL2071 Bearing fits perfectly in automation equipment and robotic arms where electrical insulation prevents damage from stray currents. Its cylindrical roller design handles moderate radial loads while maintaining precise positioning.
Industrial fans and blowers use NU 1024 M/C3VL2071 Bearing for its ability to operate at higher speeds without electrical damage. The insulation coating withstands voltages up to 3000 VDC, making it suitable for variable frequency drive applications.
In printing machinery and paper processing equipment, NU 1024 M/C3VL2071 Bearing provides reliable performance with its machined brass cage and optimized internal clearance. The bearing’s construction helps maintain accuracy in continuous operation environments.
Built for Heavy-Duty Use: NU 1024 M/C3VL2071 Bearing
NU 1024 M/C3VL2071 Bearing serves well in industrial gearboxes and power transmission systems where electrical insulation is necessary. The bearing handles dynamic loads up to 610 kN while protecting against electrical current passage.
Electric motor applications benefit from NU 1024 M/C3VL2071 Bearing’s insulation properties, particularly in industries using variable speed drives. Its construction prevents electrical fluting that can shorten bearing life in such environments.
For compressor units and industrial pumps, NU 1024 M/C3VL2071 Bearing offers both load capacity and electrical protection. The C3 radial clearance accommodates thermal expansion in equipment that experiences temperature variations during operation.
